To connect the digital probe
28
To connect the digital probe
The Keysight Mixed- Signal Oscilloscopes (MSOs) are the only oscilloscopes to fully
integrate 16 digital timing channels with the analog oscilloscope channels.
1
Push the small connector end of the digital cable with the tab key facing left
into the digital connector.
2 Tighten both thumb screws.

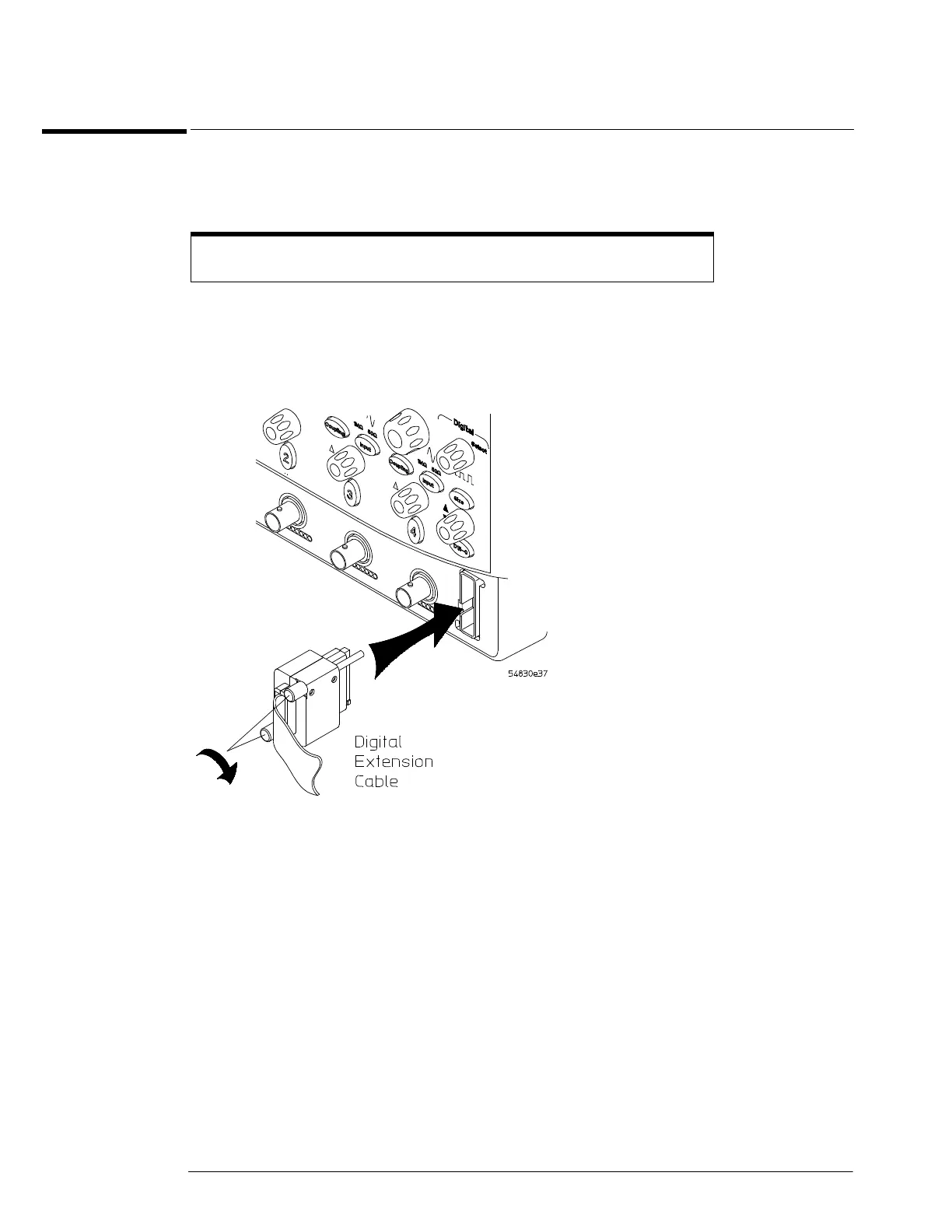

Figure 2-9
Connecting the Digital Cable to the Oscilloscope
The digital clip lead marked clk (clock) is unused. All the other digital clip leads are
used for the digital channels.
