14 Keysight Infiniium S-Series Oscilloscopes User’s Guide
1 Setting Up the Oscilloscope
Positioning for Proper Airflow
Position the oscilloscope where it will have sufficient clearance for airflow around
the back and sides.

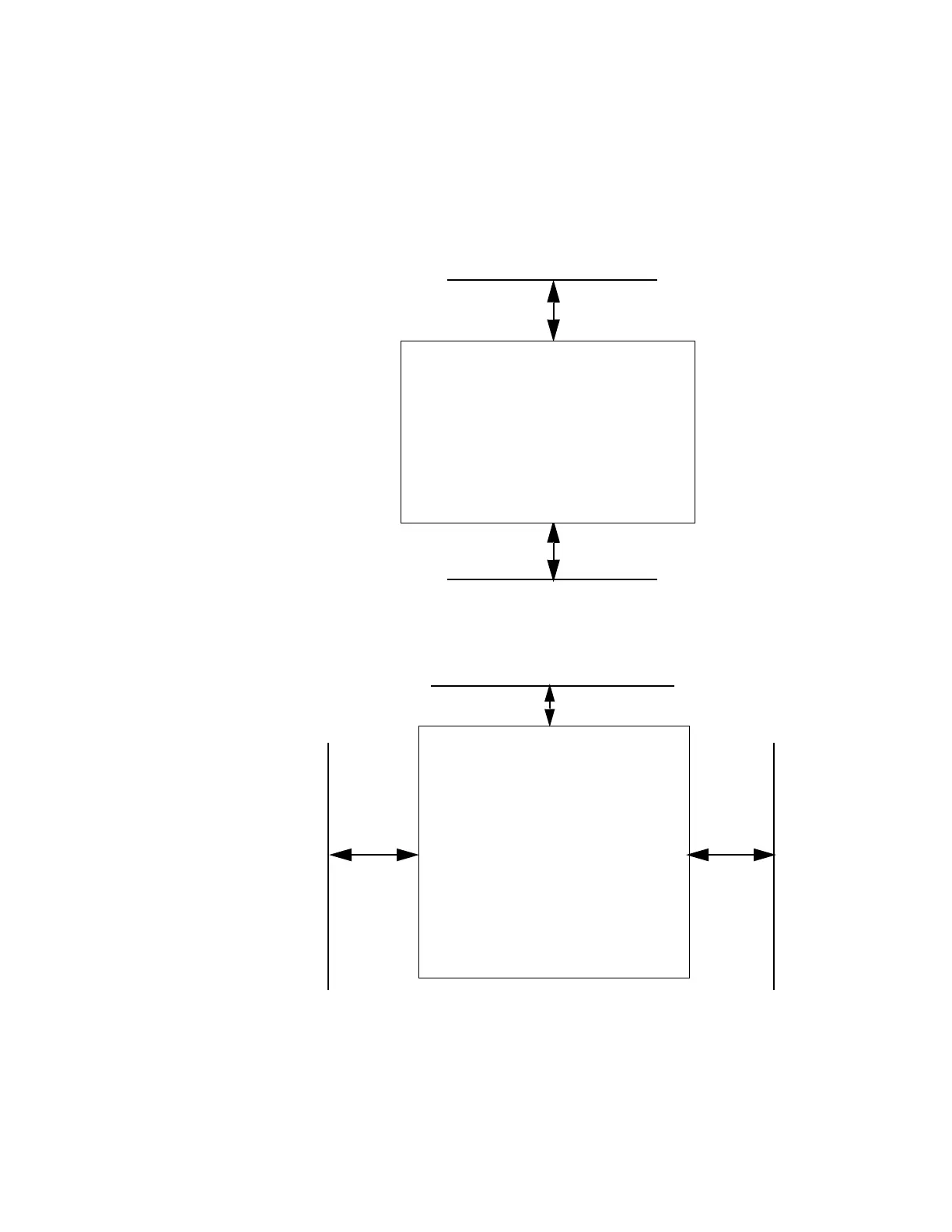

Figure 1 Positioning the S-Series oscilloscope with sufficient clearance
Minimum 0 mm
Minimum 0 mm
Front panel of oscilloscope
Minimum 25.4 mm
Minimum 25.4 mm
Minimum 75 mm
Top View
Rear Panel
Minimum bottom clearance: No intrusion into the
space under the oscilloscope as defined by the
feet. Feet must rest on hard surface.
