Using the Oscilloscope 2
Keysight Infiniium S-Series Oscilloscopes User’s Guide 37
Adjusting the Vertical Settings
Use the vertical controls to set the vertical scaling and vertical offset for each
analog channel, and to turn the display on or off for a specific channel.
Turning an analog channel on or off
To turn an analog channel on or off, press the channel number key on the front
panel or click the Add Waveforms button . When you turn off a channel, the
current vertical scale and offset fields for that channel disappear.

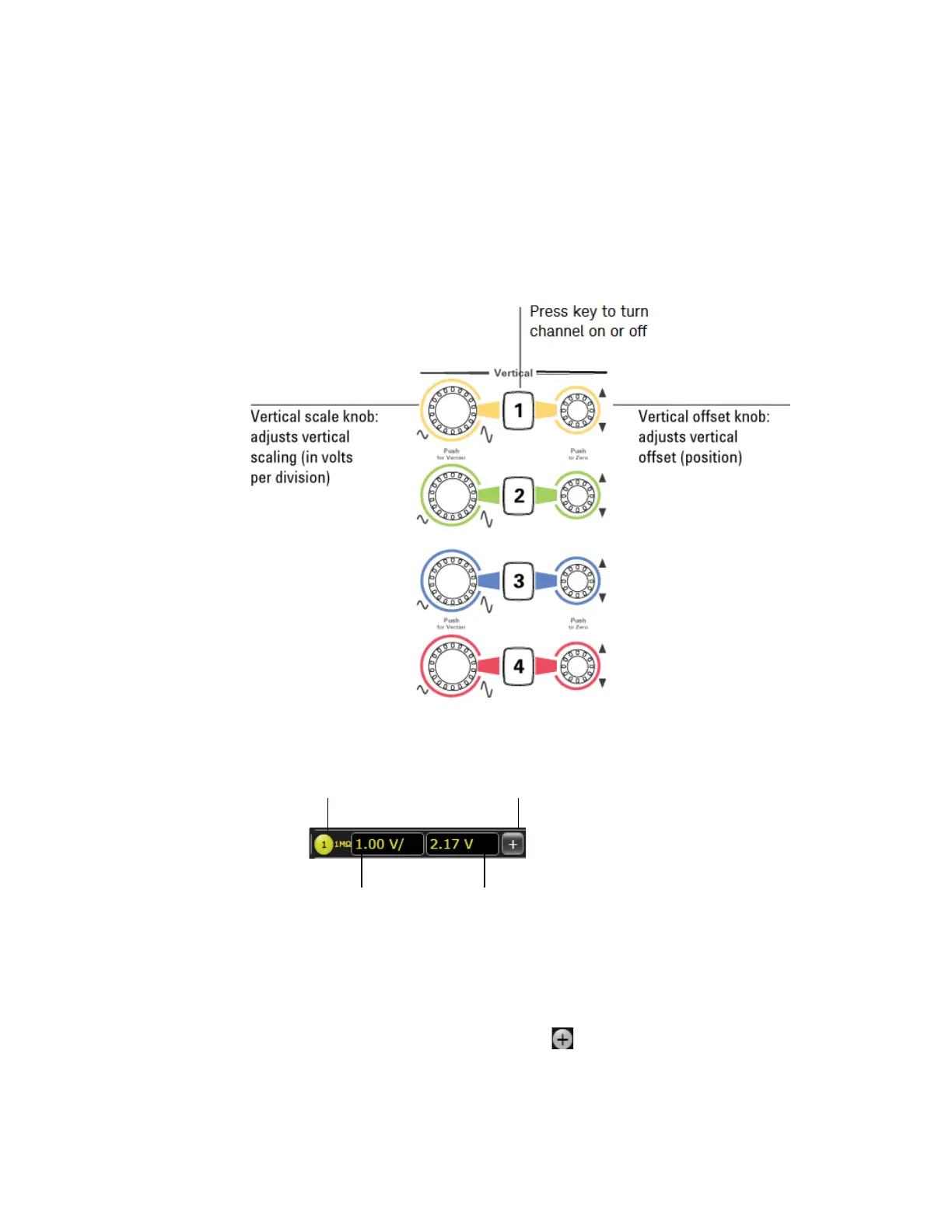

Figure 14 Channel keys and vertical knobs
Figure 15 User interface vertical controls
Open the Channel
dialog box
Set vertical
scale
Set vertical
offset
Turn waveforms
on/off
