Keysight Infiniium MSOS404A User Manual

32 Keysight Infiniium S-Series Oscilloscopes User’s Guide
2 Using the Oscilloscope
Learning the Front Panel Controls (Keys and Knobs)
The Infiniium S-Series oscilloscope front panel controls provide direct access to
the functions needed to perform the most common measurements. Knobs and
keys let you directly set vertical and horizontal parameters. You can see the
oscilloscope’s configuration at a glance.
The oscilloscope uses color consistently throughout the front panel and user
interface. For example, the color of the knob for channel 1 is the same color as the
waveform for channel 1. All configuration items and values related to channel 1 are
displayed in the same color.

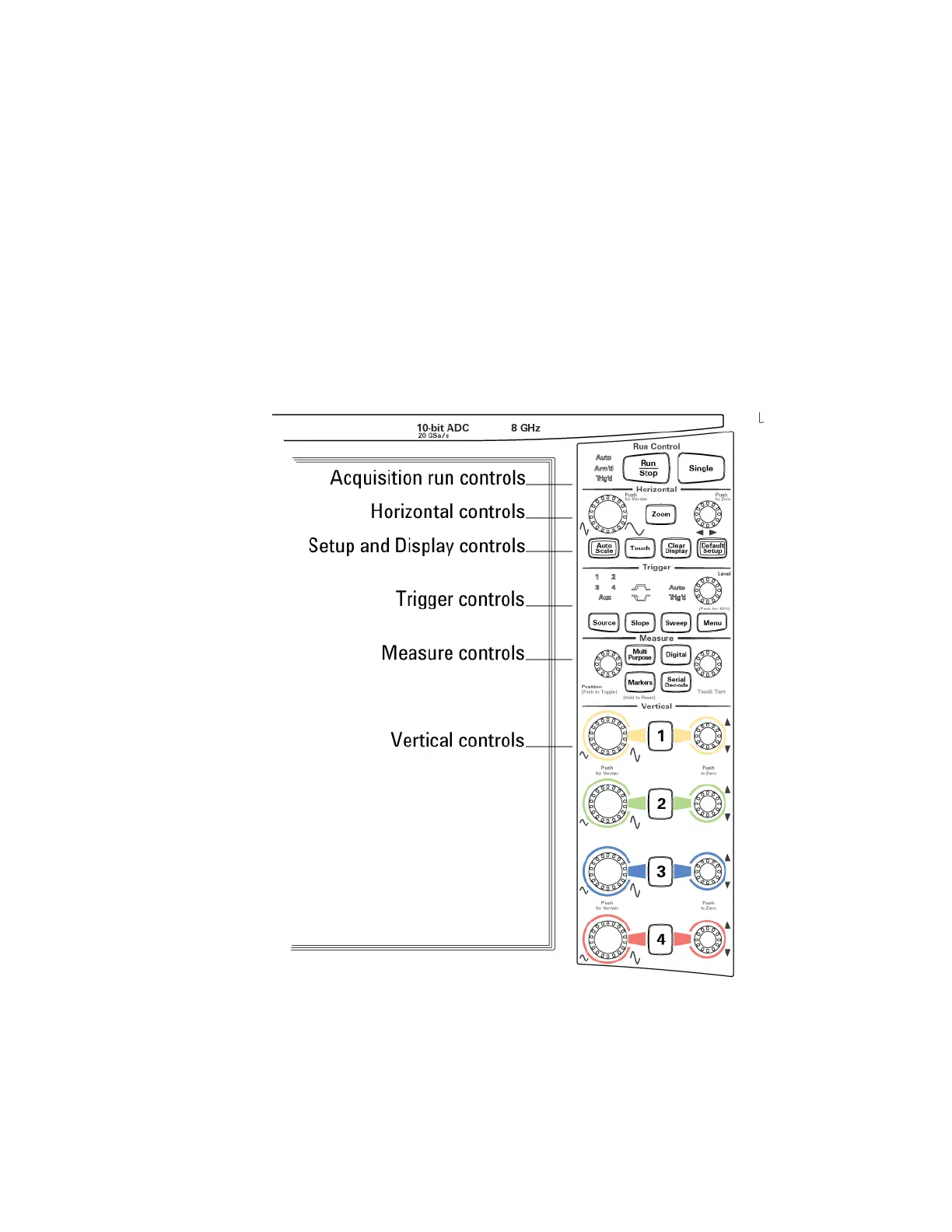

Figure 10 Front panel controls
