18 Keysight Infiniium S-Series Oscilloscopes User’s Guide
1 Setting Up the Oscilloscope
Tilting the Oscilloscope for Easier Viewing
Tabs under the front feet of the oscilloscope can be flipped out to tilt the
oscilloscope for easier viewing.

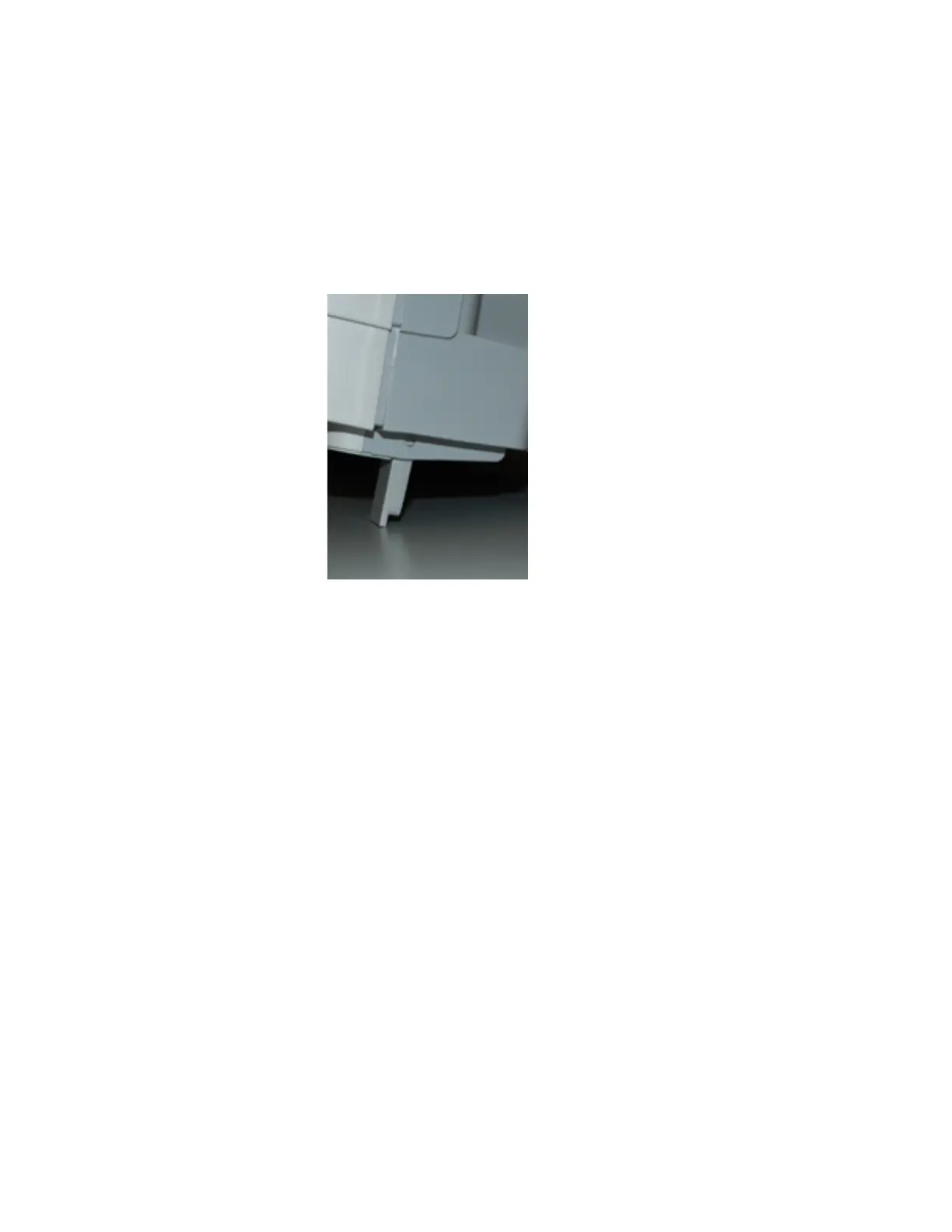

Figure 4 Latching the front feet
