Using the Oscilloscope 2
Keysight Infiniium S-Series Oscilloscopes User’s Guide 27
Learning the Side Panel Connectors
The Infiniium S-Series oscilloscope’s right side panel has the motherboard I/O
connectors, reference clock synchronization connectors, and BNC connectors.
Motherboard I/O
The motherboard provides these inputs/outputs/ports in the oscilloscope: four
USB ports for peripherals, an external monitor connector, a USB III device port (for
remote control of the oscilloscope from a PC), a LAN port, and speaker and
microphone connectors.

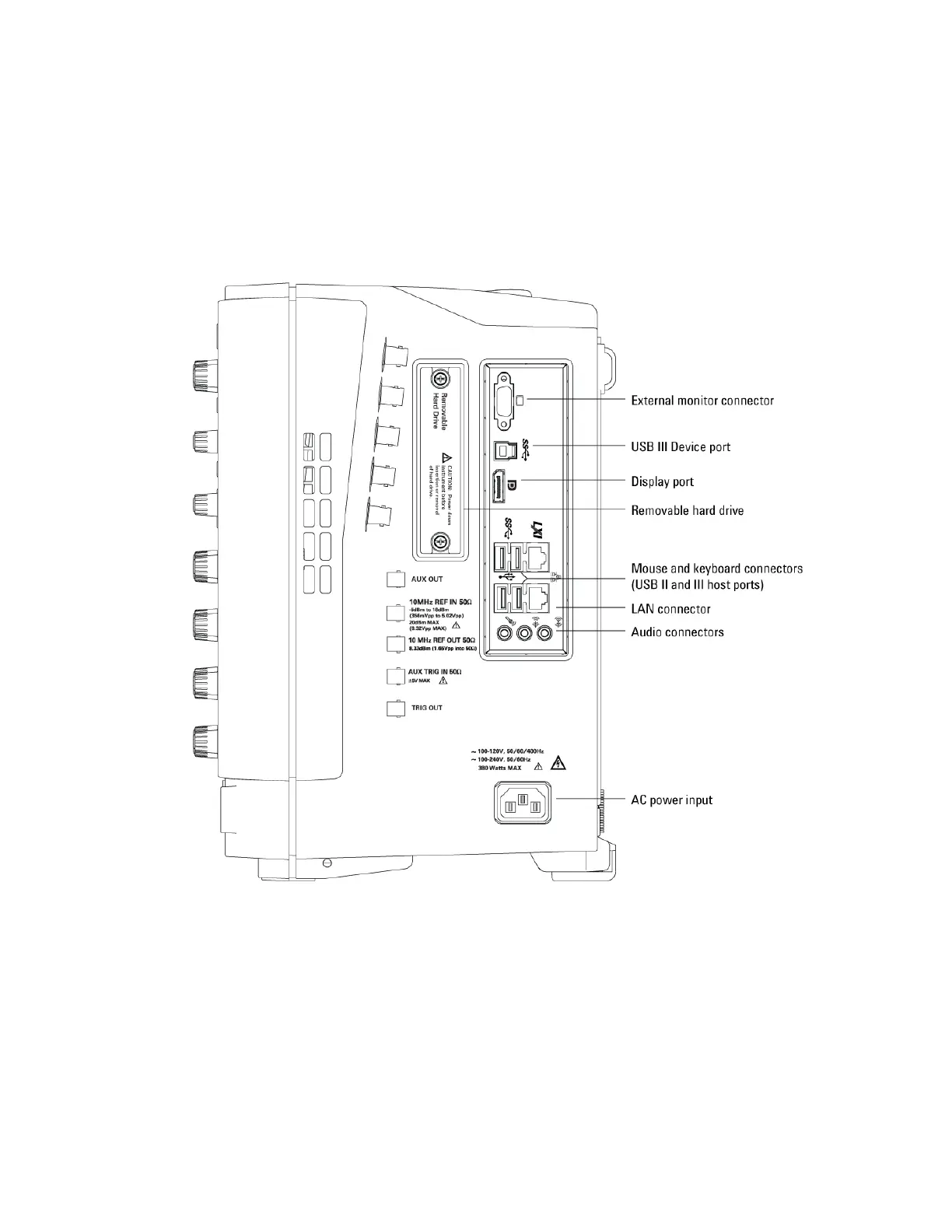

Figure 8 Infiniium S-Series oscilloscope side panel I/O
