Acquisition Control 13

Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 143

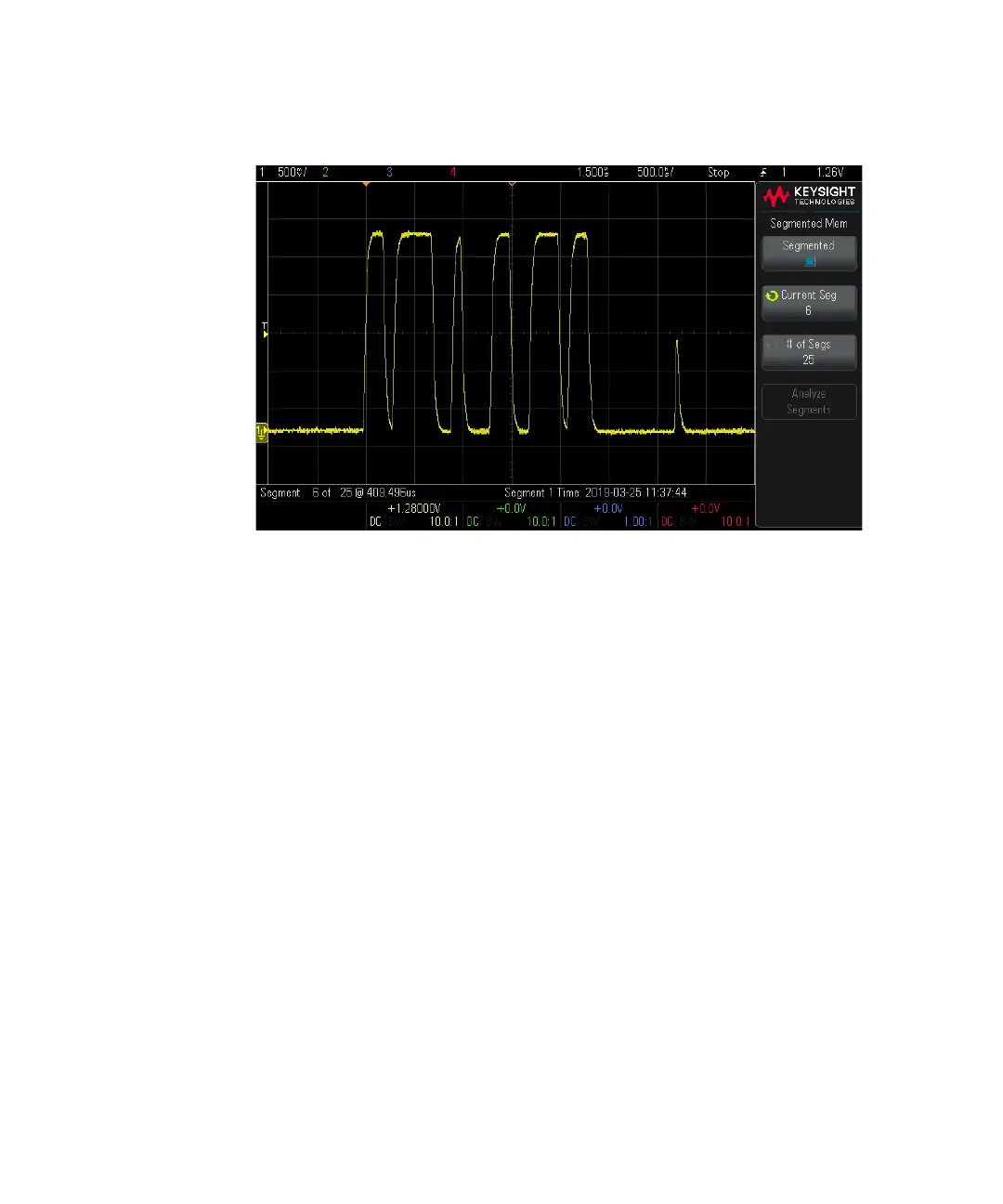

Saving Data from Segmented Memory

You can save either the currently displayed segment (Save Segment - Current), or all

segments (Save Segment - All) in the following data formats: CSV, ASCII XY, and

BIN.

Be sure to set the Length control to capture enough points to accurately represent

the captured data. When the oscilloscope is busy saving multiple segments,

progress is displayed in the upper right area of the display.

For more information, see "To save CSV, ASCII XY, or BIN data files" on page 218.
