Keysight InfiniiVision 1200 X Series User Manual

206 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide
19 Waveform Generator
Pressing a signal parameter softkey can open a menu for selecting the type of
adjustment. For example, you can choose to enter amplitude and offset values,
or you can choose to enter high-level and low-level values. Or, you can choose
to enter frequency values or period values. Keep pressing the softkey to select
the type of adjustment. Turn the Entry knob to adjust the value.
Notice that you can select between coarse and fine adjustments for frequency,
period, and width. Also, pushing the Entry knob is a quick way to toggle
between coarse and fine adjustments.

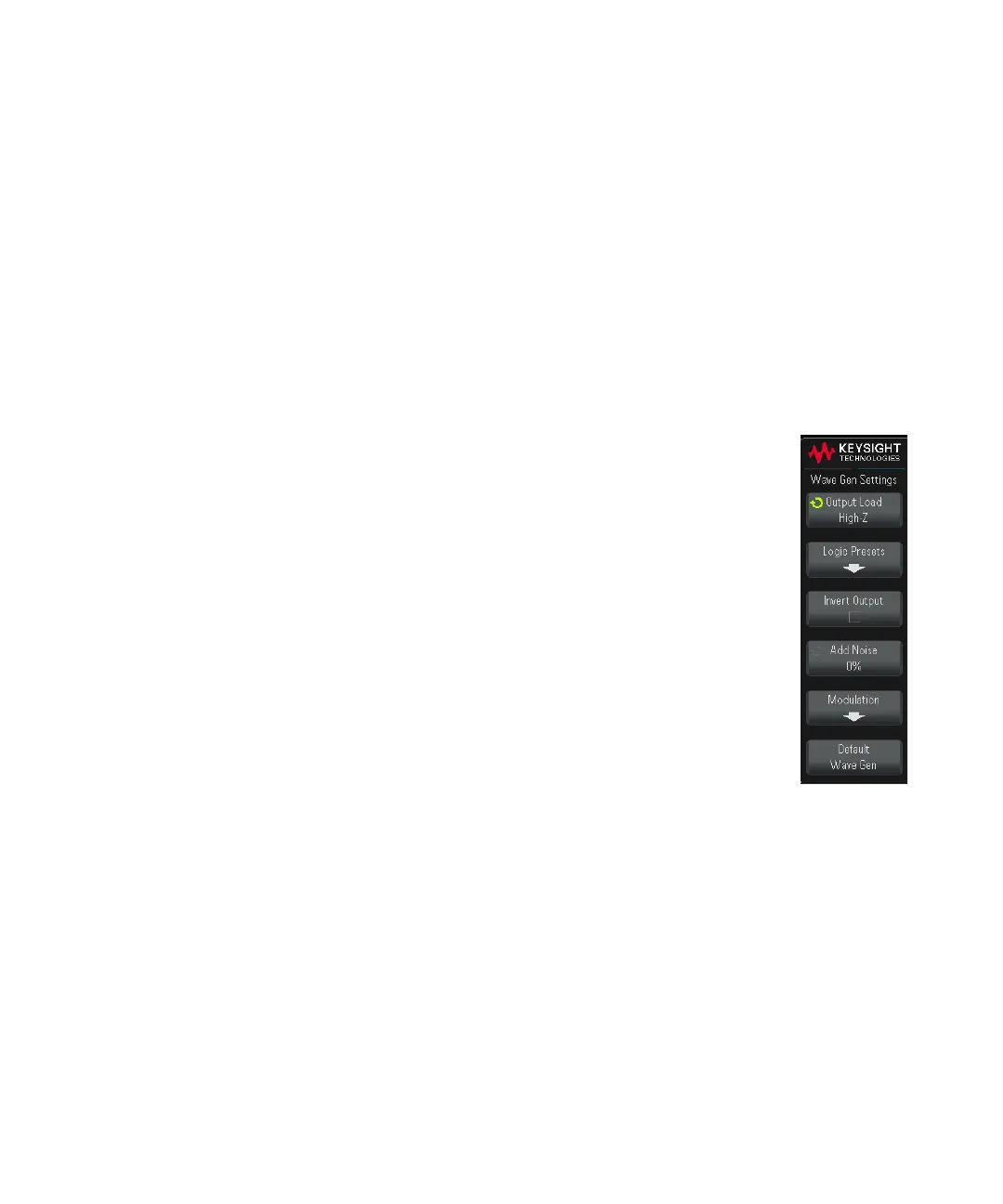

The Settings softkey opens the Wave Gen Settings menu which lets you make
other settings related to the waveform generator.
See:
• "To specify the expected output load" on page 206
• "To use waveform generator logic presets" on page 207
• "To restore waveform generator defaults" on page 213
To specify the expected output load
1 If the Wave Gen menu is not currently displayed on the oscilloscope's softkeys,
press the [Wave Gen] key.
2 In the Wave Gen menu, press the Settings softkey.
3 In the Wave Gen Settings menu, press the Out Load softkey and turn the Entry
knob to select:
• 50 Ω

Keysight InfiniiVision 1200 X Series Specifications

General

Sample Rate	1 GSa/s
Channels	2 or 4
Vertical Resolution	8 bits
Math Functions	Add, Subtract, Multiply, Divide, FFT
Time Base Range	5 ns/div to 50 s/div
Interface	USB, LAN
Power Supply	100-240 VAC, 50/60 Hz
Memory Depth	1 Mpts
Display	8-inch WVGA (800 x 480) LCD
Input Impedance	1 MΩ ± 1%
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse Width, Video
Waveform Update Rate	up to 100, 000 waveforms/sec
Connectivity	USB 2.0, LAN
