174 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide

15 Measurements

Maximum units are in dB and X at Max Y units are in Hertz for FFT.

Count Measurements

• "Positive Pulse Count" on page 174

• "Negative Pulse Count" on page 174

• "Rising Edge Count" on page 175

• "Falling Edges Count" on page 175

Positive Pulse Count

The Positive Pulse Count measurement is a pulse count for the selected waveform

source.

This measurement is available for analog channels.

Negative Pulse Count

The Negative Pulse Count measurement is a pulse count for the selected waveform

source.

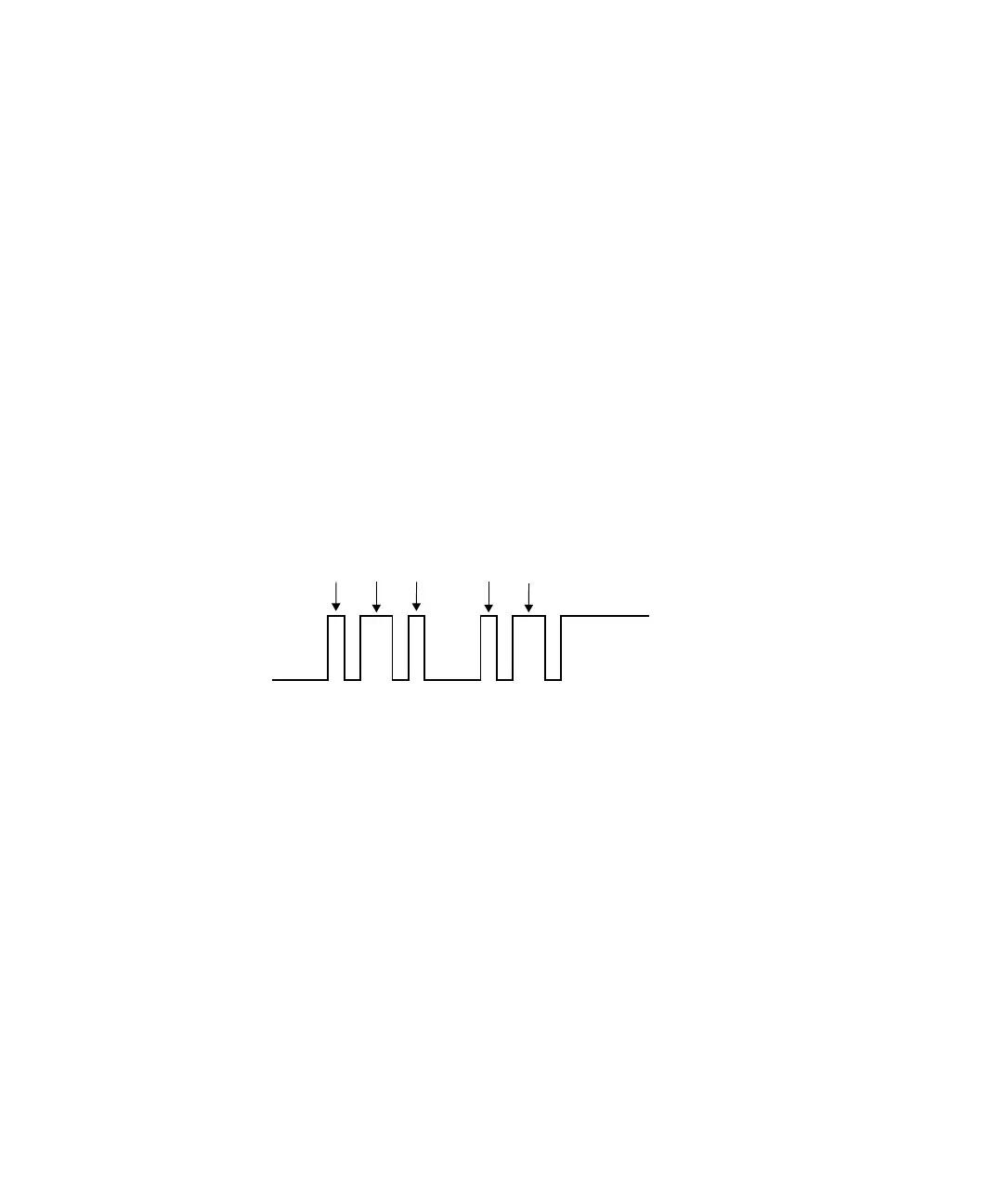

Positive pulse count
