Web Interface 23

Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 251

Control Instrument

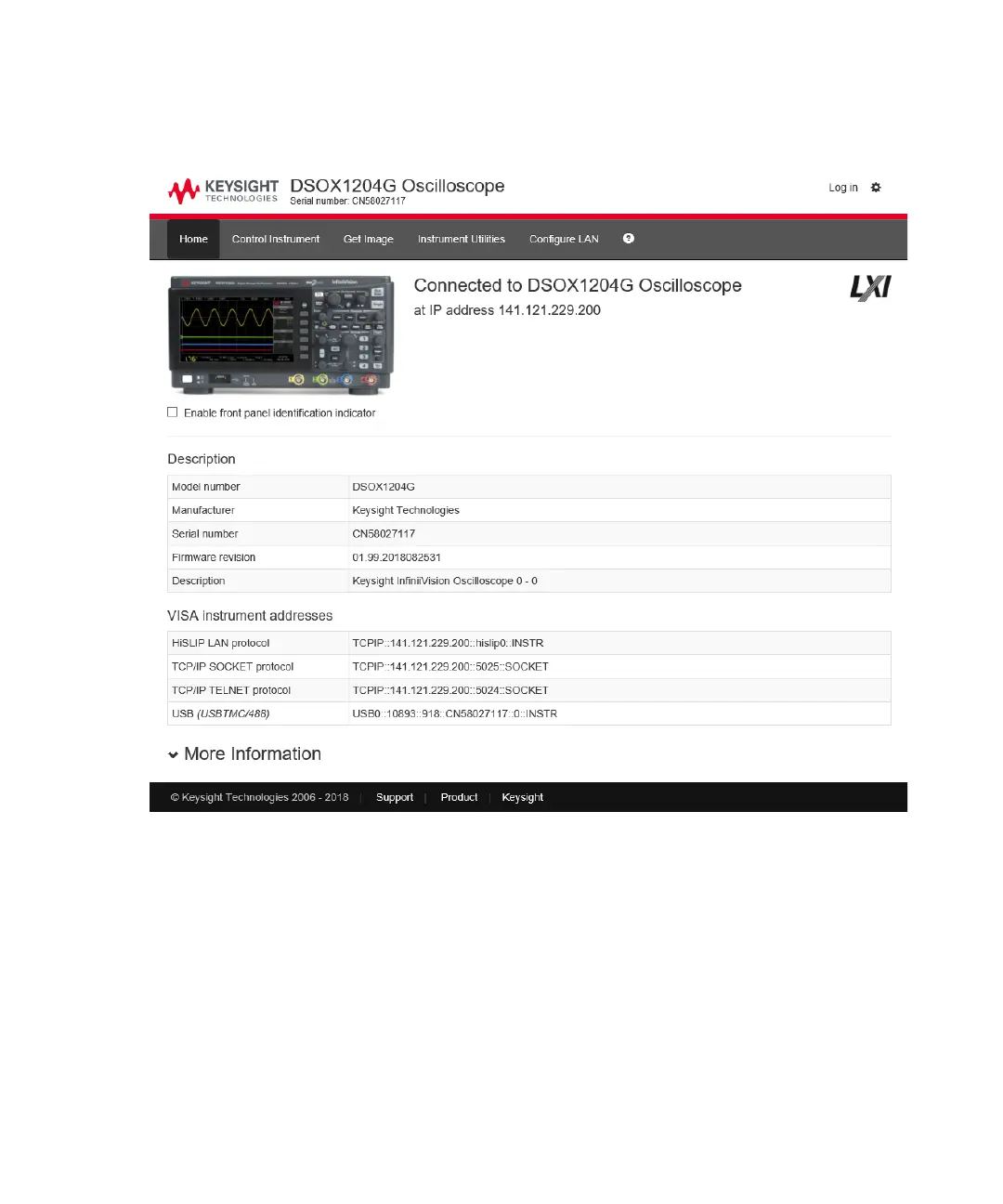

The web interface's Browser Web Control page gives you access to:

• The Browser-Based Remote Front Panel (see "Remote Front Panel" on

page 252).

• The SCPI Command window applet for Remote Programming (see "Remote

Programming via the Web Interface" on page 252).
