242 Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide
22 Utility Settings

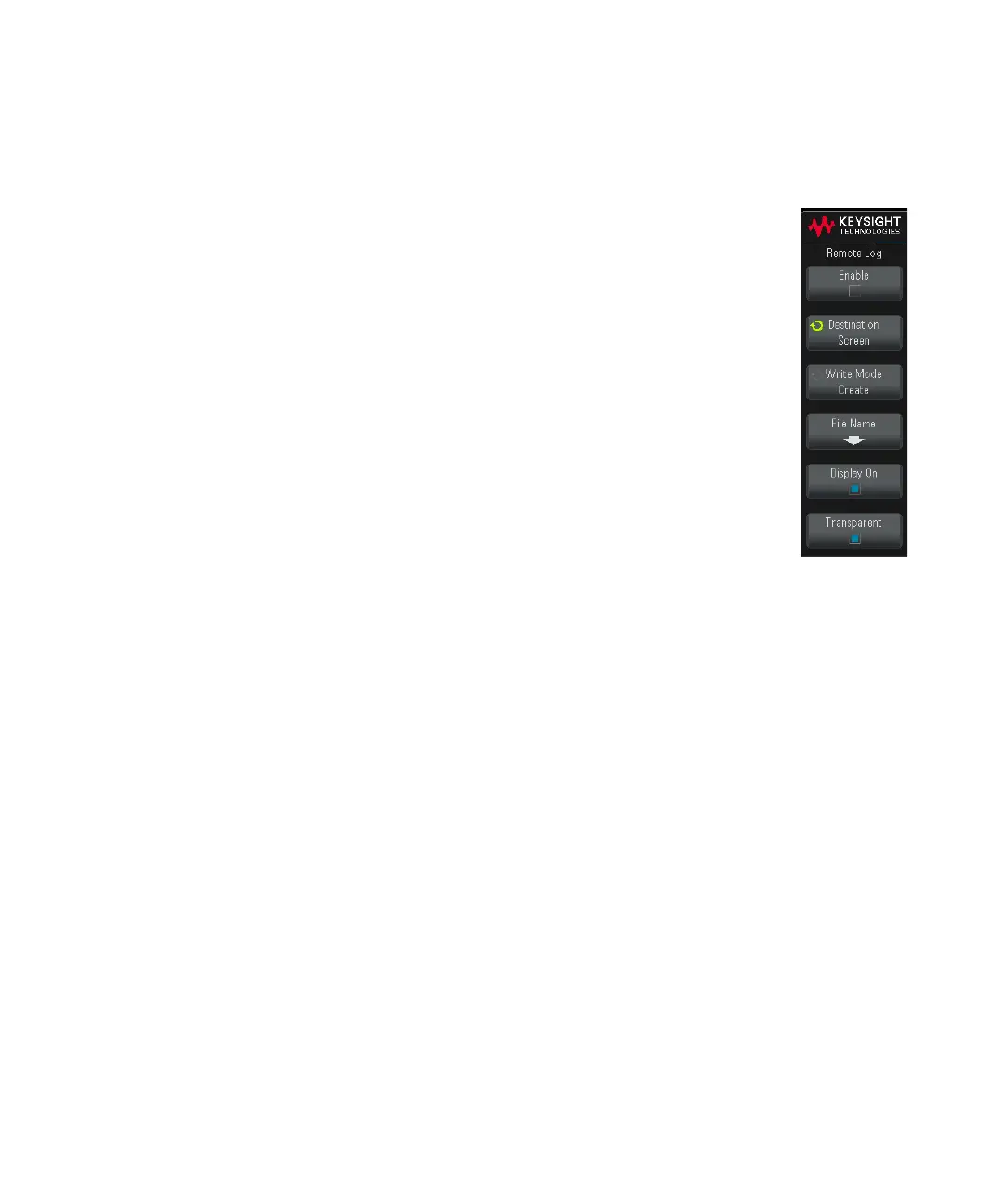

1 Press [Utility] > Options > Remote Log to open the Remote Log menu:
2 Press Enable to enable or disable the remote command
logging feature.
When remote logging is enabled, additional debug
information can be included in the returned error string. If the
error is detected by the SCPI command parser, such as a
header error or other syntax error, the extra debug
information is generated and included. But if the error is
detected by the oscilloscope system, such as when an
out-of-range value is sent, then no extra debug information
is included.
3 Press Destination to select whether remote commands are
logged to a text file (on a connected USB storage device),
logged to the screen, or both.
4 Press Write Mode to specify whether logged commands will
be created in a new list or appended to existing logged
commands.
Your selection takes effect when remote command logging is enabled.
This option applies to both screen and file logging.
5 Press File Name to open the Log Filename menu where you can specify the name
of the file (on the USB storage device) to which remote commands are logged.
6 Press Display On to enable or disable the screen display of logged remote
commands and their return values (if applicable).
7 Press Transparent to disable or enable a transparent background for the remote
command logging screen display.
Enable to make the background transparent. This lets you view underlying
waveforms.
Disable for a solid background which makes the logged remote commands
easier to read.
