Math Waveforms 6

Keysight InfiniiVision 1200 X-Series and EDUX1052A/G Oscilloscopes User's Guide 75

The low-pass filter is a 4th order Bessel-Thompson filter.

Use the Bandwidth softkey to select the filter's -3 dB cutoff frequency.

NOTE

The ratio of the input signal's Nyquist frequency and the selected -3 dB cutoff frequency

affects how many points are available in the output, and under some circumstances, there are

no points in the output waveform.

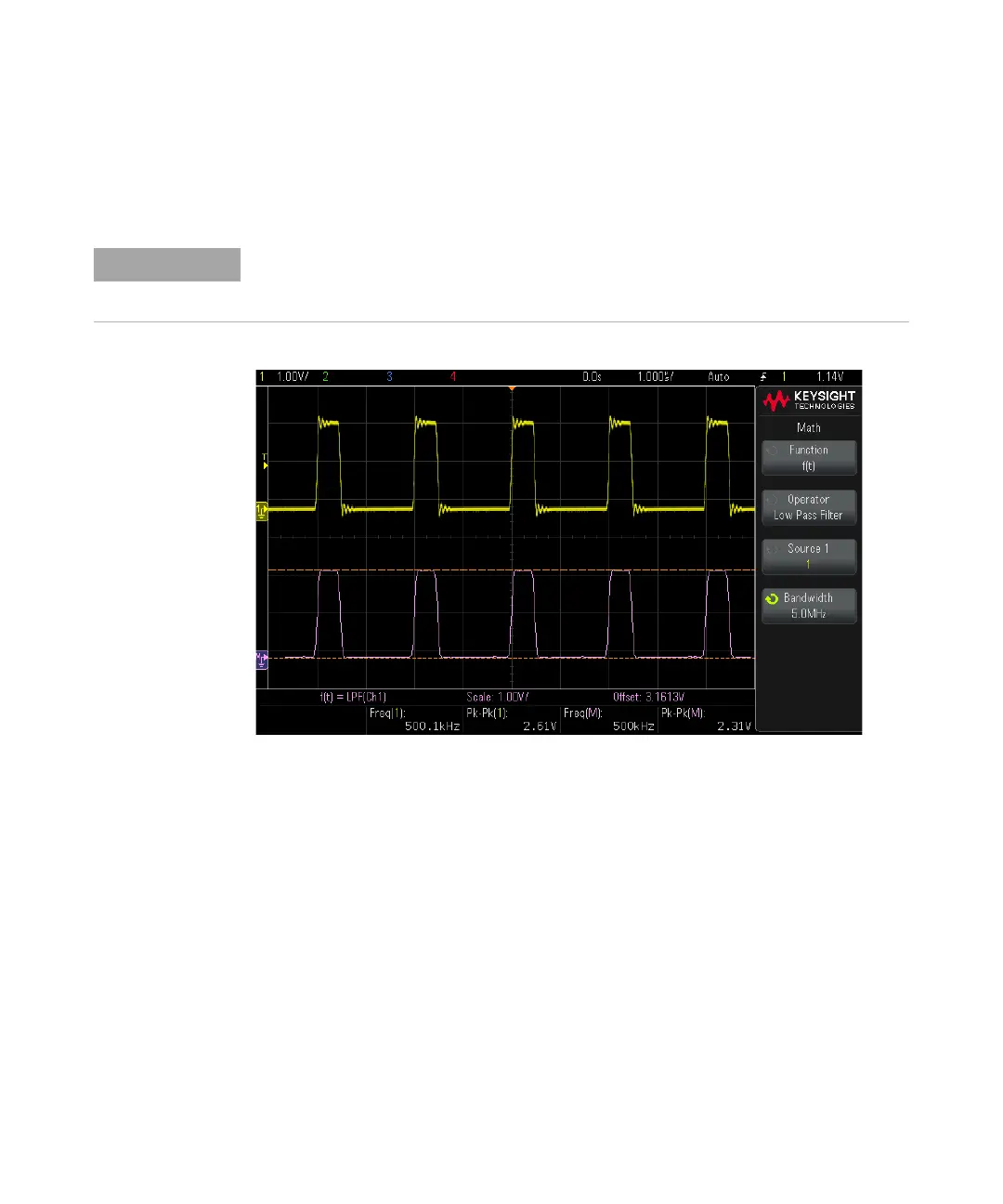

Figure 12 Example of Low Pass Filter
