M8100 Series Arbitrary Waveform Generators Getting Started Guide 45
Basic Setup for M8100A 2
Connecting M8008A Clock Generator to M8199A AWG Module
Following are the possible ways to connect a M8008A clock source to the
M8199A AWG module(s):
Case 1 Connecting M8008A clock module to M8199A AWG module
In this case, make the connections as described below:
1 Connect the 1.85 mm, 45 cm M8199A-810 replacement channel clock
cable (M8199-61624) from Sample Clk Out of M8008A to Clk In of
M8199A.
2 Connect the 3.5 mm, 50 cm M8199A-811 sync cable (M8199-61620)
from Sync Out of M8008A to Sync In of M8199A.
Figure 17 shows how to connect the M8008A clock generator module to
the M8199A AWG module:

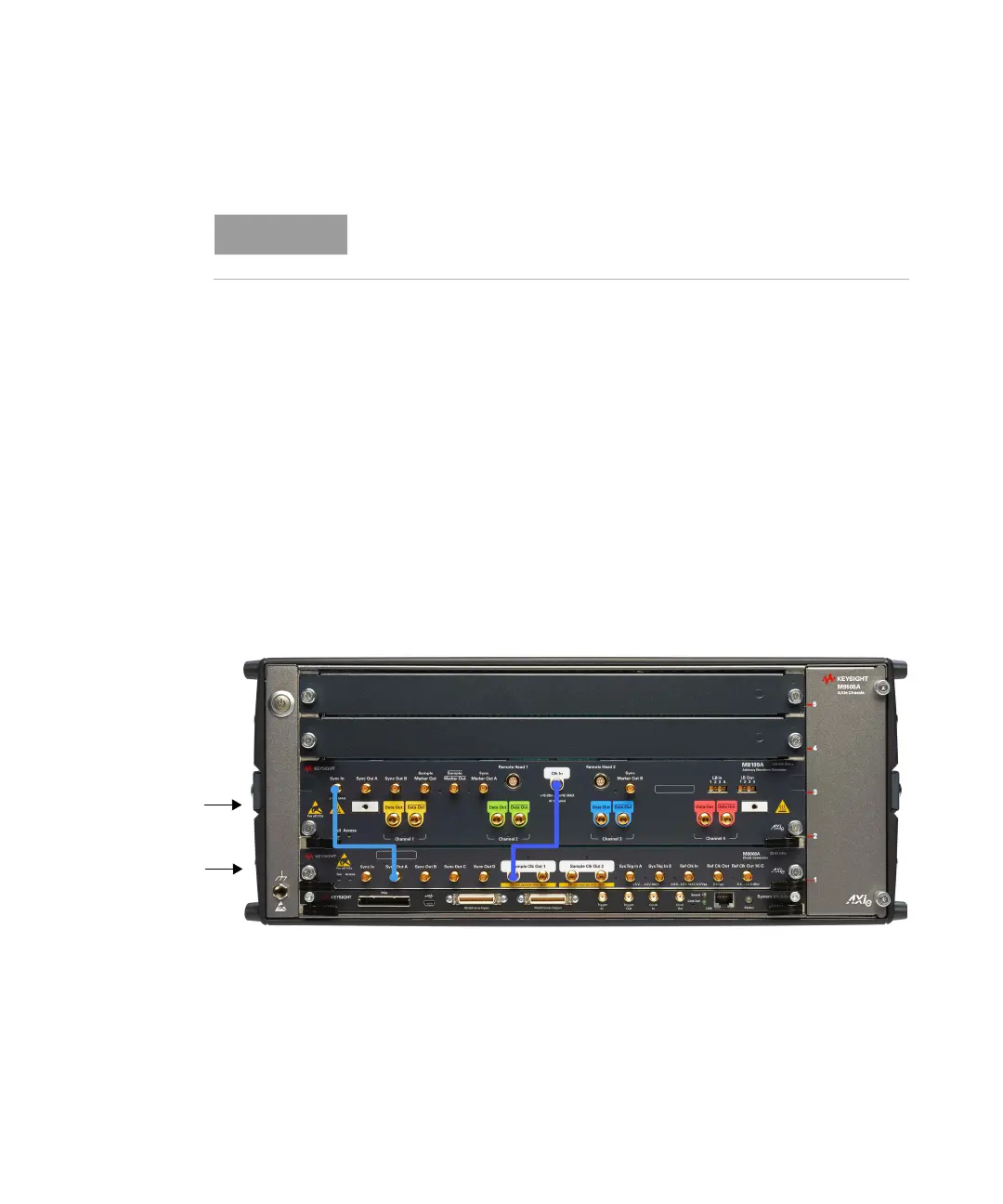

Figure 17 Connecting M8008A clock generator to M8199A AWG module
The unused output should be disabled on the M8070B software or
terminated with 50 Ohms on the module hardware.
