48 M8100 Series Arbitrary Waveform Generators Getting Started Guide
2 Basic Setup for M8100A
Case 4 Connecting M8008A clock module to four M8199A AWG modules
In this case, a M8008A clock module, four M8199A AWG modules, two
M9505A AXIe chassis and the following cables are required:
• 3.5 mm, 50 cm M8199A-811 customer orderable sync cable
(M8199-61620)
• 1.85 mm, 45 cm M8199A-810 replacement channel clock cable
(M8199-61624)
Make the connections as described below:
1 Connect the M8008A Clock Generator Sync Out port with all the four
M8199A AWG Sync In ports using sync cable (blue cable).
2 Connect the M8008A Clock Generator Sample Clock Out port with all
the four M8199A AWG Clock In ports using clock cable (red cable).

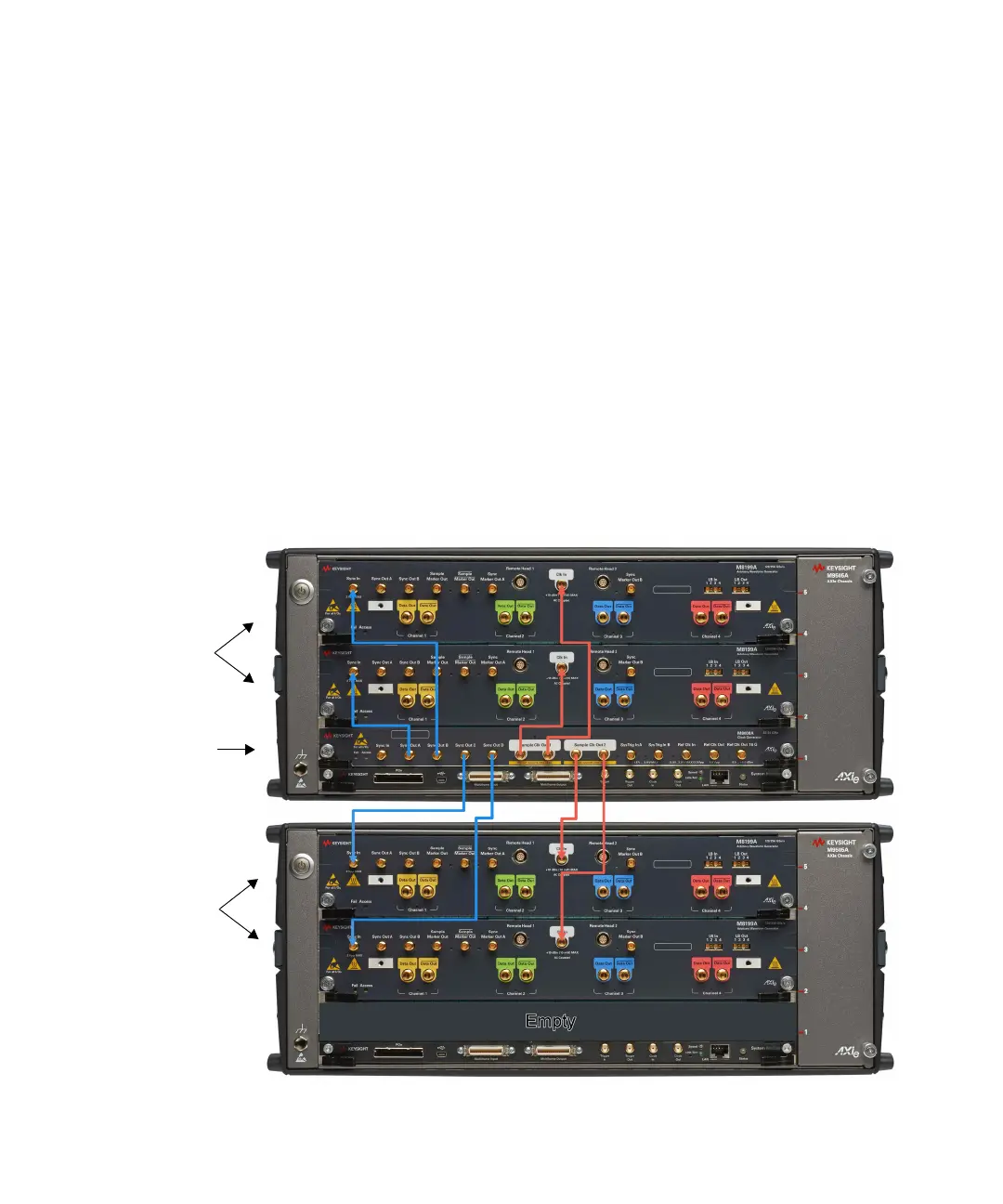

Figure 19 shows how to connect M8008A clock generator module to the
four M8199A AWG modules:
