30 N5186A MXG and X-Series SA Measurement Guide
Basic Measurements
Making Measurements

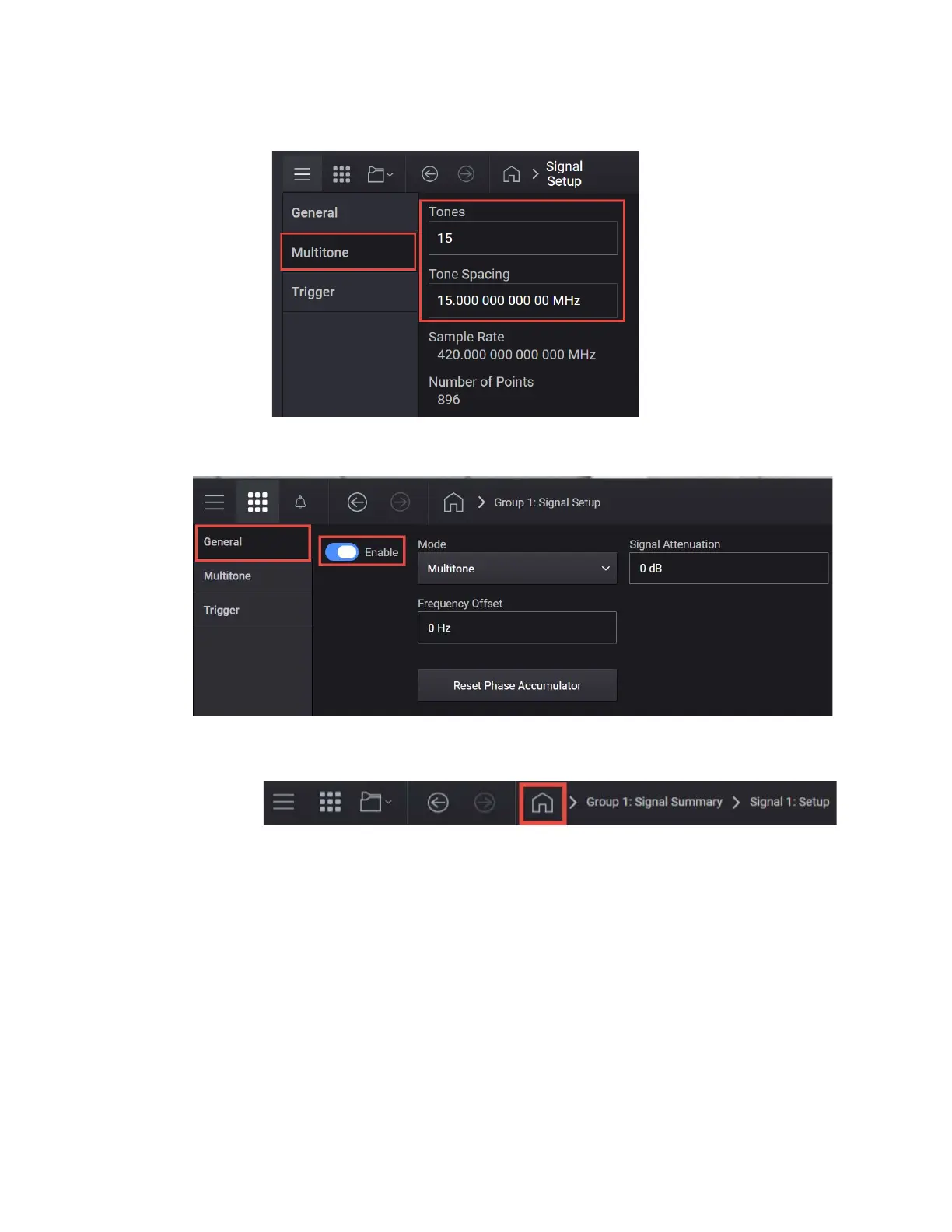

b. Set Tone Spacing to 15 MHz.
6. Select the General tab > Enable.
7. Close the Vector Modulation Signal Setup selecting the Home icon at the
top of the display.
8. Ensure that RF Out is On.
On the Signal Analyzer:
1. Select Mode Preset to set Spectrum Analyzer mode to a known state.
2. Select Frequency and set Center Frequency to 6 GHz and Span to
250 MHz.
3. Select BW and set Res BW to 30 kHz.
Observe the 15 tones.
To Next Page
