N5186A MXG and X-Series SA Measurement Guide 25
Basic Measurements
Making Measurements
Setting Up Phase Modulation
Follow the steps below for PM analog modulation using the internal I/Q
modulation source.
Using the graphical user interface
On the MXG:
1. Select Preset > Preset to set the instrument to a known state.
2. Set Frequency to 6 GHz and Amplitude to 0 dBm.

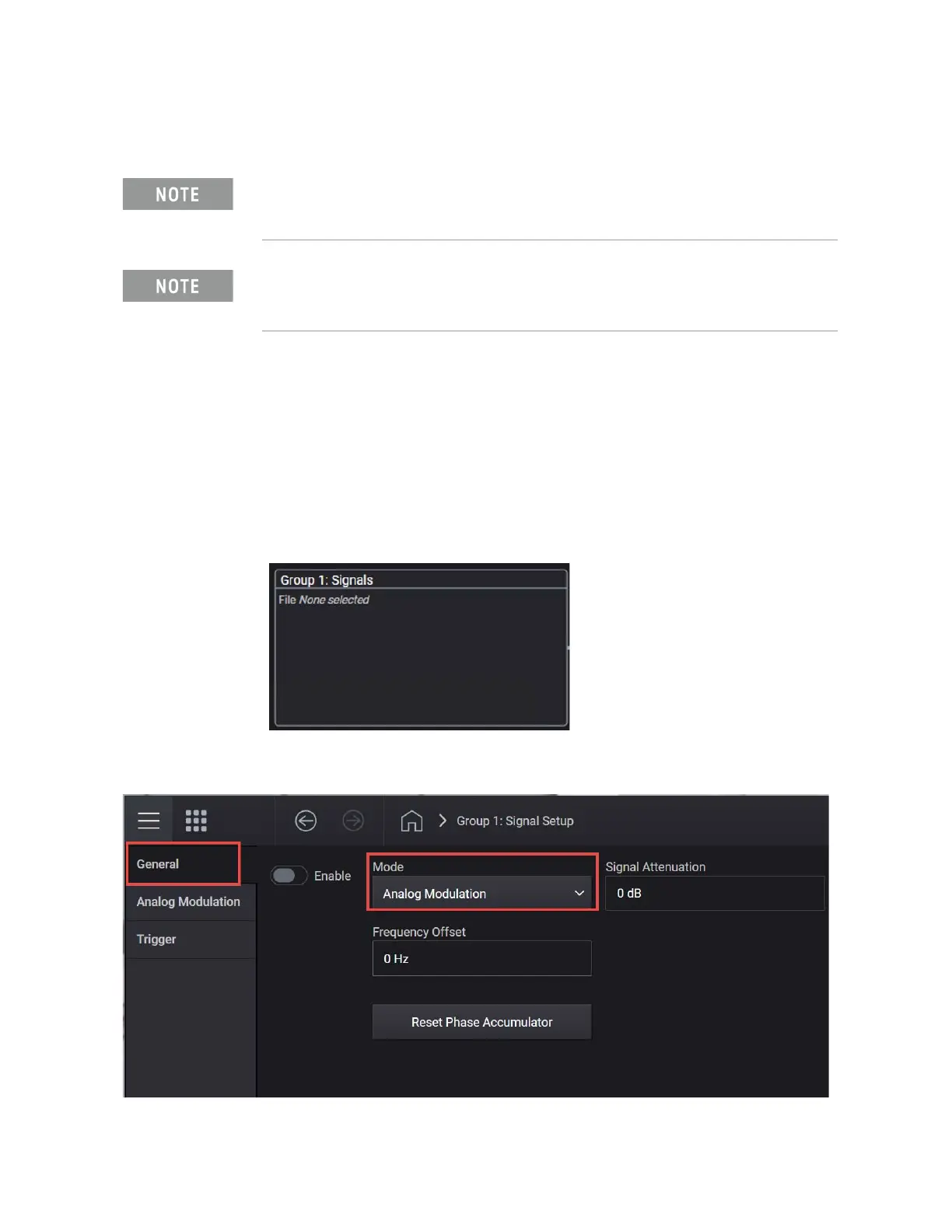

3. Select the Signal block to open.
4. Select the Mode dropdown and select Analog Modulation.
The MXG must have the E7642APPC PathWave Signal Generation for IQ
Based AM, FM, and Phase license installed. The X-Series Analyzer must
have N9063EM0E Analog Demodulation Measurement license installed.
Ensure the equipment and triggers are properly configured. Refer to
“Equipment Setup” on page 9 and “Setting Up Triggers on the Signal
Analyzer” on page 10
.
