26 N5186A MXG and X-Series SA Measurement Guide
Basic Measurements
Making Measurements

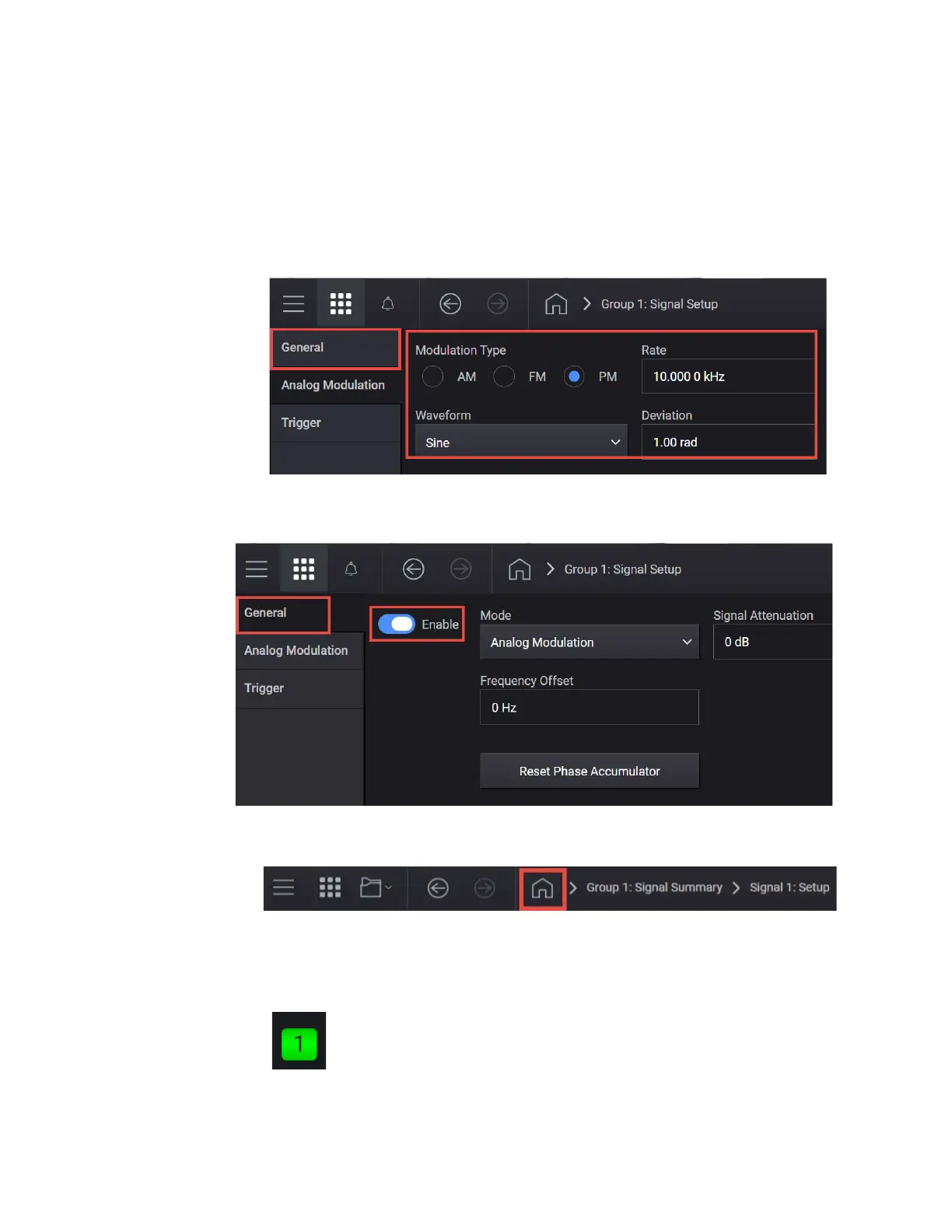

5. From the left pane, select the Analog Modulation tab and set:
a. Modulation Type to PM.
b. Waveform to Sine.
c. Rate to 10 kHz.
d. Deviation to 1 rad.
6. Select the General tab > Enable.
7. Close the Vector Modulation Signal Setup by selecting the Home icon at
the top of the display.
8. Set RF Out to On by selecting the numbered channel indicator switch.
This enables the RF Out for the indicated channels, in this case Channel 1
if using a multi-channel MXG.
