N5186A MXG and X-Series SA Measurement Guide 45
Corrections
Corrections/De-embedding Using PathWave E7653APPC Software

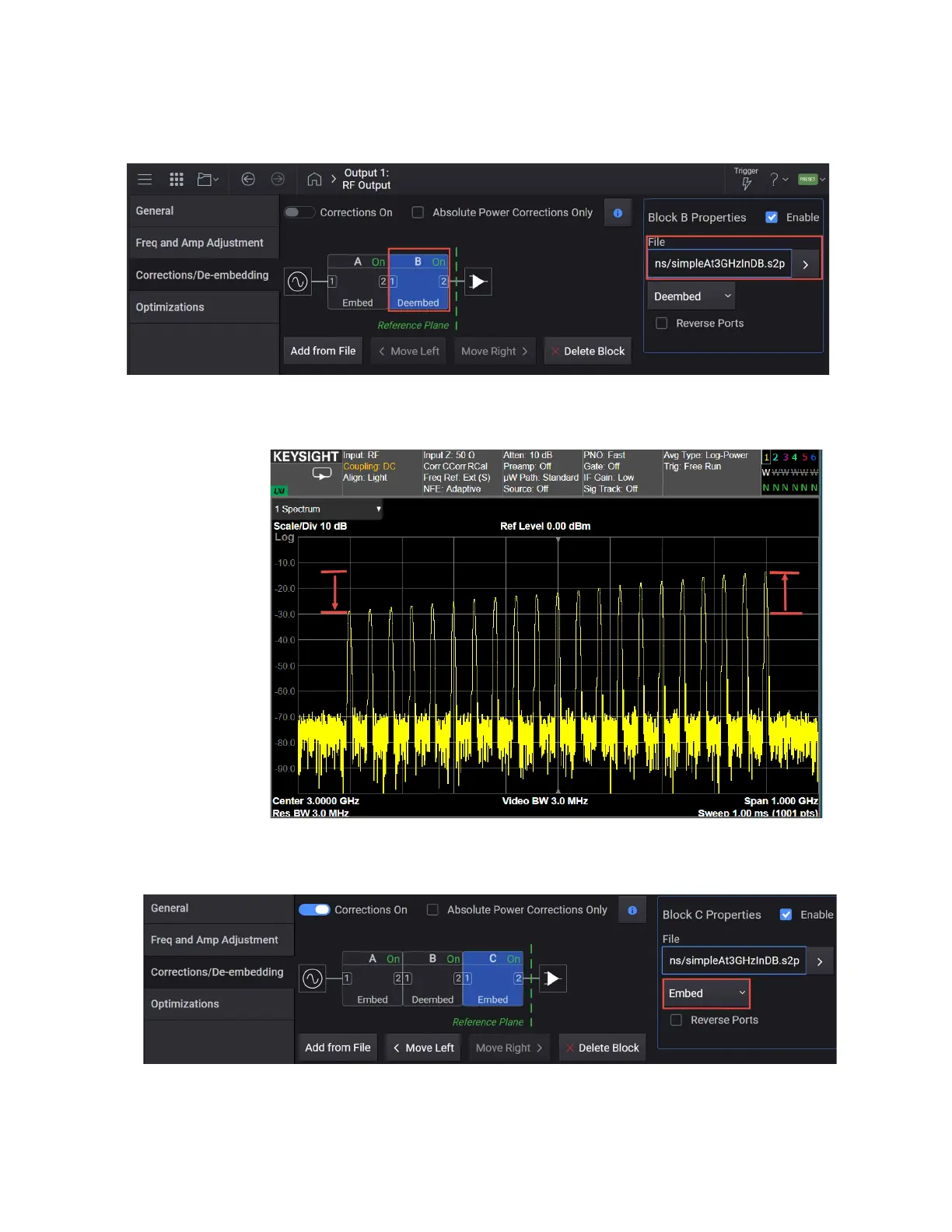

14. At the top of the display, turn Corrections On. View the results on the
signal analyzer. Observe how the .s2p file has impacted the signal.
15. Add a third block using the same file name as shown in the steps above.
Under Block C Properties, set to Embed.
