70 N5186A MXG and X-Series SA Measurement Guide
5G New Radio (NR) Measurements
5G Waveform, EVM, and ACP Analysis
Demodulate the Waveform Using the 89601B VSA Software:
1. Open the VSA software by selecting Mode Meas > Launch VSA.
2. From the menu bar, select File > Preset > All to set the VSA to a known
state.
3. Select File > Recall > Recall Setup and navigate to
5GNR_1CC_FR1_30kHz_SCS_100MHz_256QAM_DC punctured.setx
4. From the toolbar, select the Pause Icon.
Pausing the measurement will help speed up the setup time.
If accessing the instrument via a Remote Desktop connection, select the
Screen tab (at the top of the display) to open the
Mode/Measurement/View Selector window.

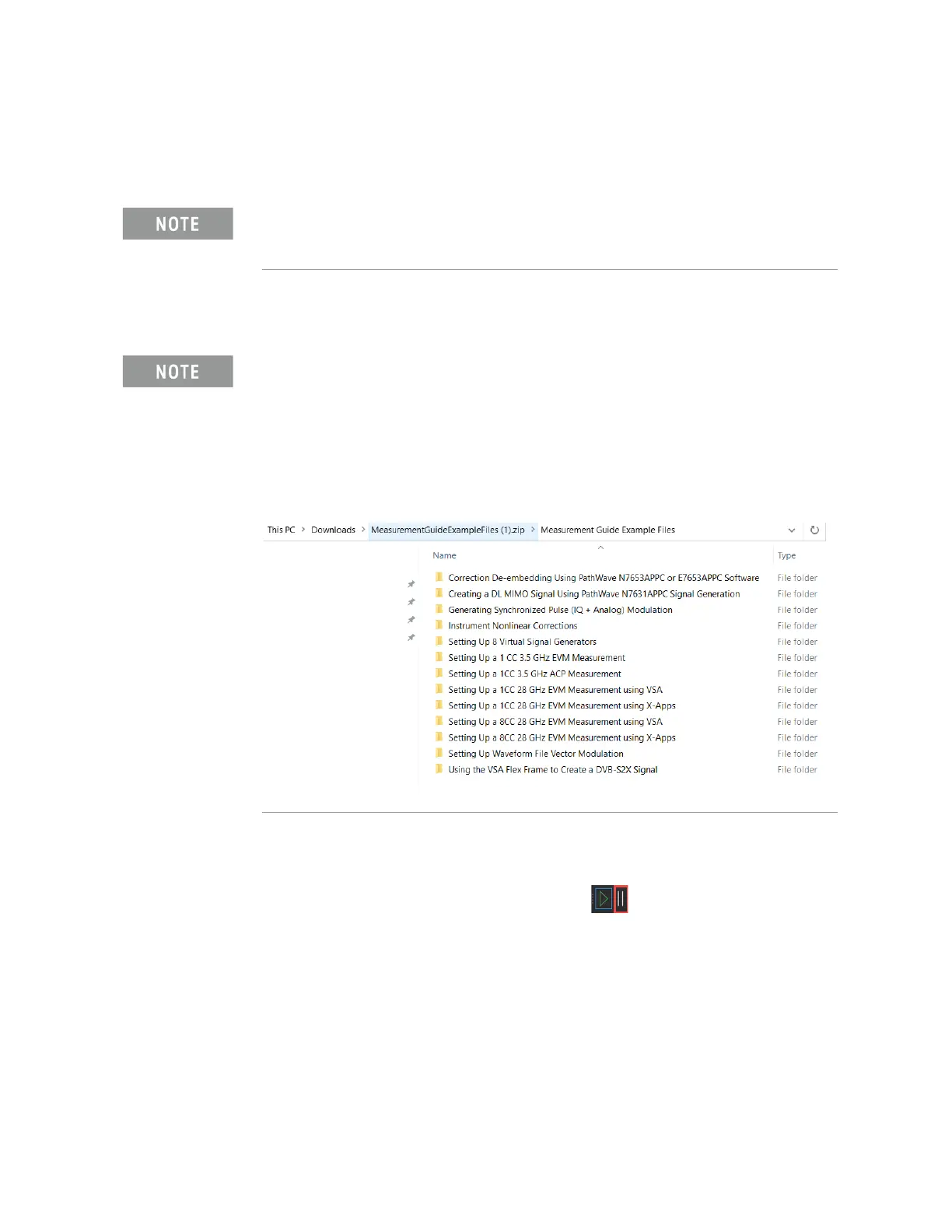

You will need to copy the setup files to the X-Series Signal Analyzer or the
PC running the VSA application. Go to:
https://www.keysight.com/us/en/lib/software-detail/instrument-firmwar
e-software/measurement-guide-example-files.html
Select Download and wait for the zip file to finish downloading to your
Downloads folder. This may take a few minutes as it is a 2 GB file. You will
find the setup file(s) under the applicable Measurement name.
