Service Guide N5227-90001 3-27
PNA Series Microwave Network Analyzers Tests and Adjustments
N5227A System Verification
Figure 3-12 shows an example of typical verification results with Print Graphs selected in the Printer Output
area of the System Verification dialog box. The printed graphical results show the following:
• the name of the device measured
• the serial number of the device
• the parameters measured
• Results of the measurements. Labeled as A in Figure 3-12.
• Data measured at the factory from the verification kit. Labeled as B in Figure 3-12.
• Upper and lower limit points as defined by the total system uncertainty system. Labeled as C in
Figure 3-12.

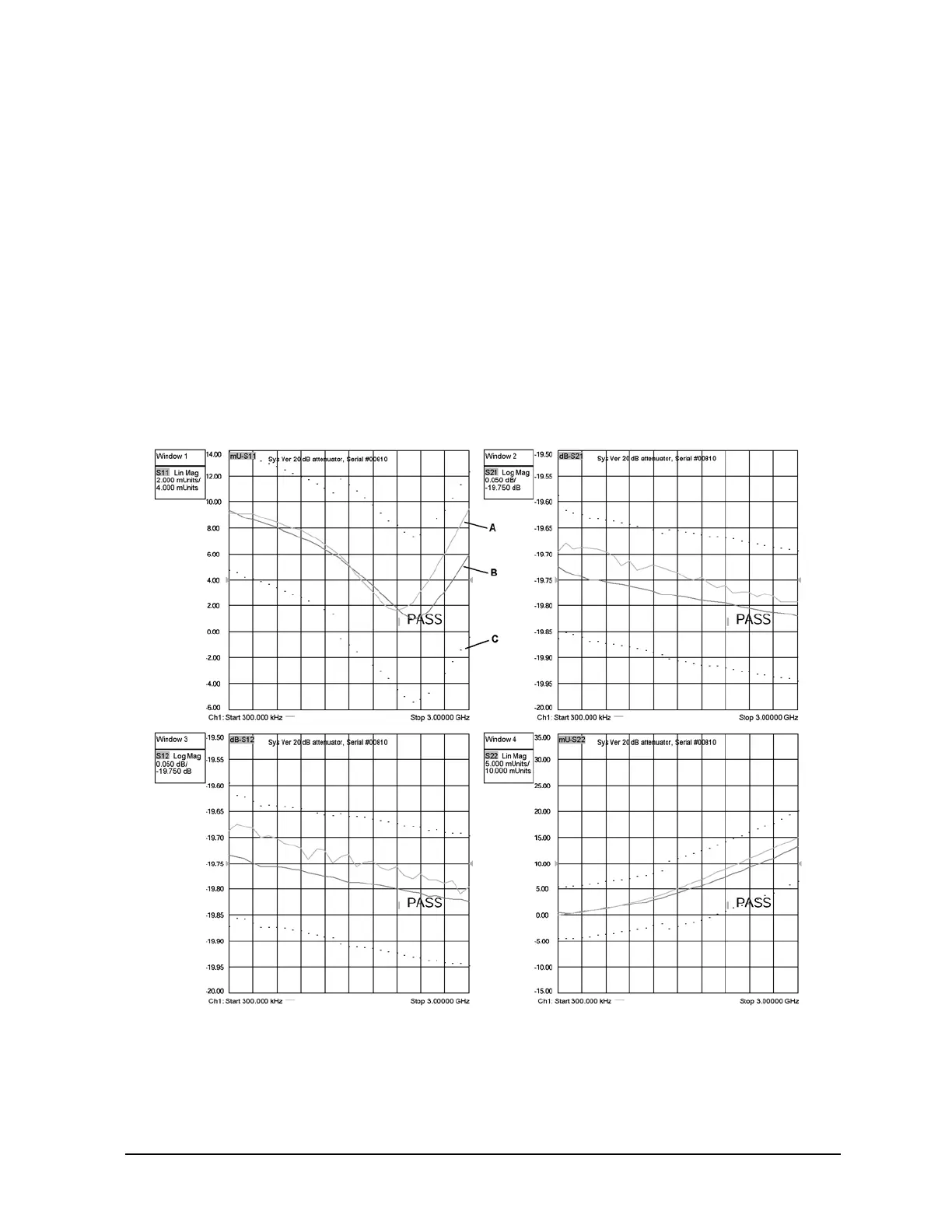

Figure 3-12 Example of Printed Graphical Verification Results
