2 User Interface

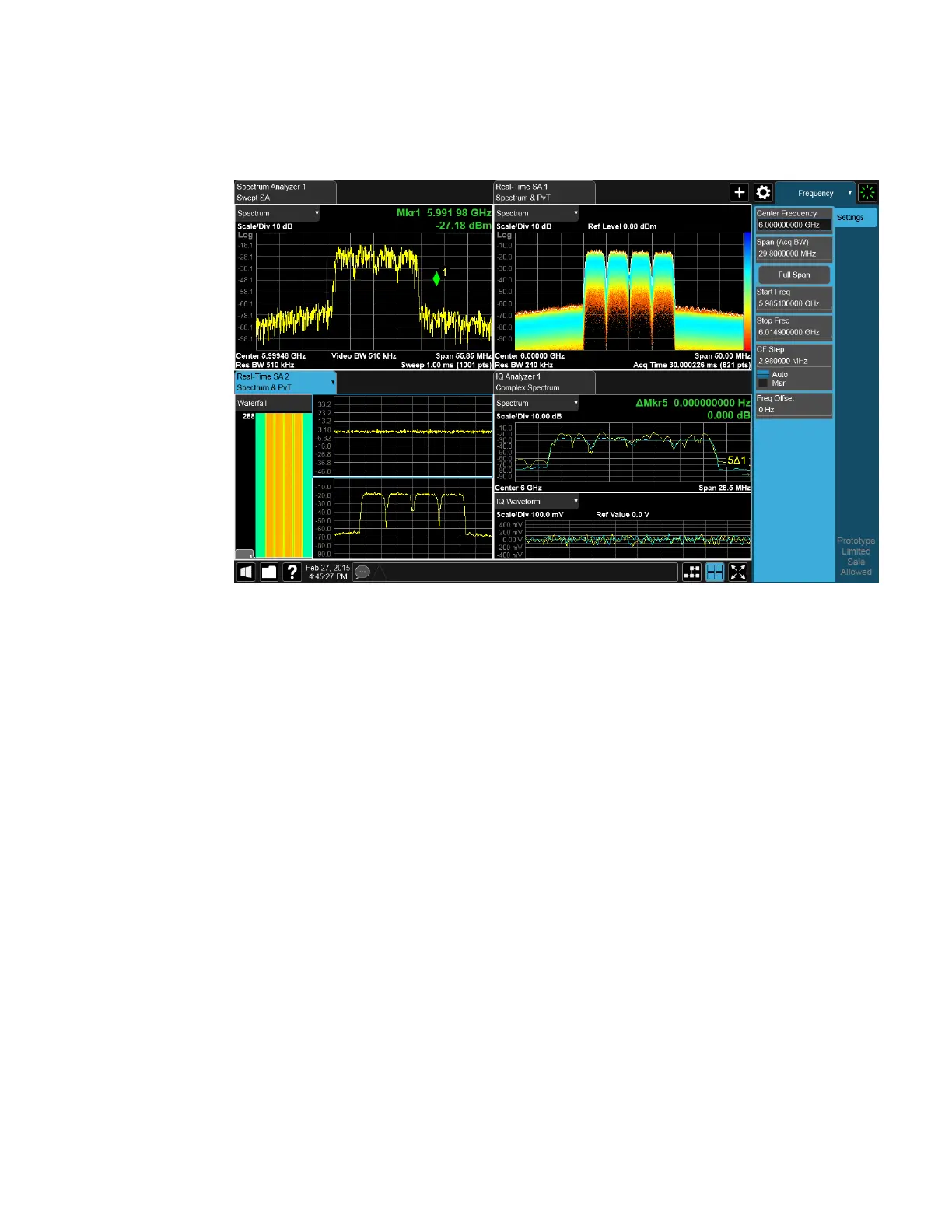

2.1 Screen Tabs
The following topics provide more information:
–
"Mode/Meas/View Dialog" on page 90
–
"Add Screen" on page 107
–
"Multiscreen" on page 177
2.1.1 Mode/Meas/View Dialog
The Mode/Meas/View dialog opens when you press the selected (blue) Screen tab
(see "Screen Tabs" on page 89) or the Mode/Meas front panel key.
This dialog displays lists of available Modes, Measurements and Views, as well as
the "Sequencer" on page 101 control for configuring Screens.
Vector Modulation Analyzer Mode User's &Programmer's Reference 90
