Overview
Front Panel Overview

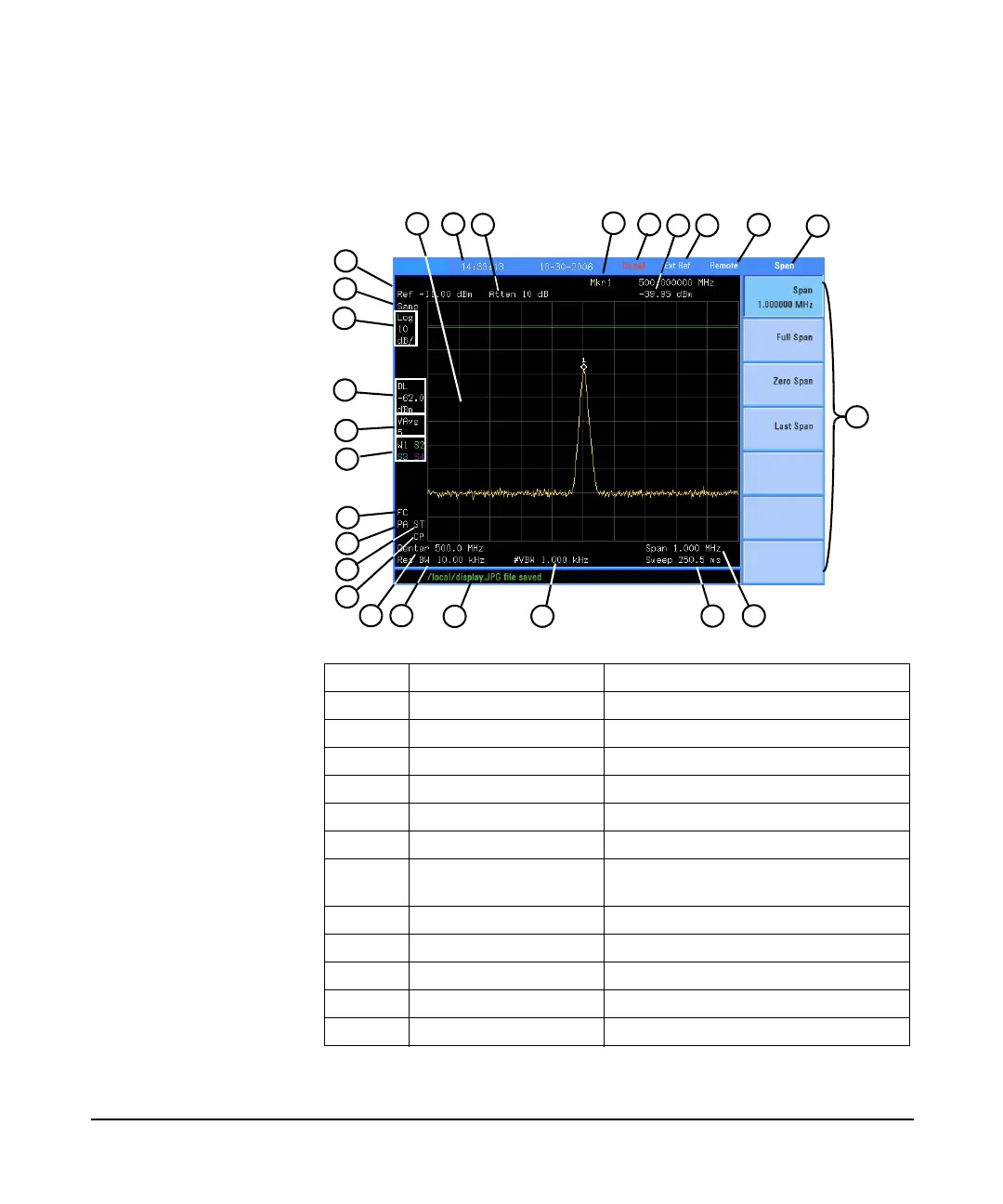

Display Annotations
Item Description Notes (Associated function key)
1 Amplitude scale [Amplitude] > Scale Type
2 Detector mode [Det/Display] > Detector
3 Reference level [Amplitude]
> Ref Level
4 Active function block The function in use
5 Time and date display [Preset/System] > Time/Date
6 RF attenuation [Amplitude] > Attenuation Auto
7 Marker frequency [Marker] or
[Marker] > Function > Frequency Counter
8 Uncal indicator The readout of amplitude is uncalibrated.
9 Marker amplitude [Marker]
10 External reference An external frequency reference is in use.
11 Remote mode The analyzer is in remote mode
12 Key menu title Dependent on key selection.
12
11
10
8
5
13
14
15
3
2
1
26
25
22
24
17
16
23
21
20
6
9
7
1819
4
