Calibration Procedures 6
Adjustments procedures
U3606A User’s and Service Guide 217
5 Verify the constant current adjustments using the “CC programming and
readback accuracy” on page 168.
CV output adjustment procedure — rear output terminals
Review the “Test Considerations” on page 145 and “Input Connections” on
page 146 sections before beginning this procedure.

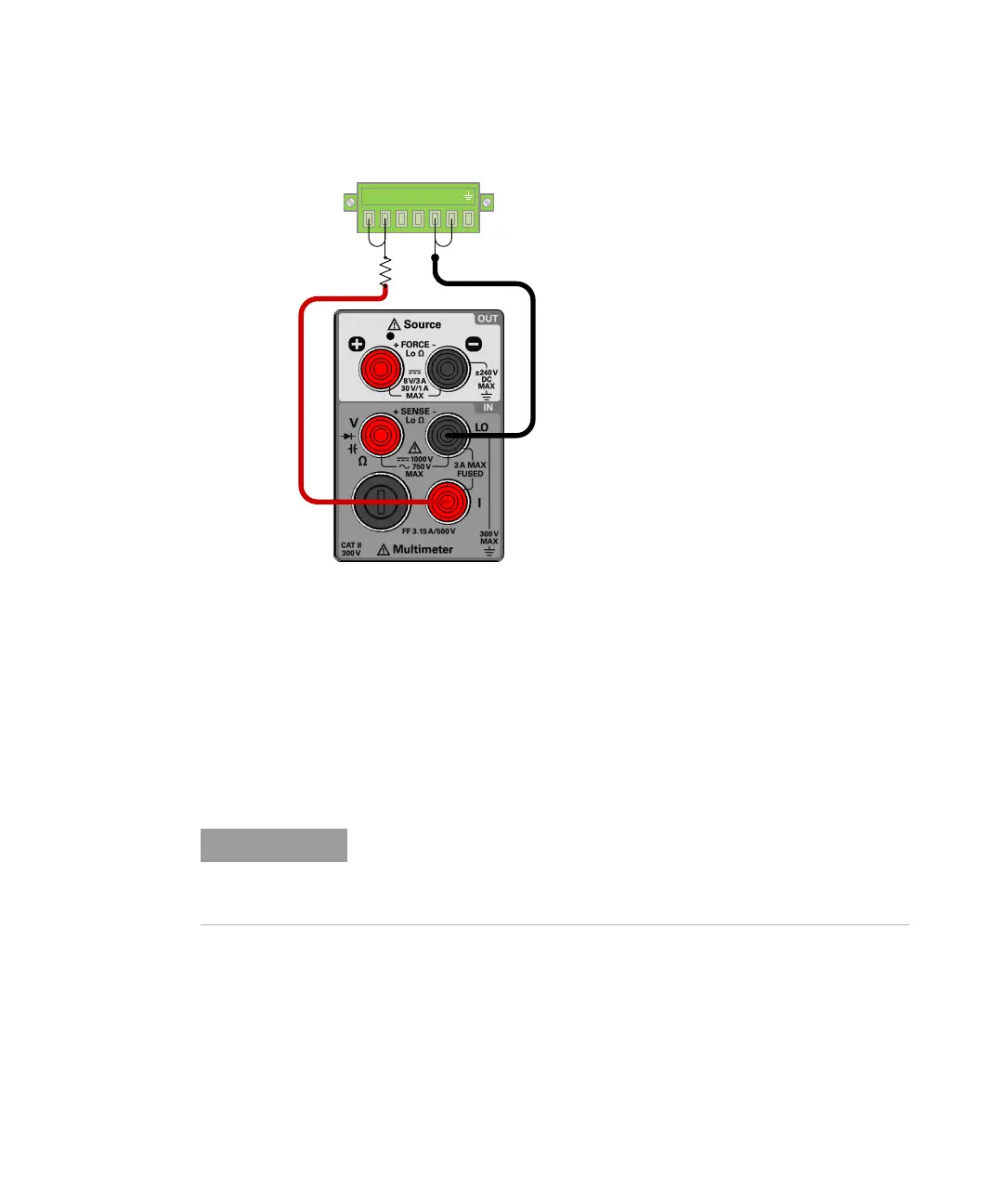

1 Turn off the instrument and connect the rear panel + and
– output terminals to the V (red) and LO (black) input terminals.
Ensure that the rear panel sense terminals (+S and –S) are shorted to the
rear panel output (+ and –) terminals. See “Remote sensing
connections” on page 100 for more information on how to connect the
load leads.
