SRA Smart Reflow Analyzer Hardware Guide SRA-330200-000
16
Thermal Protection

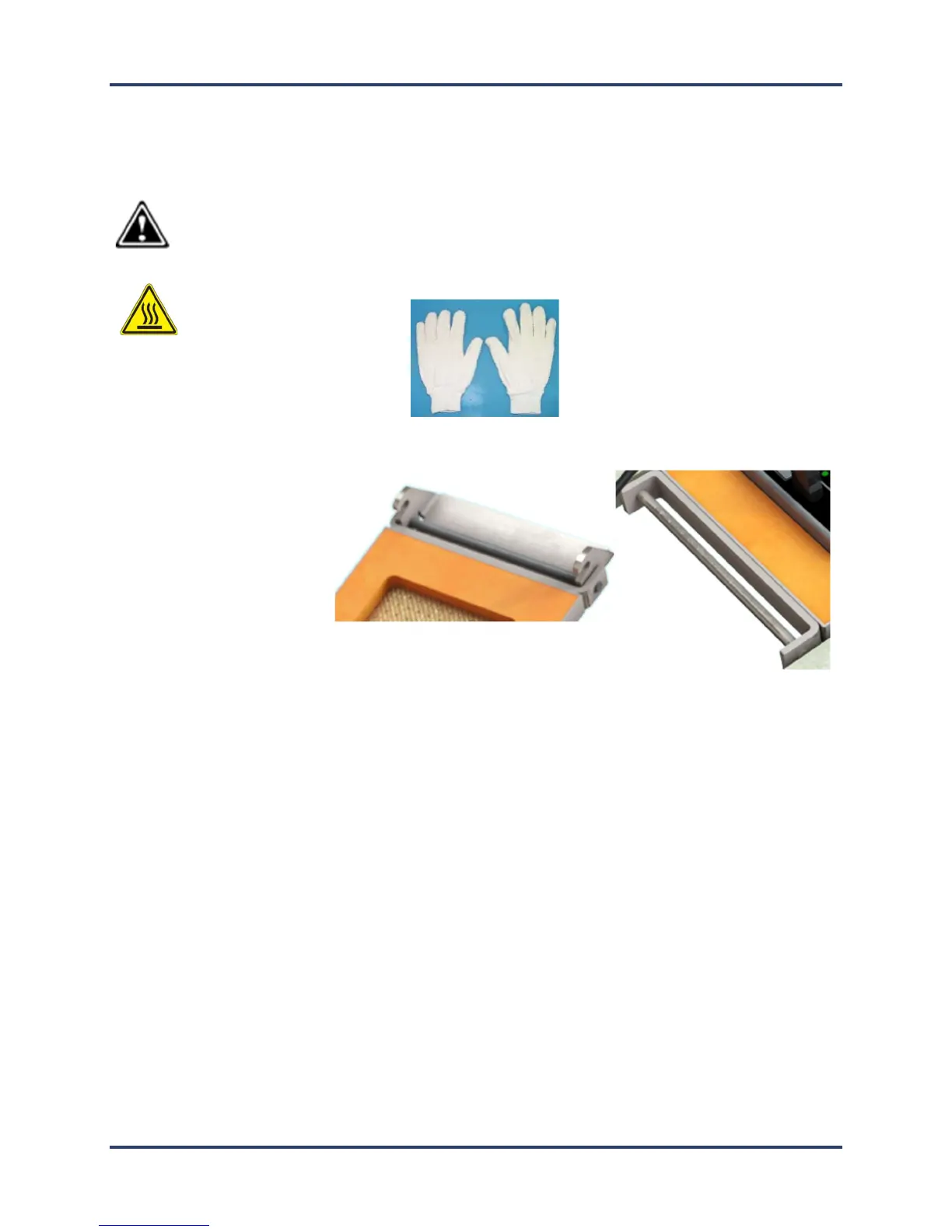

The SRA Smart Reflow Analyzer includes a built-in thermal shield—a stainless steel enclosure that protects the
internal electronics (SRA module) against extreme heat during runs through a thermal process.
Caution: The SRA module’s maximum internal temperature is 85
C.
Note: Gloves are required
when the device has just
emerged from the oven. Your
SRA kit includes a pair of specially
selected safety gloves.
1. The top side of the shield
has a latching tab which
hooks on to the bottom
section of the shield.
2. Close the lid of the shield and rotate the latch downward to lock it in place.
