Hardware Status: LED Status Window

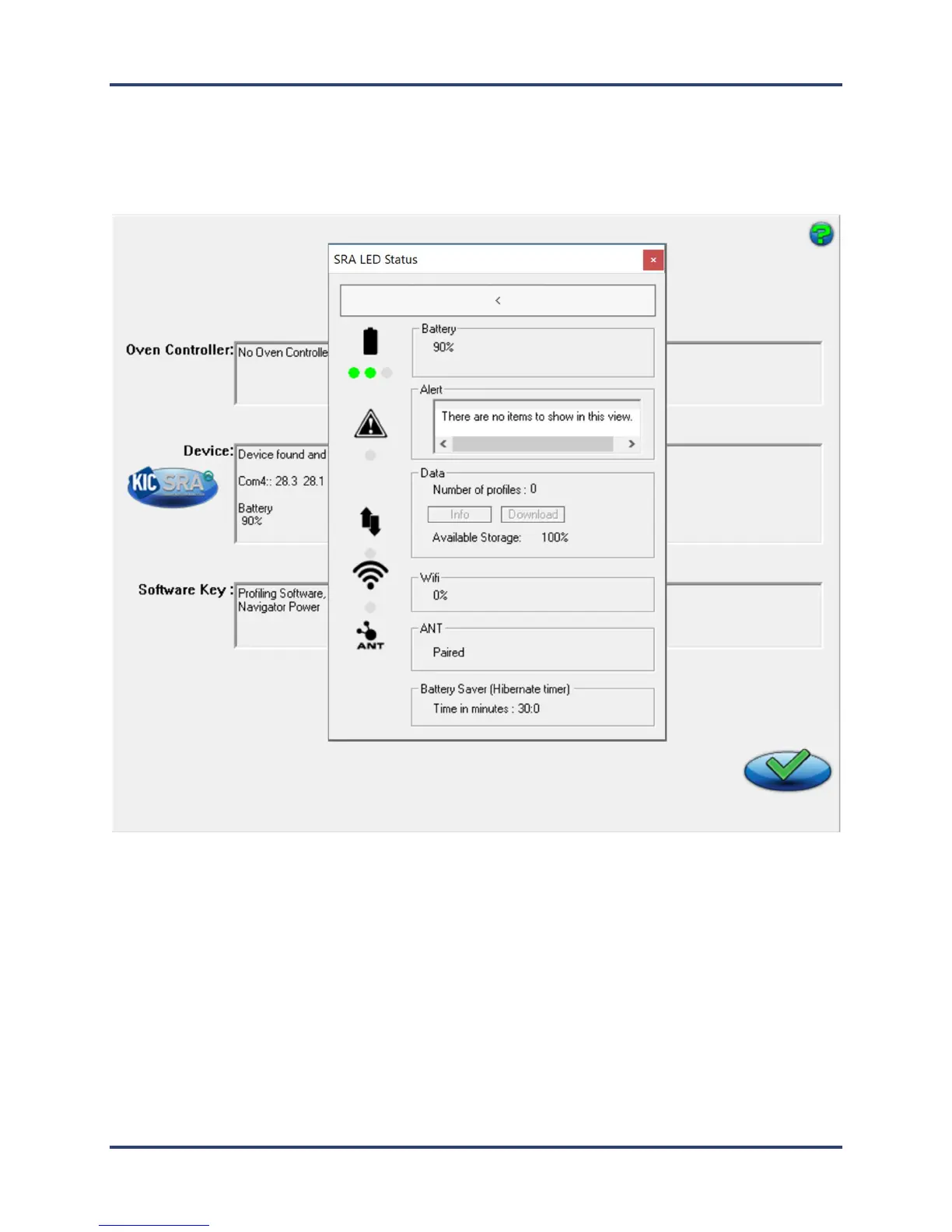

With the SRA connect you can access an LED Status Window from the Hardware Status screen by clicking on the
blue logo to the left of the Device panel. This pop up window will indicate the matching status of the SRA LEDs on
the SRA hardware, along with brief status descriptions. This will allow you to identify the state or mode of the
device based on the LED display.
Battery indicates percent of battery charge.
Alert (if LED is on) will list any and all alerts in the list box.
Data LED status will indicate the number of profiles currently stored in the SRA with access for information on the
stored profiles and the ability to download them. It also displays the amount of available storage (as a percentage).
Wi-Fi indicates the signal strength of the Wi-Fi connection to the Smart Dock (displayed as a percentage).
ANT will list if the SRA is paired with a Smart Dock or not.
Battery Saver indicates the time in minutes the SRA will turn off automatically if left idle.
