SRA Smart Reflow Analyzer Hardware Guide SRA-330200-000
5

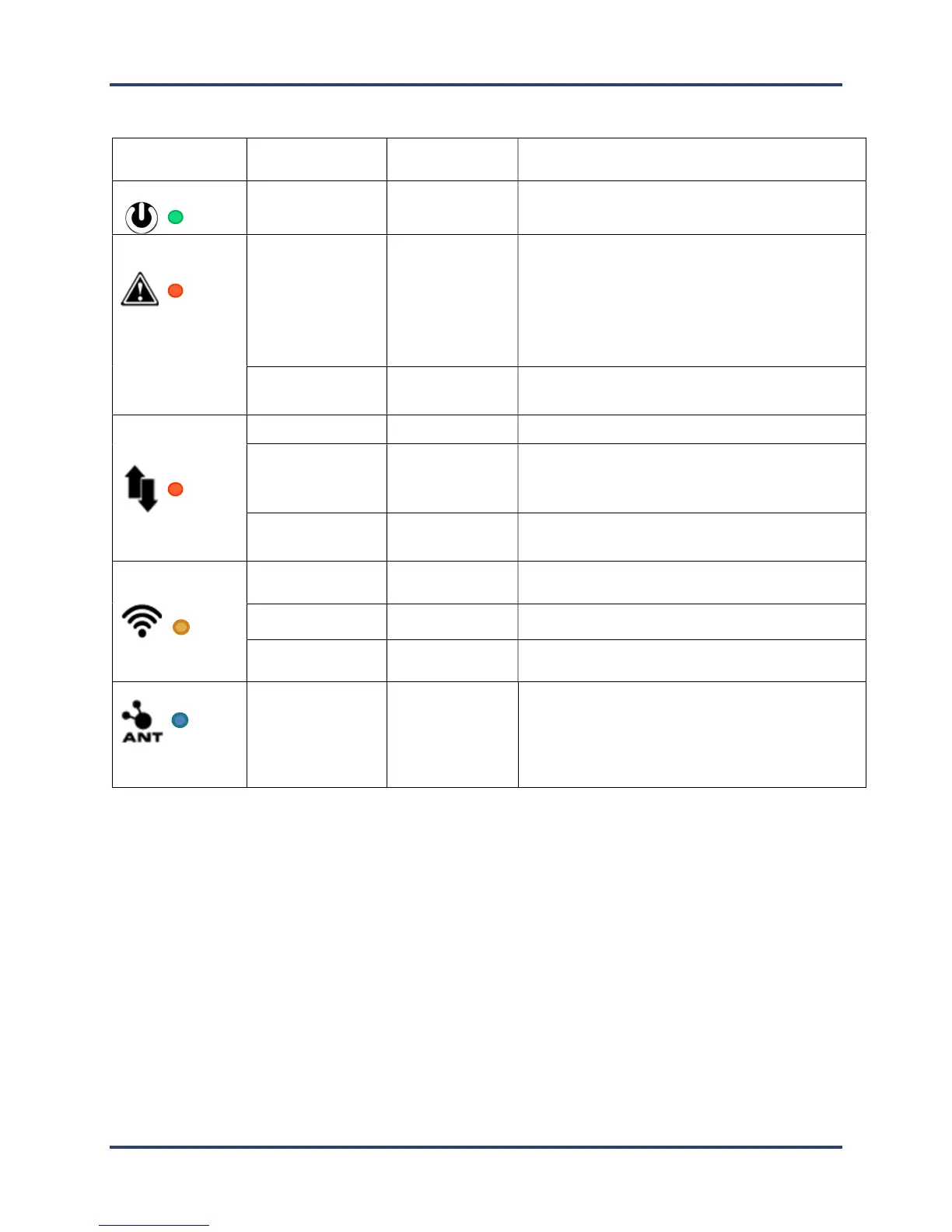

The Smart Dock LEDs
LED Name/
Icon/Color
Mode
LED Behavior
Mode Description
Power
Power
Solid
Power to Smart Dock from USB established
Alert Not Ready Solid On Cannot profile: due to TC 1 missing, TCs too
hot, SRA module too hot, Battery too low,
startup failure, voltage too low to charge or
memory full. Plug into PC and software to
identify alert.
Ready Off
Ready to begin profiling.
Data Collection Profiling Fast Flashing Profiling in progress.
Profile Complete Flashing every 3
seconds
One or more profiles are complete and stored
in SRA memory.
Data Empty Off
No profiles stored in SRA memory.
Wi-Fi
No
Communications
Off
Wi
-
Fi not in use or not available.
Wi
-
Fi In Use
Fast flashing
When profiling or downloading.
Wi
-
Fi Ready
Slow
flashing
Flashing every 3 seconds when paired with
Smart Dock
Beacon
Flashing
Beacon mode starts when
device is tapped
.
LED flashes for 30 seconds waiting for
compatible device to pair. During this time
Smart Dock will automatically pair with a
compatible device within range.
