SRA Smart Reflow Analyzer Hardware Guide SRA-330200-000
6
The SRA Speed Detection Sensors

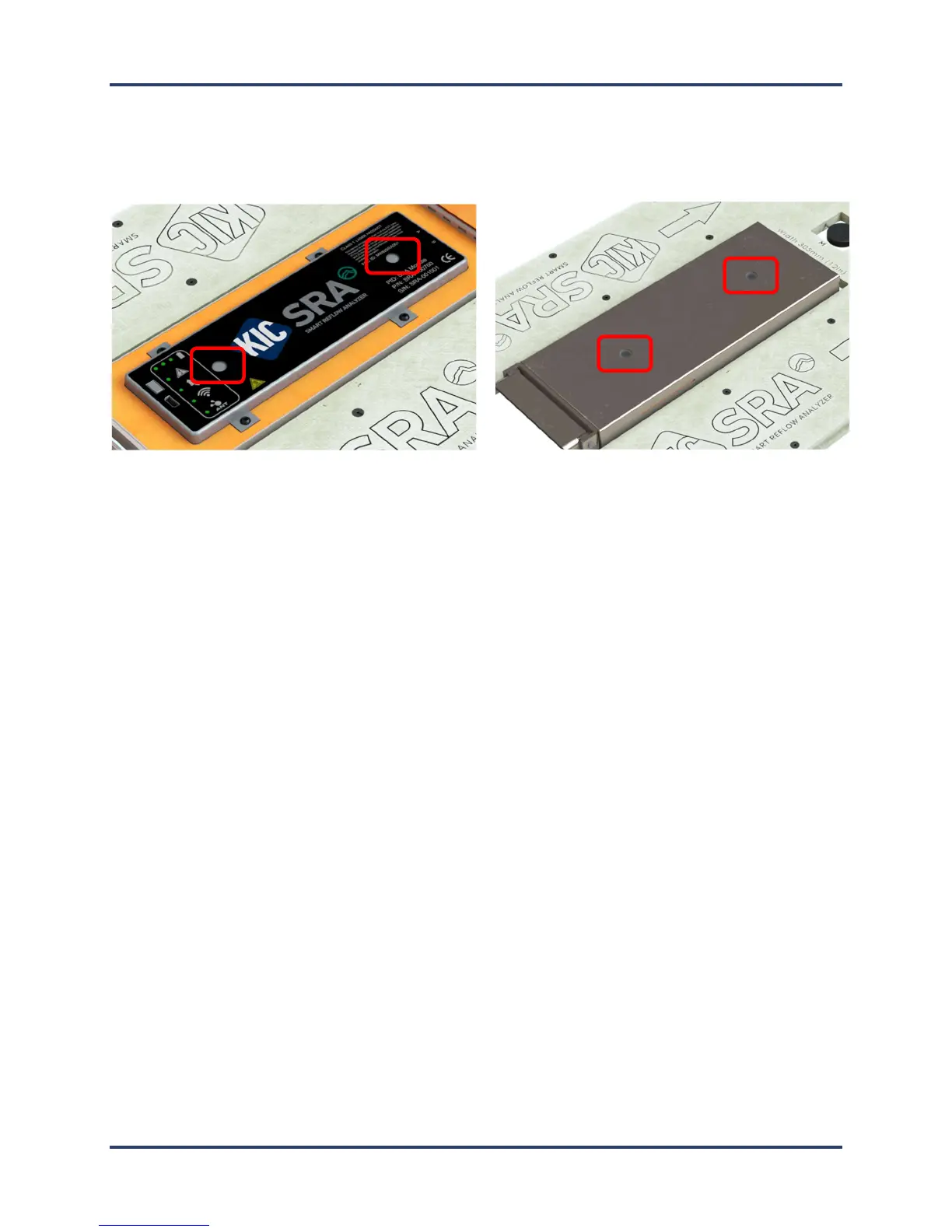

The SRA uses two (2) built-in sensors for automatic calculation of the conveyor speed during a profile. The top of
the thermal shield has two access windows for these two sensors to project through when the shield lid is closed.
These sensors serve two (2) functions:
Primary use - Automatically calculate conveyor speed during profiling
Secondary use – With Wi-Fi versions of the SRA, when the unit is powered on, covering a single sensor
window initiates the pairing function with the Smart Dock.
Note: You can reference the LED tables above and Wireless Mode instructions below for more information
on pairing of the SRA and the Smart Dock.
