Kidde Fire Systems Argonite

8-4 September 2004
Argonite
®
Engineered Fire Suppression System
38-KFSARG-000
8-4 PRESSURE GAUGE UNITS
8-4.1 Pressure Gauge with Supervisory Pressure Switch Assembly
for Slave Cylinders
GAUGE WITH SUPERVISORY
PRESSURE SWITCH
P/N 38-109891-001
SWIVEL NUT, 36 MM HEX
(CONNECTION TO VALVE)
REPLACEMENT O-RING
P/N 38-509870-001
RELEASE ASSEMBLY
INLET STEM
145
2100
15-8021-000135/01
-20°F(-29°C)
Recharge
200
160
3000
2500
70°F(21°C)
4500
KI1,6
EN 837-1
S/N38-109891-001
psi
bar
315
130°F(54°C)
250
3500
Overcharged
4000
300

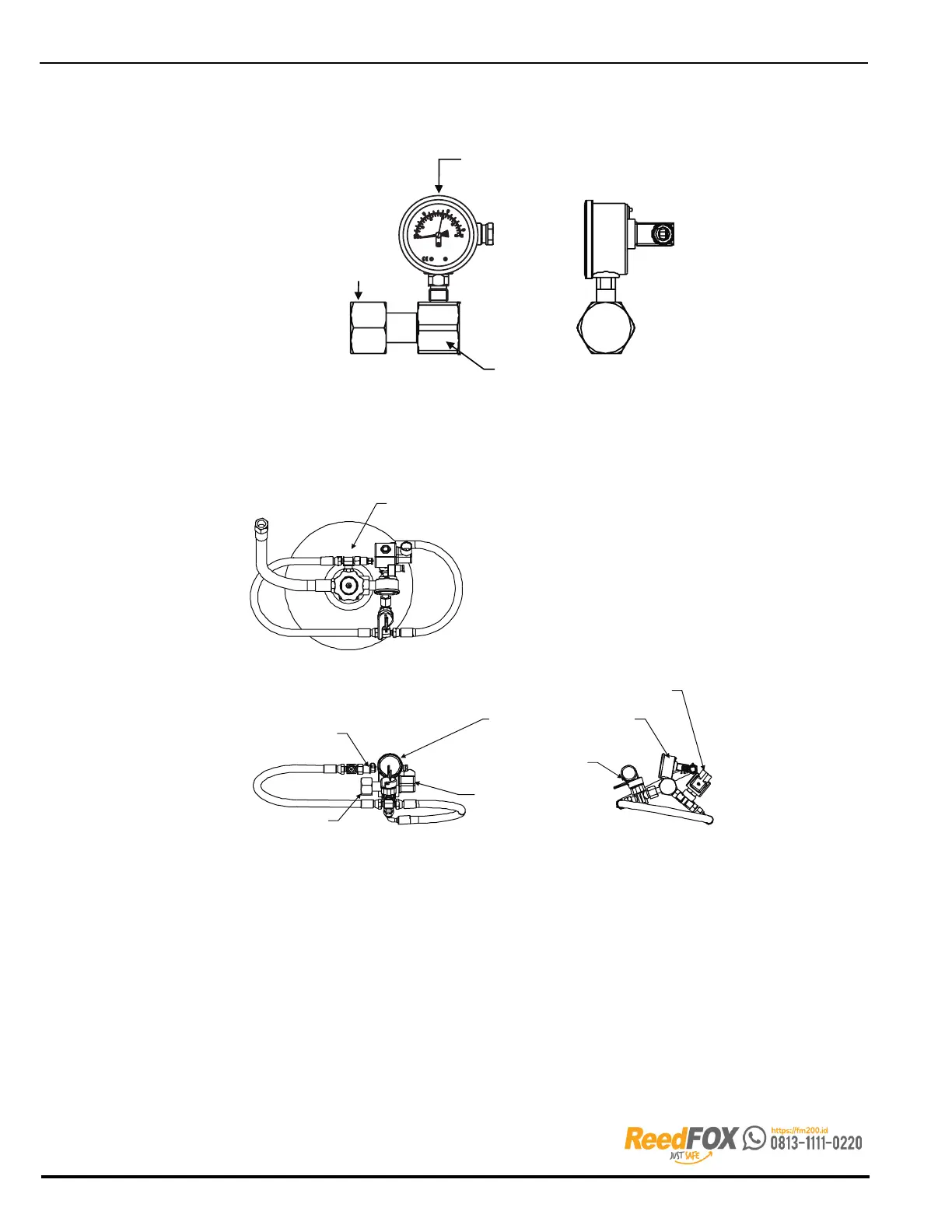

Figure 8-2. Pressure Gauge with Supervisory Pressure Switch
8-4.2 Solenoid Valve, Gauge and Supervisory Pressure Switch Assembly
for Pilot Cylinder(s)
TOP VIEW
(SHOWN ON CYLINDER)
TEE FITTING, 19 MM HEX
(CONNECTION TO VALVE)
P/N 38-509816-001
FRONT VIEW
SIDE VIEW
SOLENOID, 24 VDC
P/N 38-509834-001
WITH 1/2” FNPT
SOLENOID CONNECTOR
P/N 38-509866-001
GAUGE WITH SUPERVISORY
PRESSURE SWITCH
P/N 38-109891-001
MANUAL PNEUMATIC
ACTUATOR, P/N 38-509841-001
BLEEDER VALVE
P/N 38-509840-001
CONNECTION TO CYLINDER
VALVE, 36 MM HEX
REPLACEMENT O-RING
P/N 38-509870-001
SOLENOID, 24 VDC
P/N 38-509834-001
WITH 1/2” FNPT
SOLENOID CONNECTOR
P/N 38-509866-001
Figure 8-3. Solenoid Valve Assembly with Gauge and Supervisory Pressure Switch
