TOS5051A/5050A 1-5
Chap.1
General
18.Noise-resistant circuits
The internal circuits of the tester are designed to be highly resistant against
noise, thereby enhancing the operation reliability.
19.Automatic discharge function (TOS5051A only)
When the DC test output voltage is turned off, the output circuit is automati-
cally discharged, thereby discharging the charge in the device under test
(DUT). This feature, together with the DANGER lamp, enhances the test oper-
ation safety.
20.A DC/DC converter for quality DC test voltage (TOS5051A only)
The tester has a DC/DC converter which generates a quality test voltage of
high stability with less ripple.
21.Equipped with a RS-232C interface for outputting test data
and test results
The measurement results can be output to a PC or printer.
1.3 Options
Model RC01-TOS/RC02-TOS remote control box
Model RC01-TOS or RC02-TOS remote control box is used to remotely control the
start/stop of test operation of the tester. Connect the Control Box to the REMOTE
connector on the front panel of the tester. The RC01-TOS has one START switch;
RC02-TOS has two START switches. The test starts when you press both switches
at the same time, thereby enhancing the operating safety.
Description of the RC01-TOS/RC02-TOS function
OPERATE switch
This switch enables (when ON) or disables (when OFF) the START
switch or switches.
START switch
The test starts when you press this switch (or switches) if the
OPERATE switch is ON and the tester is in the READY status.
STOP switch
This switch terminates the test (cuts off the test voltage or resets the
tester from the FAIL or other particular status--its functions are the
same with those of the STOP switch on the front panel of the tester.

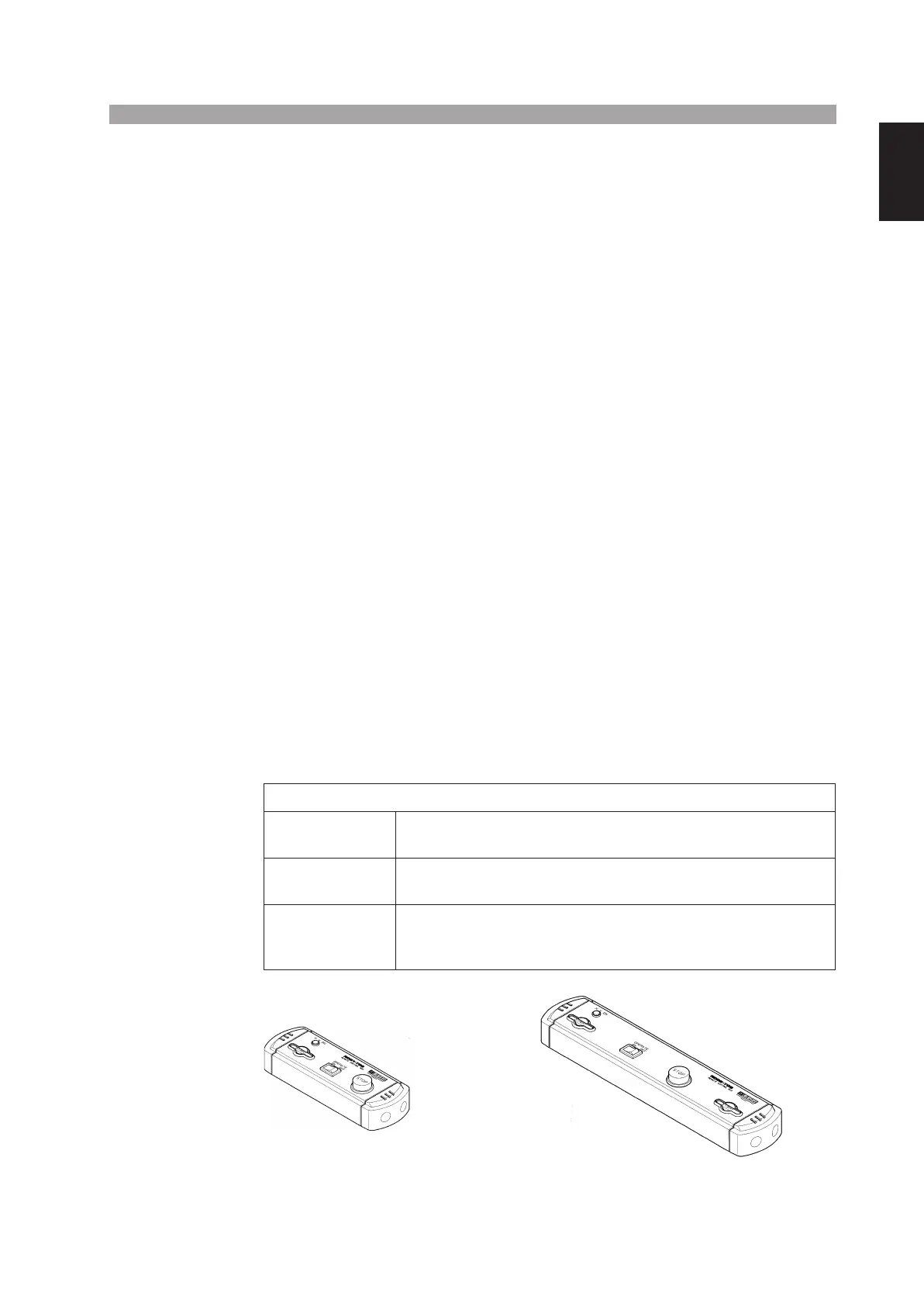

RC01-TOS RC02-TOS
200(W) × 70(Η) × 39(D) mm 330(W) × 70(Η) × 39(D) mm
