7. Alarm / relay settings

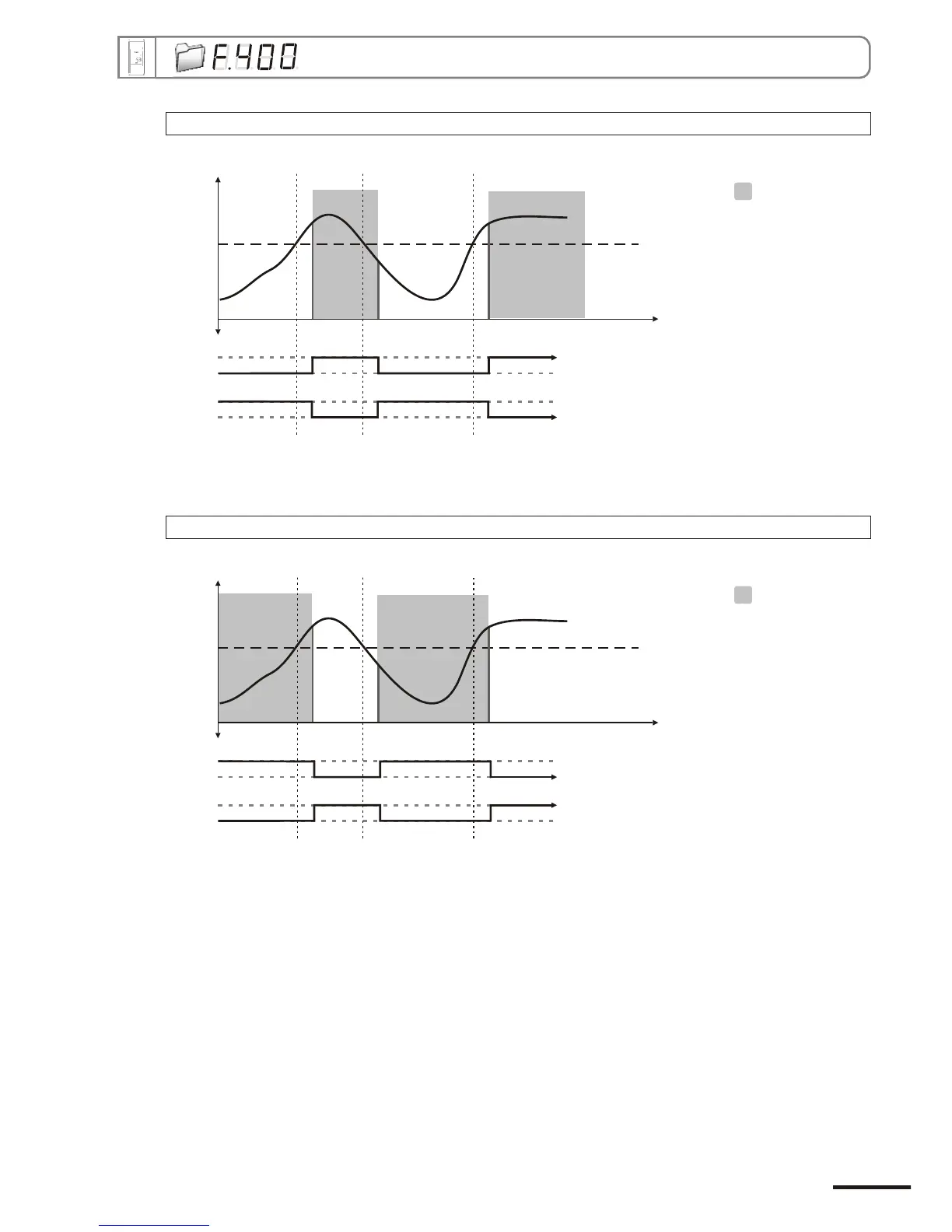

Configuration N°2 : 1 setpoint, time-delay and rising action activated
Setpoint 1
Time
Measurement
Energized
Not energized
Relay status
Negative security
Energized
Not energized
Relay status
Positivee security
<T> <T> <T>
<T>
Alarm set
Time-delay
Configuration N°3 : 1 setpoint, time-delay and falling action activated
Setpoint 1
Time
Measurement
Energized
Not energized
Relay status
Negative security
Energized
Not energized
Relay status
Positive security
<T> <T> <T>
<T>
Alarm set
Time-delay
