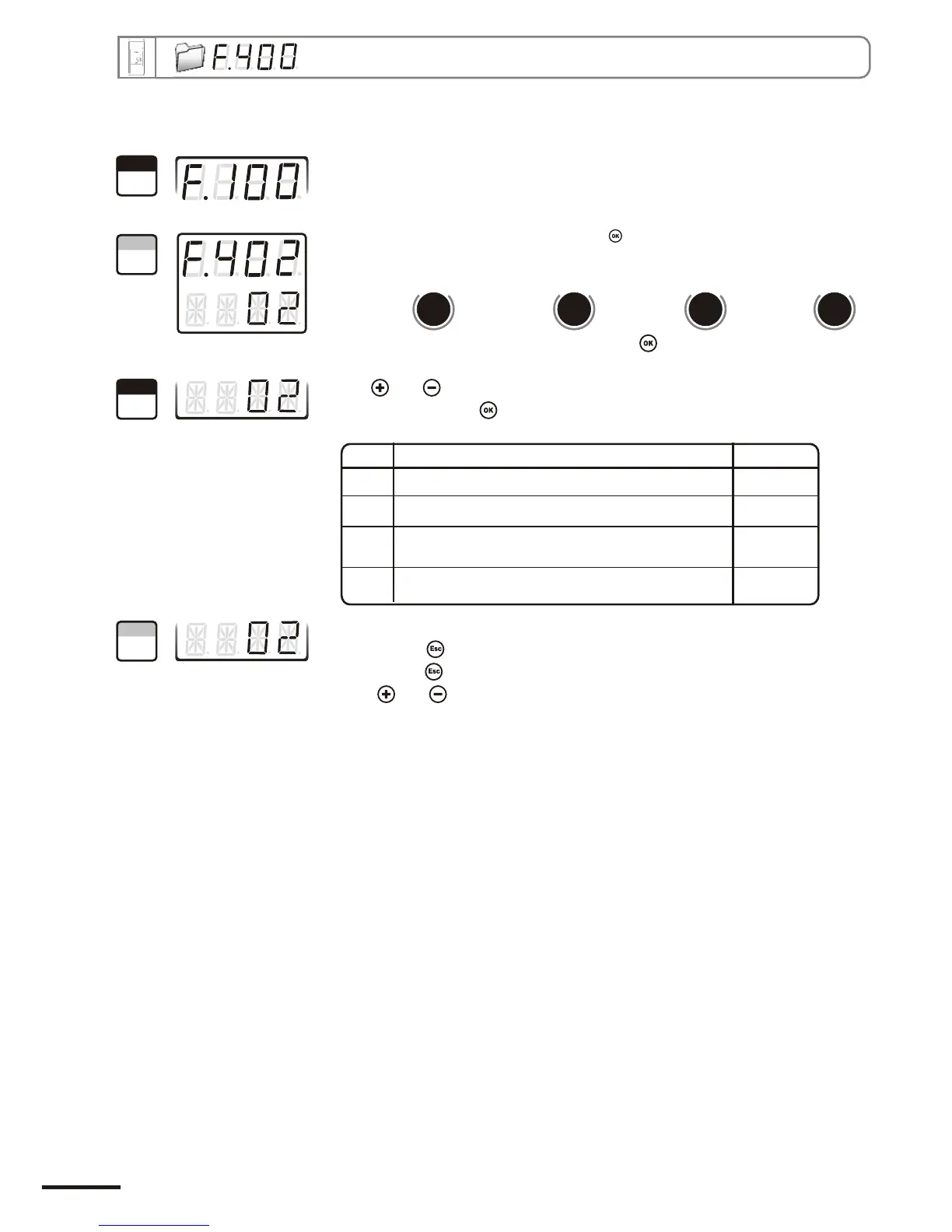

7.e - Alarm mode selection
7. Alarm / relay settings
Go into configuration mode (see page 5). The folder number displayed
corresponds to the last configuration folder used.
Select the folder “400” and validate with .
With and keys, select the code relative to the alarm mode (see chart
below). Validate with .
The cursor > returns to sub-folders line.
• press twice to return to reading mode.
• press once to return to another folder selection.
• with and keys, you can choose another sub-folder from the folder 400.
Code Mode d'alarme Schema
00 No alarm
01 2 setpoints with time-delay (control mode) N° 1 page 14
02 1 setpoint with time-delay and rising action N° 2 page 15
03 1 setpoint with time-delay and falling action N° 3 page 15
1
Step
2
Step
3
Step
4
Step
“402” “406” “410” “414”
Alarm 1 Alarm 2 Relay 1 Relay 2
Select sub-folder
and validate with .
d
b
u
o
s
M
804
d
b
u
o
s
M
812
d
b
u
o
s
M
820
d
b
u
o
s
M
828
Page 16
CPE 300 transmitter configuration via remote control / Modbus
