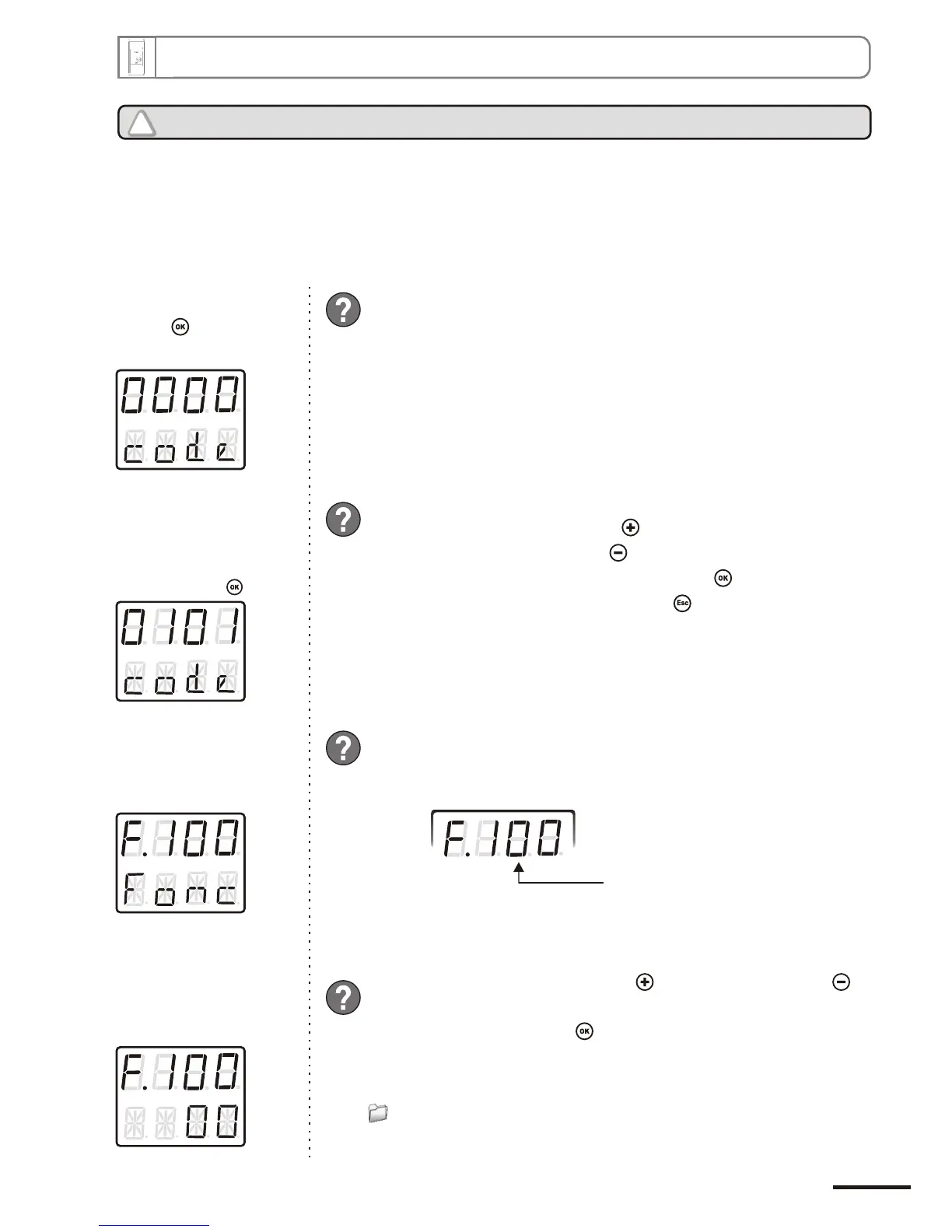

3. Activation code and access to functions
!
This step is COMPULSORY for each configuration.
To access the transmitter functions, and for safety, you have to first enter a safety code.
• Please check that the transmitter is powered on.
• If the transmitter displays an error code, please see “Errors Code” section on page 22
Step 1
Press
to get this screen
Enter the CODE “0101”
with the keypad and
validate with
Step 2
The code must be entered from left to right.
To increment a value or a level, press
To decrement a value or a level, press
To validate a value (level) or to validate the code, press
To return to the previous status or to cancel, press
The first “0” blinks, which means that this column is activated and you can
enter data from the keypad.
This screen appears:
Step 3
This screen confirms that the code was correctly entered, and that you can
configure the transmitter.
If the code was wrongly entered, the transmitter initializes and returns to the
starting display.
N° de dossier de configuration
The transmitter includes 5 folders maximum :
• 100 • 400
• 200 • 500
• 300
Configuration folder
selection
Step 4
To select your configuration folder, press to increment 100 or press to
decrement 100.
Once the folder is selected, press to validate.
L
On the top left of each page of this manual, you can find a reminder of the
configuration folder where the function is available.
F400
Ex. in the folder 400, you
can configure the alarms
and relays. See page 12.
Page 5
CPE 300 transmitter configuration via remote control / Modbus
