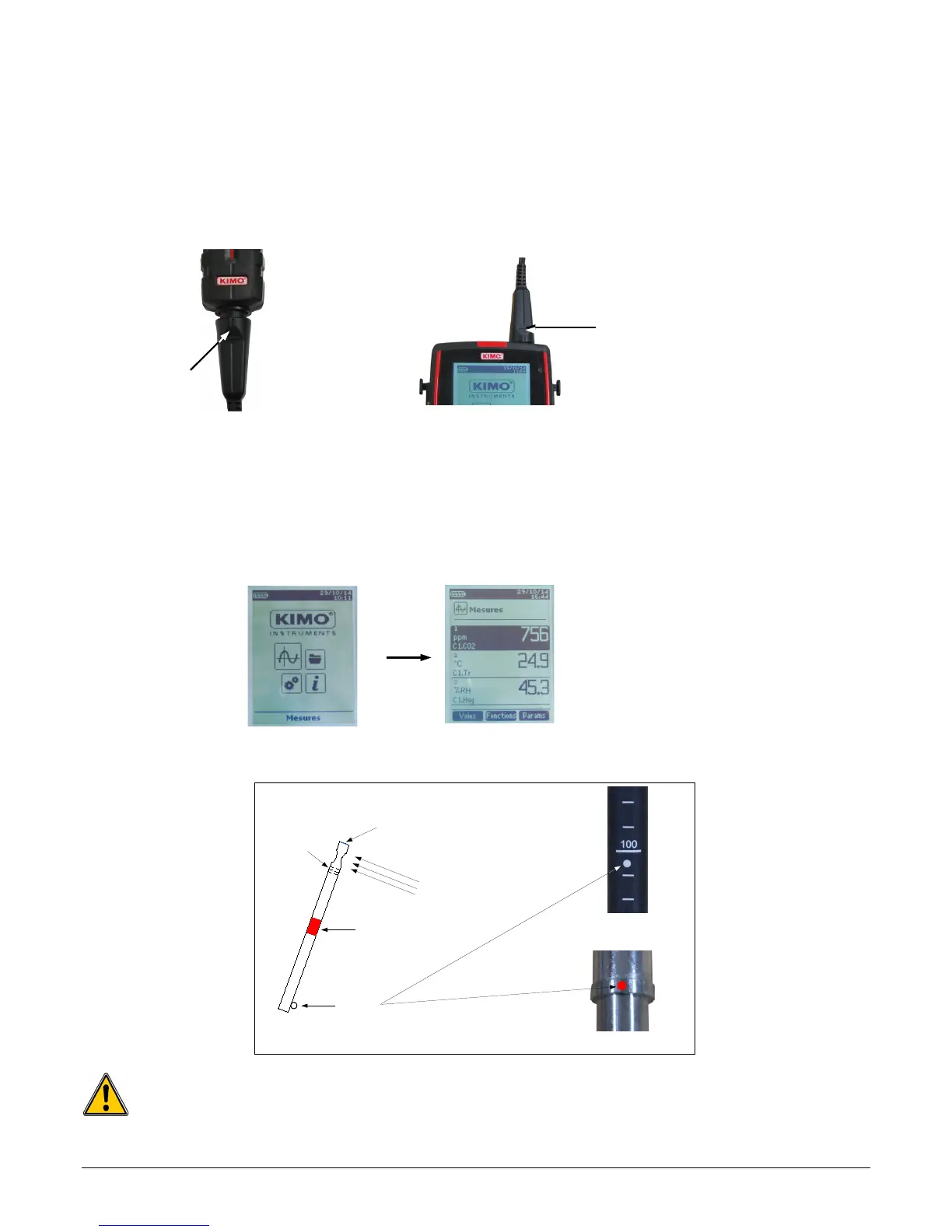

5.Set the probes
5.1 Use of the wire probes and modules
• Connect a probe
➢ Connect the mini-DIN cable on the mini-DIN connection of the probe.
➢ Connect the mini-DIN cable with the probe on the instrument.
A beep indicates that the operation has been correctly performed.
➢ Go to “Measurement” menu from the home screen.
➢ Press OK.
Measurement are displayed.
5.2 Special precautions for air velocity probes
Set the probes 13
Probe connection
Instrument connection
Arrow in front
of the user
Arrow in front of the
user
Bottom of the standard probe
Airflow direction
landmark
Protective tube of the
sensitive element (1)
Sensitive element (velocity)
Sensitive element
(temperature)
Bottom of the telescopic probe
Before any use of the device with an air velocity probe, please lower the protective tube (1) of the
sensitive element (except vane probe).
Always use the standard air velocity probe with the red point in front of the flow.
Always use the telescopic probe with the white point in front of the flow.
