2.Connections of the MP210
2.1 Main features
• Screen
120x160 pixels graphic display and backlight. Display of 6 measurements, 3 simultaneously. Size 50x67 mm.
• Printer (available as option)
The paper of the instrument is a thermal paper with a 10-year guarantee. It has an easy replacement system of the paper
(Easyload). In addition, printing is fast.
• Battery
Rechargeable Li-ion battery inside the instrument, 16 h battery-life with a pressure module or 14 h a hotwire probe. The
instrument is supplied with a 5 V, 1 A power adapter to load the internal battery. The current loading is indicated by a battery
symbol on the top left of the screen. The orange led on the bottom of the instrument is also on until the full loading of the
battery (the led turns green).
2.2 Connections
Interchangeable modules
The interchangeable modules have the SMART-2014 system and are automatically recognized once the connection is
made on the instrument.
• Thermocouple module:
8 Connections of the MP210

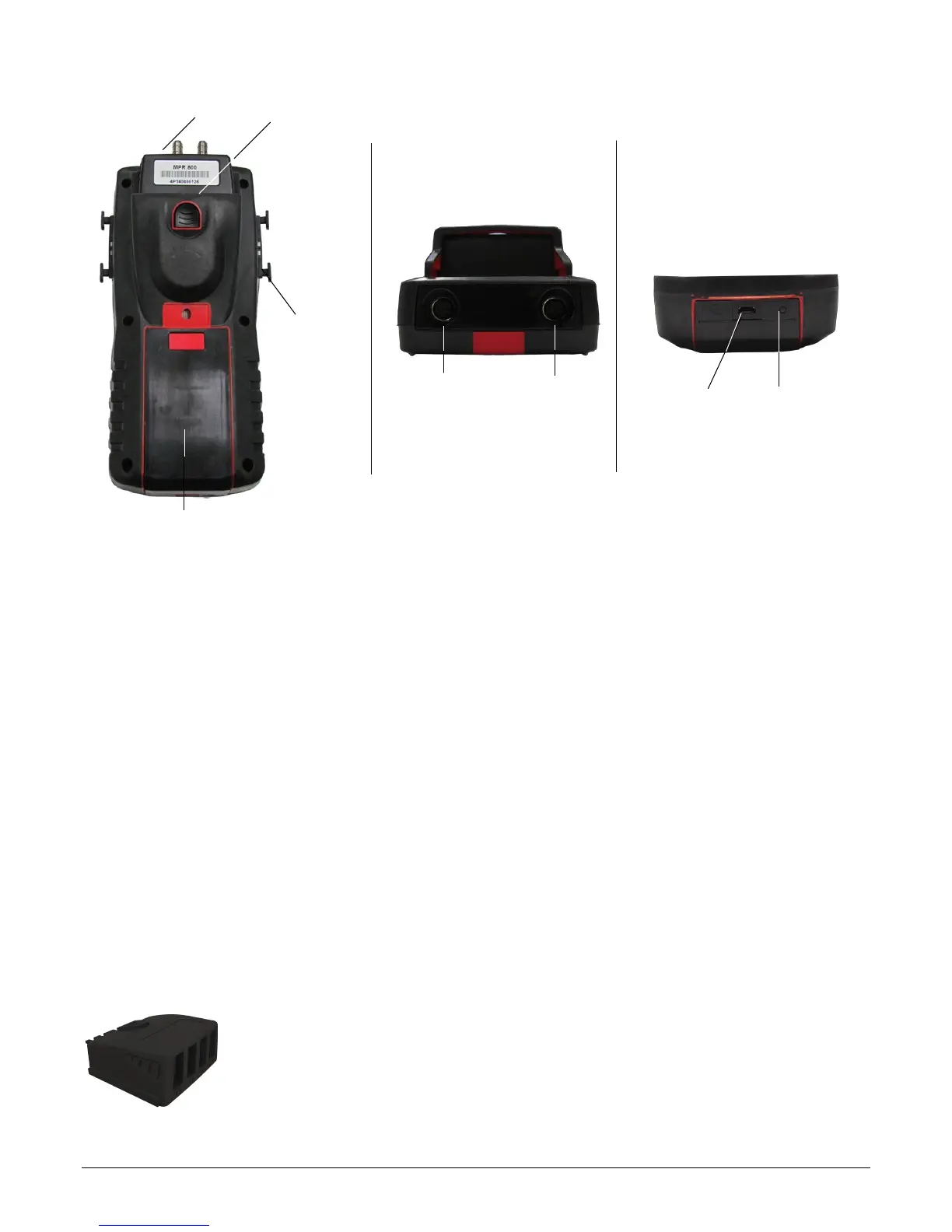

Light indicator for
battery charging
USB connection
+ power supply
C2 mini-DIN
connection
Battery
Module
Location to
remove the
module
Probe handle
C1 mini-DIN
connection
Allows to measure temperature on Tc1, Tc2, Tc3 and Tc4 channels with wired
thermocouples K, J, T or S probes ended with a male miniature connector
