Display
Value
d3.36
PD_CW
0: Double pulse (CW/CCW) mode
1. Pulse direction (P/D) mode
2. Incremental encoder mode
Note: To change this parameter, you
need to save it with d3.00, and restarts it
later.
1
N/A
Note: AB phase signals are not supported.

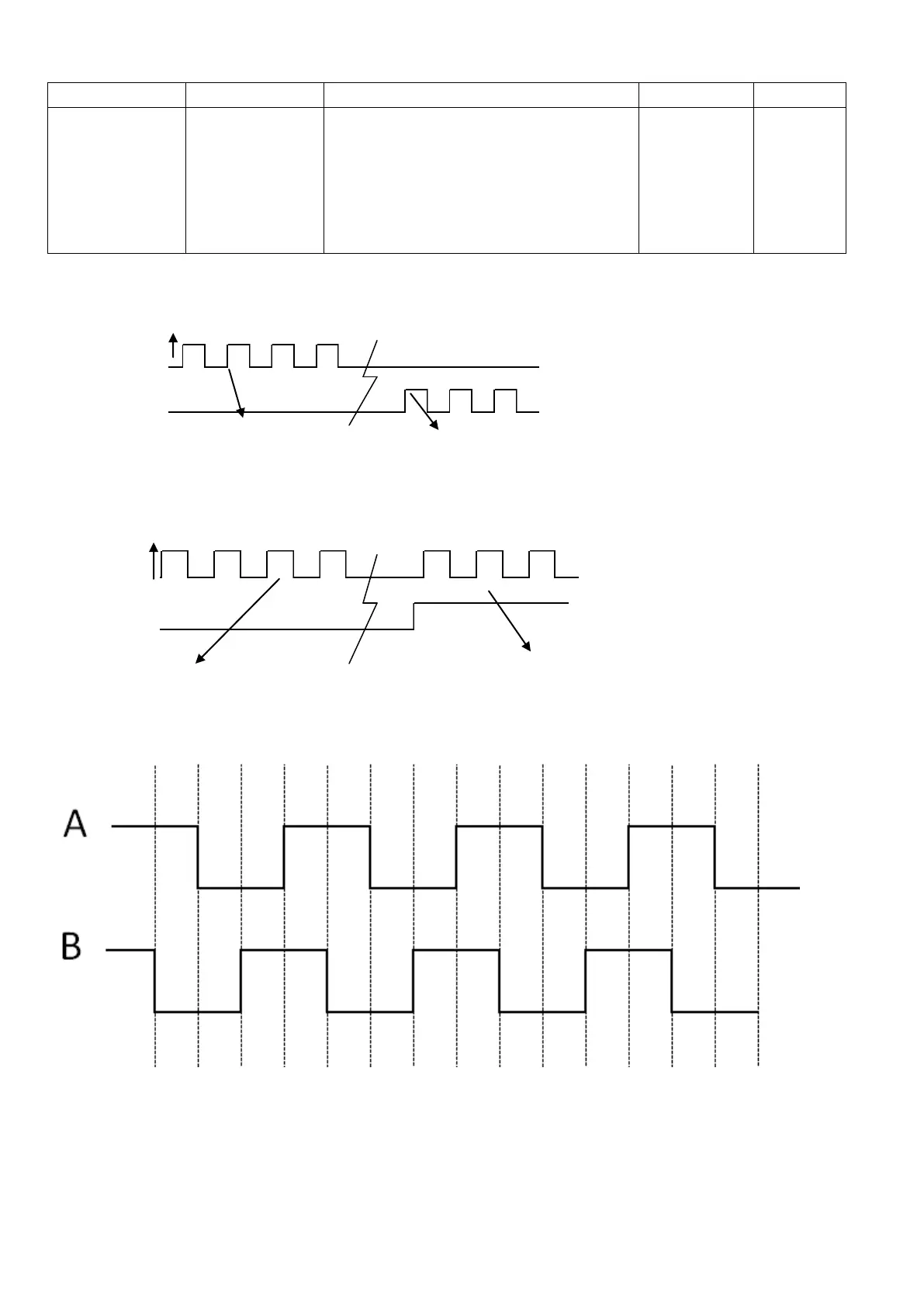

Double pulse (CW/CCW) mode (d3.36 = 0)
Pulse direction (P/D) mode (d3.36 = 1)
Incremental encoder mode (d3.36=2)
3. Parameters for pulse filtering coefficient
Forward rotation
Reverse rotation
Forward rotation
Reverse rotation
Effective on the
rising edge
Effective on the
rising edge
