LOGC31 Placement Guidelines for Model MDV31/39 (continued)

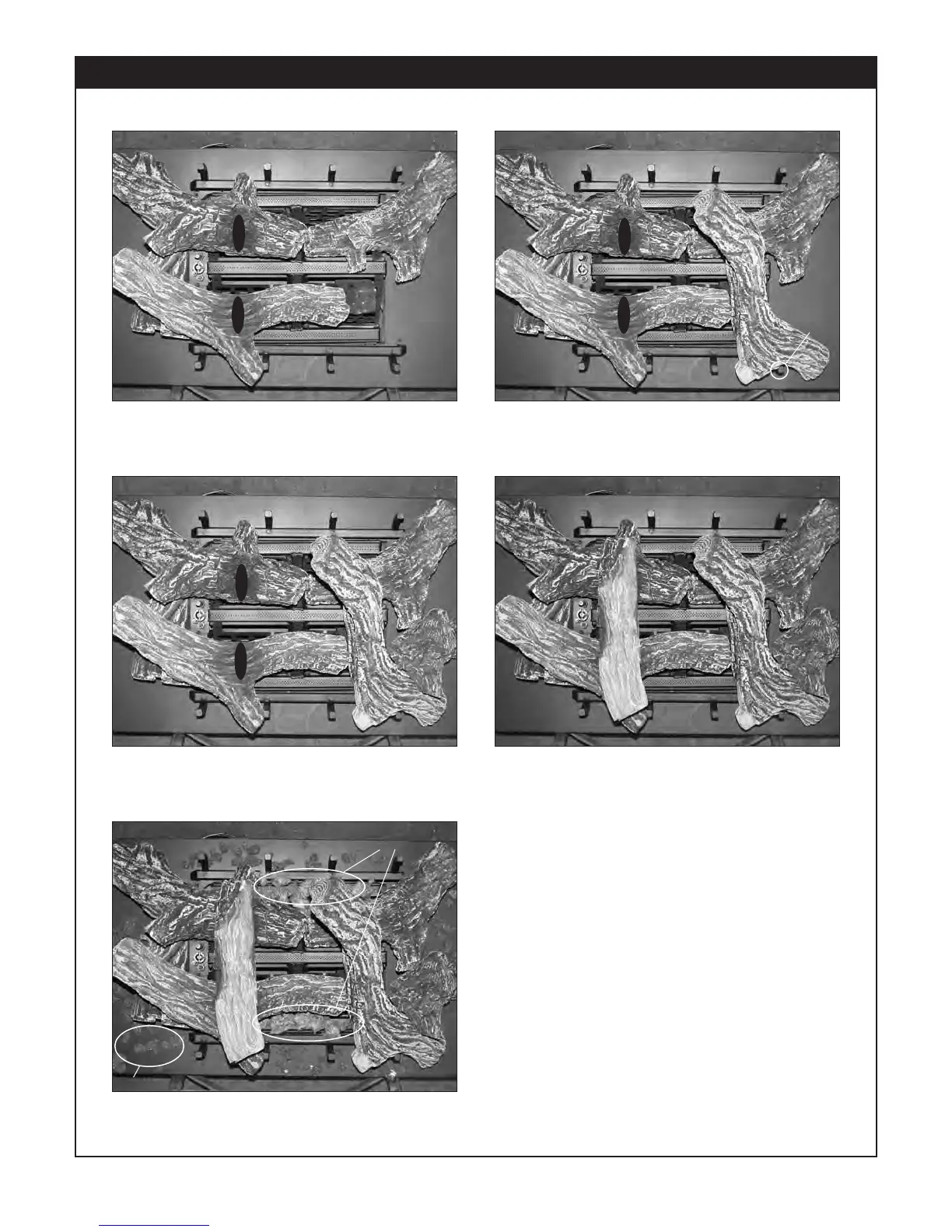

Step (4) Locate the two mounting holes on the bottom Log #4 and
position them onto Tabs 4a - 4b.
Step (5) Place ‘V’ area of Log#5 onto grate bar and rest log onto flat area
of Log #2.
Step (6) Position Log #6 up against Logs 4 and 5 and place flat area of
log on floor of fire box.
Step (7) Locate notched areas of Logs #2 and 3 and place Log #7 onto
these.
Step (8) Place embers onto ember plates and front burner tubes. Place
rocks onto bottom of firebox.
❹
❺
GRATE
BAR
❻
❼
EMBERS
ROCKS
To Next Page
