KIP 660 - Scanner Unit (KIP 660 Only); Scan Glass, Feed Roller, Guide Plate

Chapter 4 Maintenance 4-6
4. 2 Scanner Unit (KIP 660 only)
4. 2. 1 Scan Glass, Feed Roller, Guide Plate
It is recommended to clean each Scan Glass, Feeding Rollers and Guide Plates as the scan/copy
image may become defective if these parts are dirty.
1. Turn off the Printer.

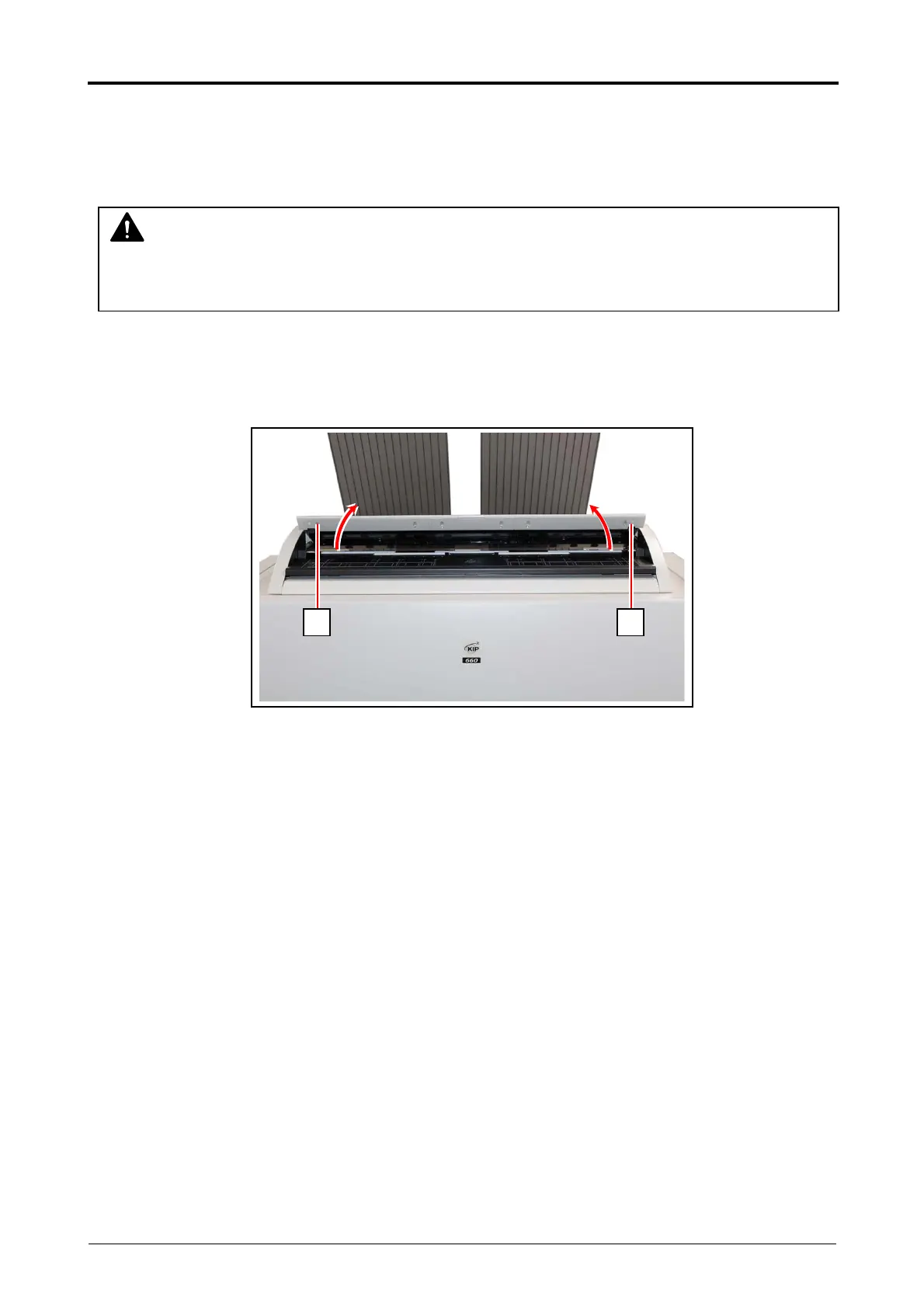

2. Lift up both sides (1) of the Scanner Unit.
NOTE
For ease of visual check, this document shows the Upper Unit fully open (not actual wide).
1 1
