2-2

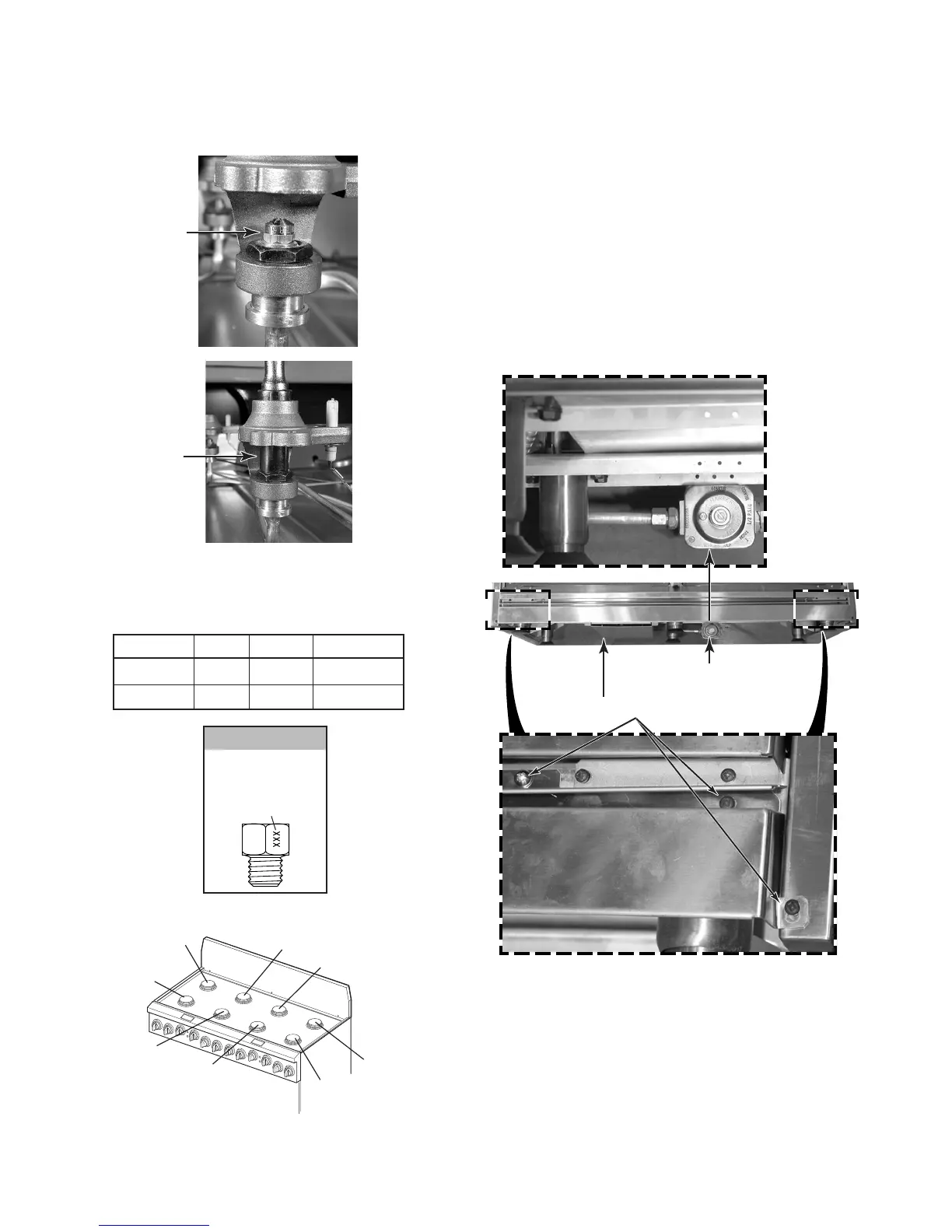

Gas Distribution Valve
d)Install the eight L.P. gas orifices in the
burners, as shown in the following
charts (do not overtighten them):
e)Place the natural gas orifices in the ori-
fice card holes.
3. To convert the gas distribution valve
for use with L.P. gas:
NOTE: The gas distribution valve on your
unit may look different than the one shown
in the procedure. However, the gas con-
version is the same.
a) Remove the bottom trim from the range.
b)Remove the three screws from each
end of the bottom trim and remove the
trim.
c) Use an 8 mm socket and carefully re-
move the orifice spud from each of the
four burners.
Surface
Burner
Orifice
8mm
Socket
3 Bottom Trim Screws
small
(red)
small
(red)
48" (121.92 cm) models
large
(blue)
large
(blue)
large
(blue)
large
(blue)
large
(blue)
large
(blue)
size stamp
or color
Rating Color Size Where Used
2,300 BTU red 0.70 mm small burners
12,000 BTU blue 1.10 mm large burners
burner orifice
small (red)
large (blue)
