5-4
OVEN TEMPERATURE SENSOR
Refer to page 4-16 for the procedure for ser-
vicing the oven temperature sensor.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect the oven temperature sensor
connector from the wiring harness.
3. Set the ohmmeter to the R x 100 scale.
4. Touch the ohmmeter test leads to the
oven temperature sensor connector pins.
Depending on the oven temperature, you
should obtain the corresponding resis-
tance reading, as shown in the following
chart:
Resistance Test (At The
Electronic Control)
NOTE: To test the oven temperature sensor
at the electronic control, perform the following
steps.
1. Disconnect the P7-4 (violet) and the P7-5
(violet) wire connectors from the elec-
tronic control.
2. Set the ohmmeter to the R x 100 scale.
3. Touch the ohmmeter test leads to the P7-
4 (violet) and the P7-5 (violet) wire con-
nectors. The meter should indicate ap-
proximately 1080 Ω at 70˚F (21˚C).
Temperature (˚F) Resistance (ohms)
32 1000
75 1100
250 1450
350 1650
450 1860
550 2050
650 2230
900 2700

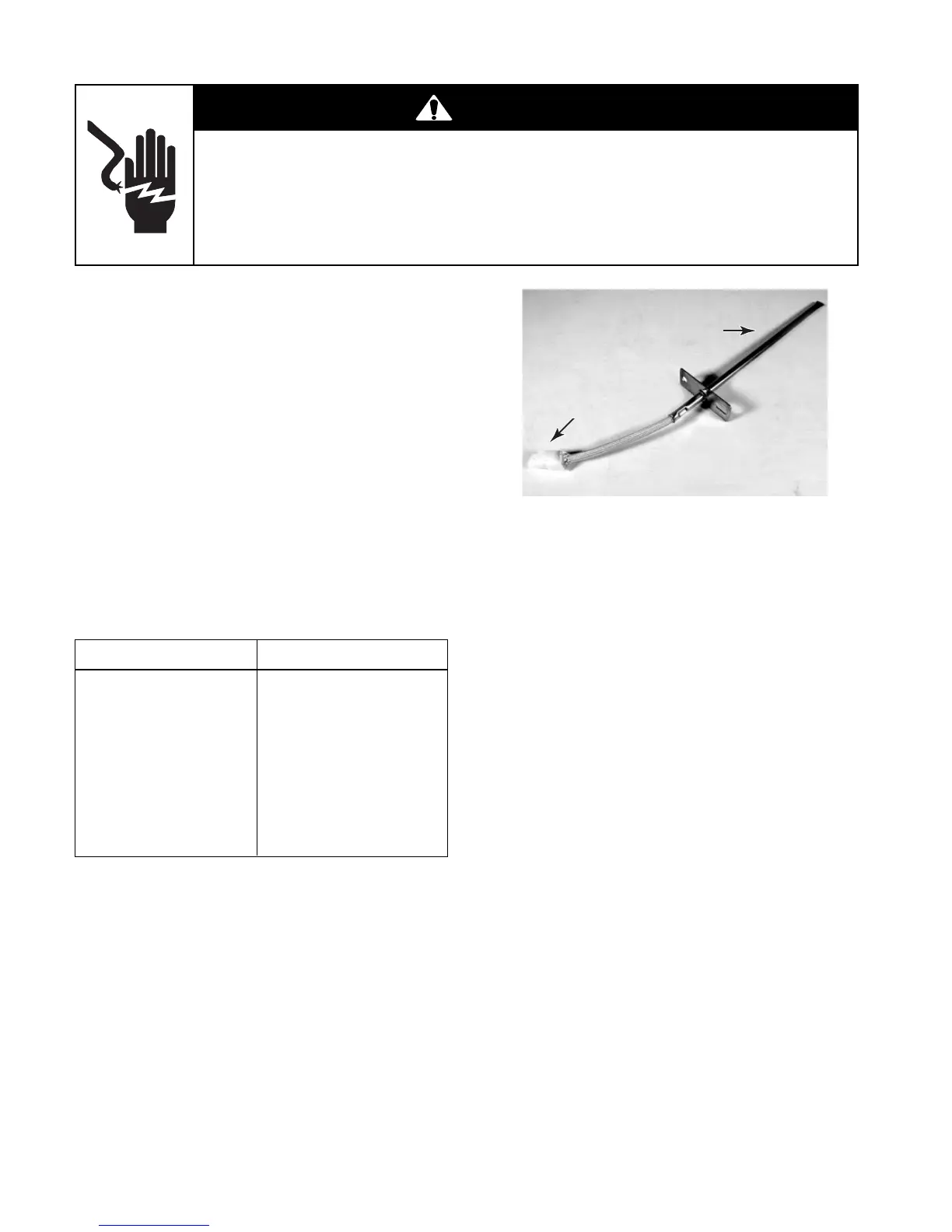

Connector
Oven
Temperature
Sensor
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
