4-23
1. Turn off gas supply and disconnect power
to the range.
2. Pull the range out of its mounting location
so that you can access the rear of the unit.
3. Remove the top and bottom braces and
the rear panel for the hidden bake element
that you are servicing (see page 4-17 for
the procedures).
4. Remove the four screws from the hidden
bake element cover flanges.
WARNING
Electrical Shock Hazard
Disconnect power before
servicing.
Replace all parts and panels
before operating.
Failure to do so can result in
death or electrical shock.
Fire Hazard
Shut off gas supply line valve
before servicing.
Check all gas line connections
and replace all parts and panels
before operating.
Failure to do so can result in
explosion, fire or other injury.
5. Bend the cover flanges down as far as
they will go.
6. Use a pen knife or a single-edged razor
blade and cut the insulation blanket, as
shown. Be sure to separate the insulation
blanket as cleanly as possible.
Cut Insulation Blanket
Bend Both Cover Flanges Down
Continued on the next page.

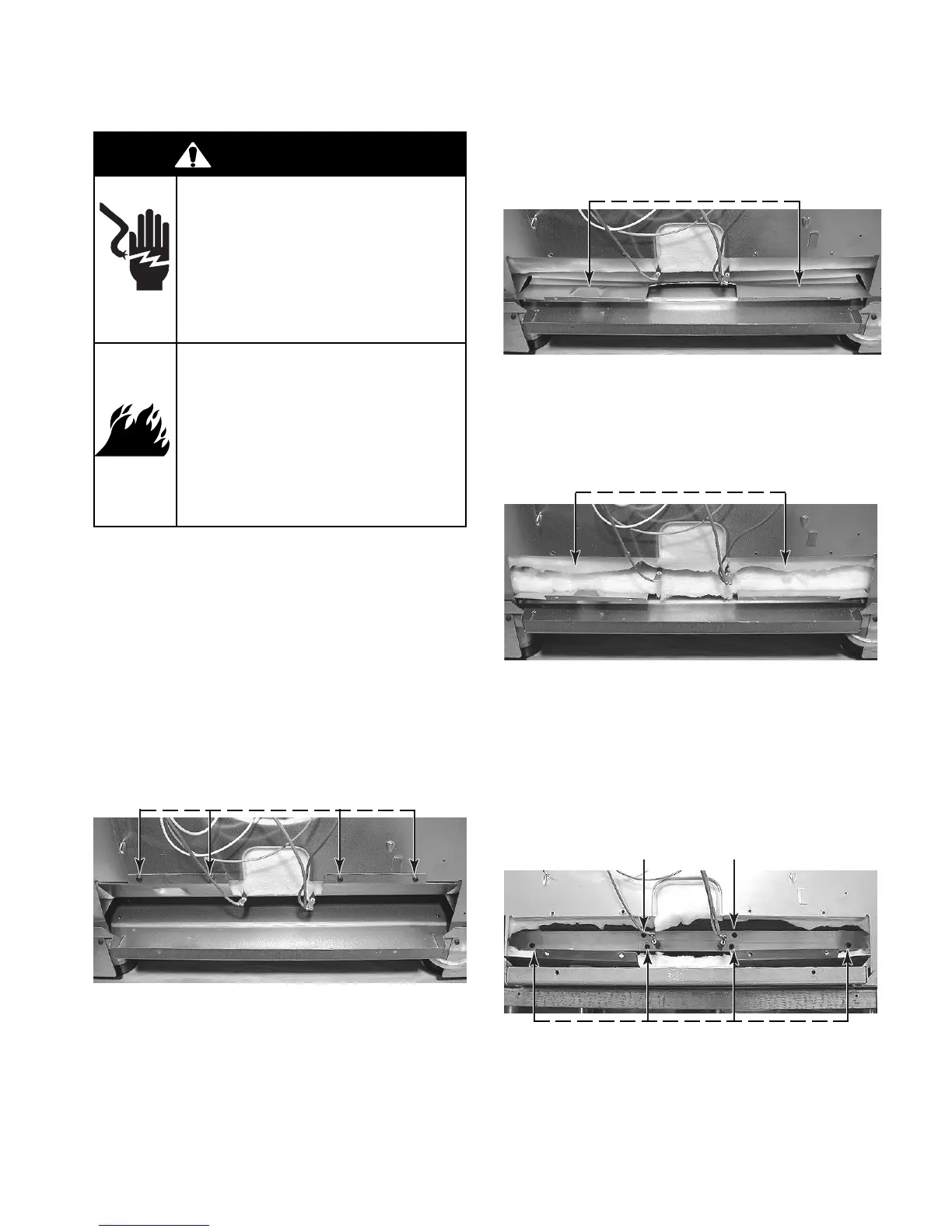

REMOVING A HIDDEN BAKE ELEMENT
Cover Flange Screws
7. Carefully move the upper and lower sec-
tions of the insulation blanket out of the
way so that you can access the hidden
bake element and its mounting bracket.
8. Remove the two hidden bake element
bracket screws and the four mounting
bracket screws.
Remove 2 Screws
Remove 4 Screws
To Next Page
