5-6

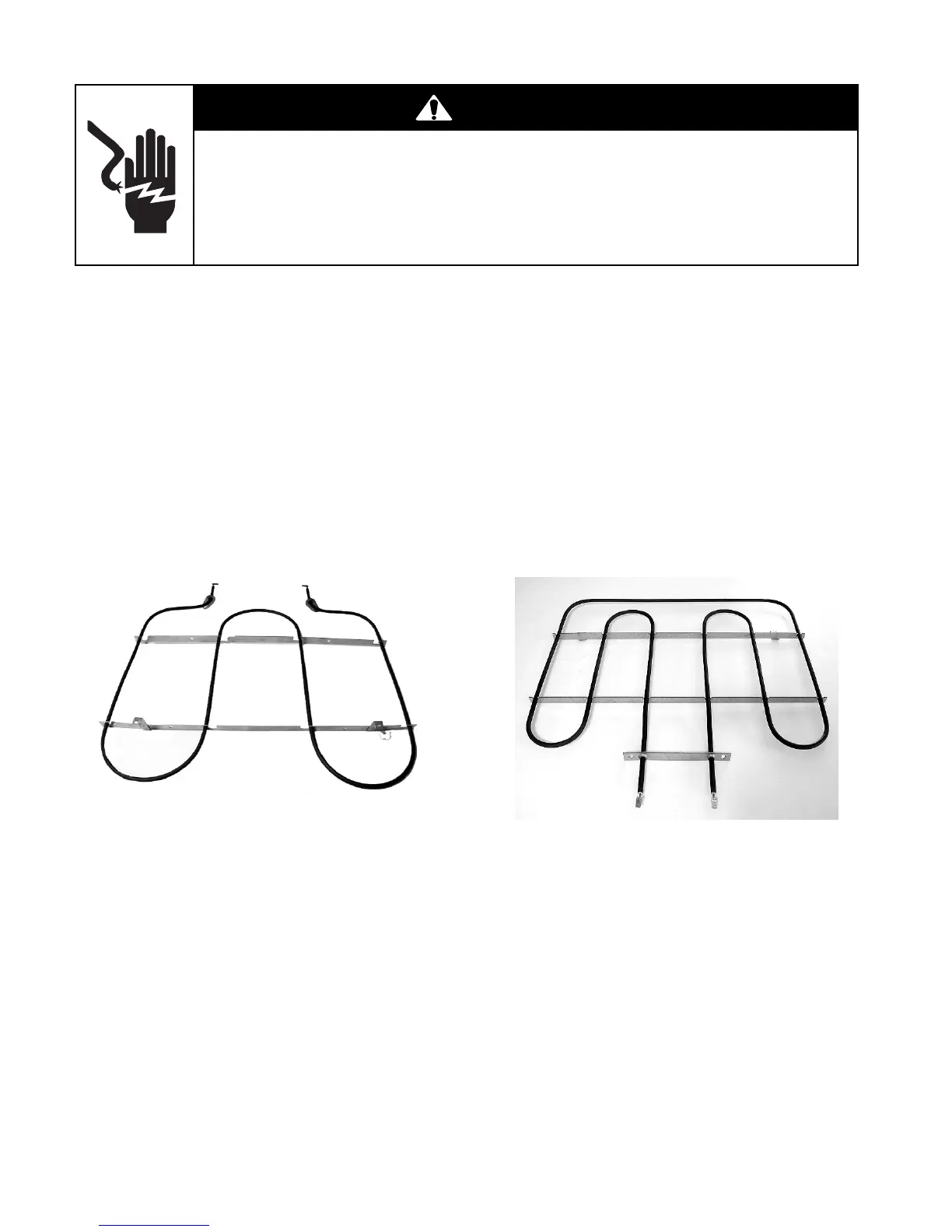

BROIL ELEMENT
Refer to page 4-15 for the procedure for ser-
vicing a broil element.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect the wires from the broil ele-
ment terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the broil
element terminals. The meter should indi-
cate 17 to 20 Ω.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
HIDDEN BAKE ELEMENT
Refer to page 4-23 for the procedure for ser-
vicing a hidden bake element.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect the wires from the hidden bake
element terminals.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the
hidden bake element terminals. The meter
should indicate 25 to 30 Ω.
