5-3

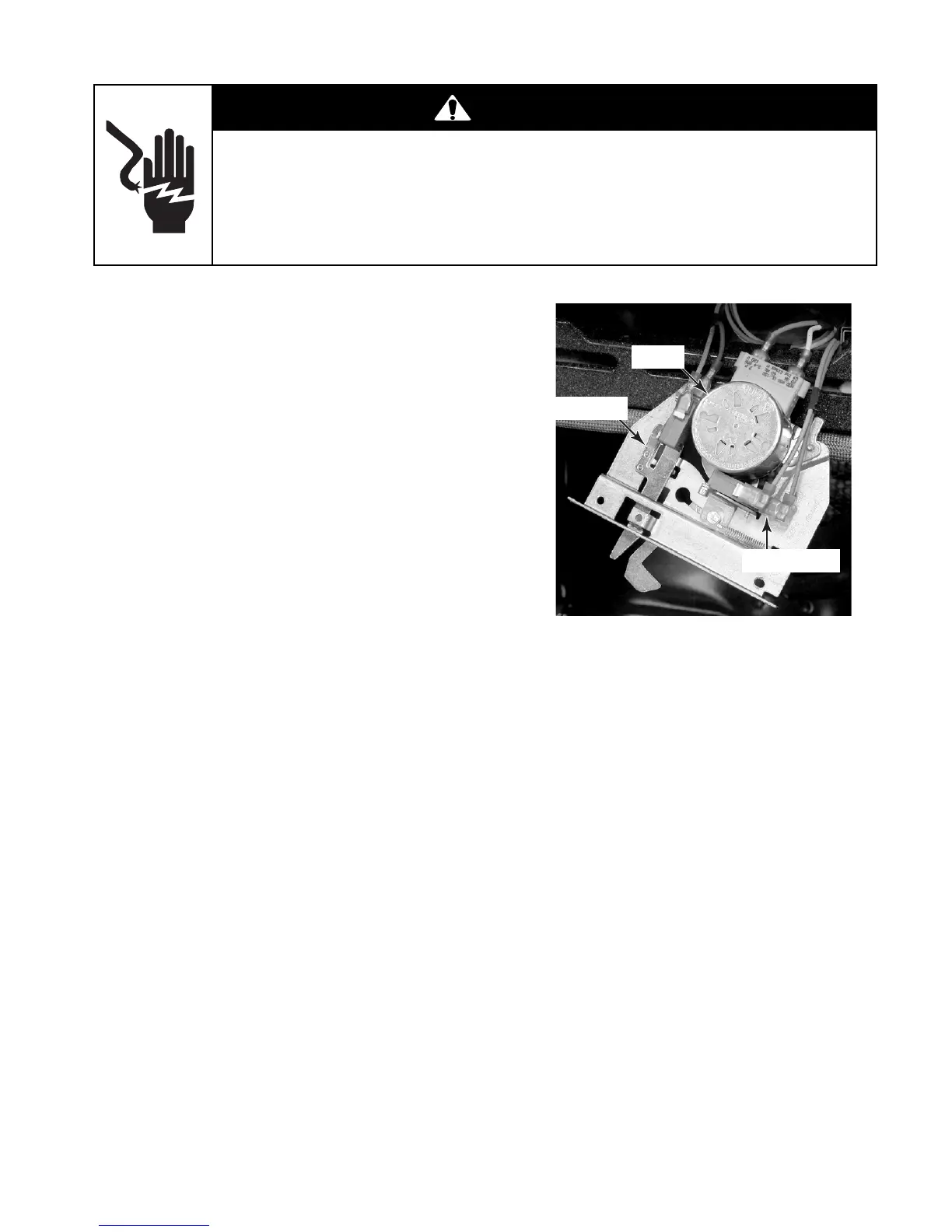

OVEN DOOR LATCH ASSEMBLY
Refer to page 4-10 for the procedure for ser-
vicing the oven door latch assembly.
1. Turn off gas supply and disconnect power
to the range.
2. Disconnect a wire from each of the two
switches and from the motor.
3. Set the ohmmeter to the R x 1 scale.
4. To test the door switch, touch the ohm-
meter test leads to the switch terminals.
The meter should indicate a closed circuit
(0 Ω) with the door latch in the “unlocked”
position, and an open circuit (infinity ∞)
with the door latch in the “locked” position.
5. To test the latch switch, touch the ohm-
meter test leads to the switch terminals.
The meter should indicate a closed circuit
(0 Ω) with the door latch in the “locked”
position, and an open circuit (infinity ∞)
with the door latch in the “unlocked” posi-
tion.
6. To test the motor:
a) Set the ohmmeter to the R x 100 scale.
b) Touch the ohmmeter test leads to the
motor terminals. The meter should in-
dicate 2450 Ω.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
Door Switch
Motor
Latch Switch
