TOOLS NEEDED
Pliers•
Phillips screwdriver•
Flat-blade screwdriver•
3/16" and 1/4" nut drivers or hex sockets•
Measuring tape or ruler•
1 1/2 hole saw bit•
10" adjustable wrench•
Utility knife•
Level•
Electric drill•
1/8" drill bit•
Security T-20 TORX®† driver (if installing •
custom front panels)
PARTS NEEDED
A. 60" (152.4 cm) exible water supply line
B. Zip tie
C.2 appropriate sized UL listed wire connectors
A
B
C

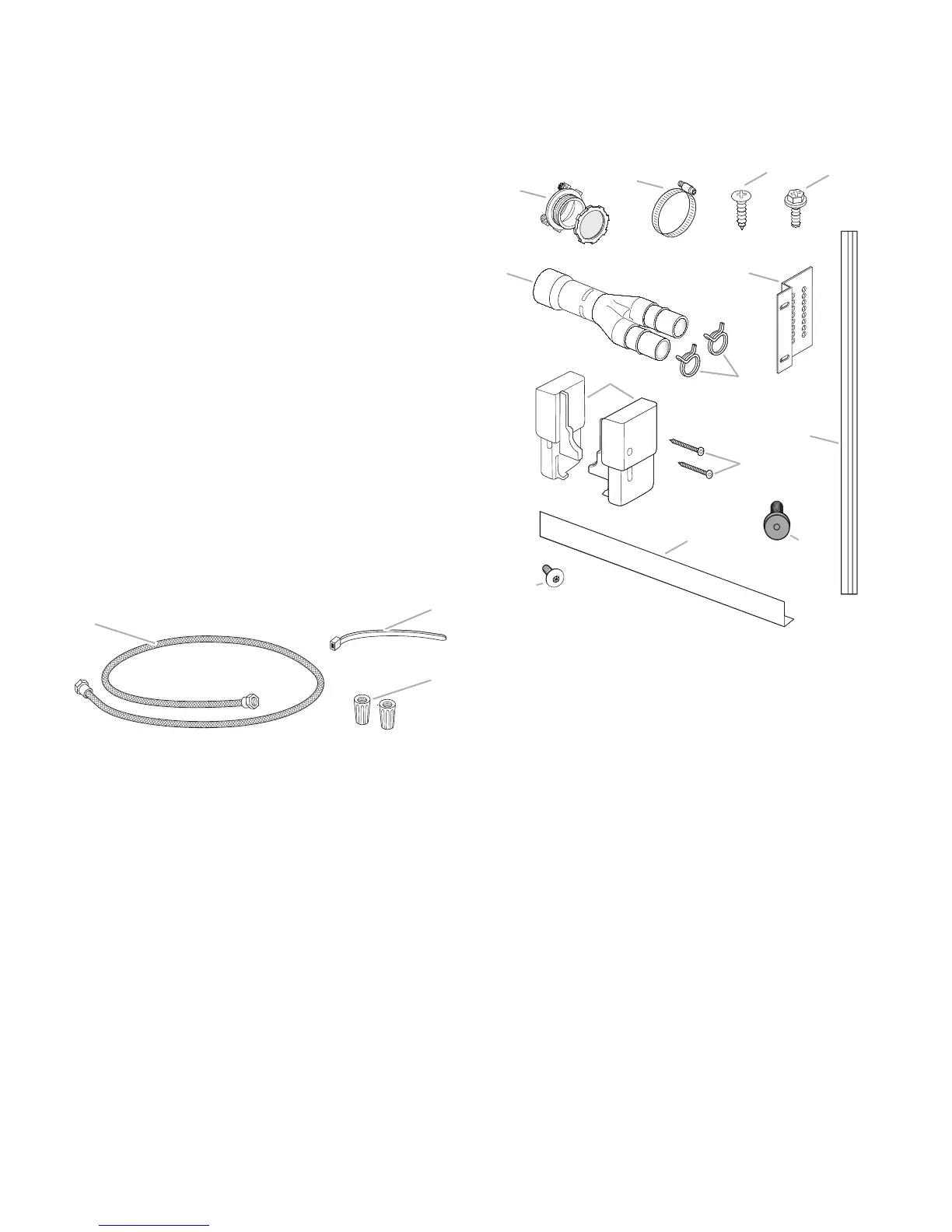

PARTS SUPPLIED
Check that all parts are included.
A.
" UL listed strain relief
B. 1.25" hose clamp
C. 8 mounting bracket screws
D. 4 unit mounting screws
E. Y drain connector
F. 4 mounting brackets
G. Drain connector spring
clamps
H. 2 trim strips
I. To e kick brackets
J. 2 toe kick bracket screws
K. To e kick trim
L. 2 panel fasteners (on some
models)
M. 10 TORX
®†
screws (on some
models)
A
B
C
D
E F
H
G
I
J
K
L
M
Gather the required tools and parts before start-
ing installation. Read and follow the instructions
provided with any tools listed here.
†®TORX is a registered trademark of Textron
Innovations Inc.
