4-1

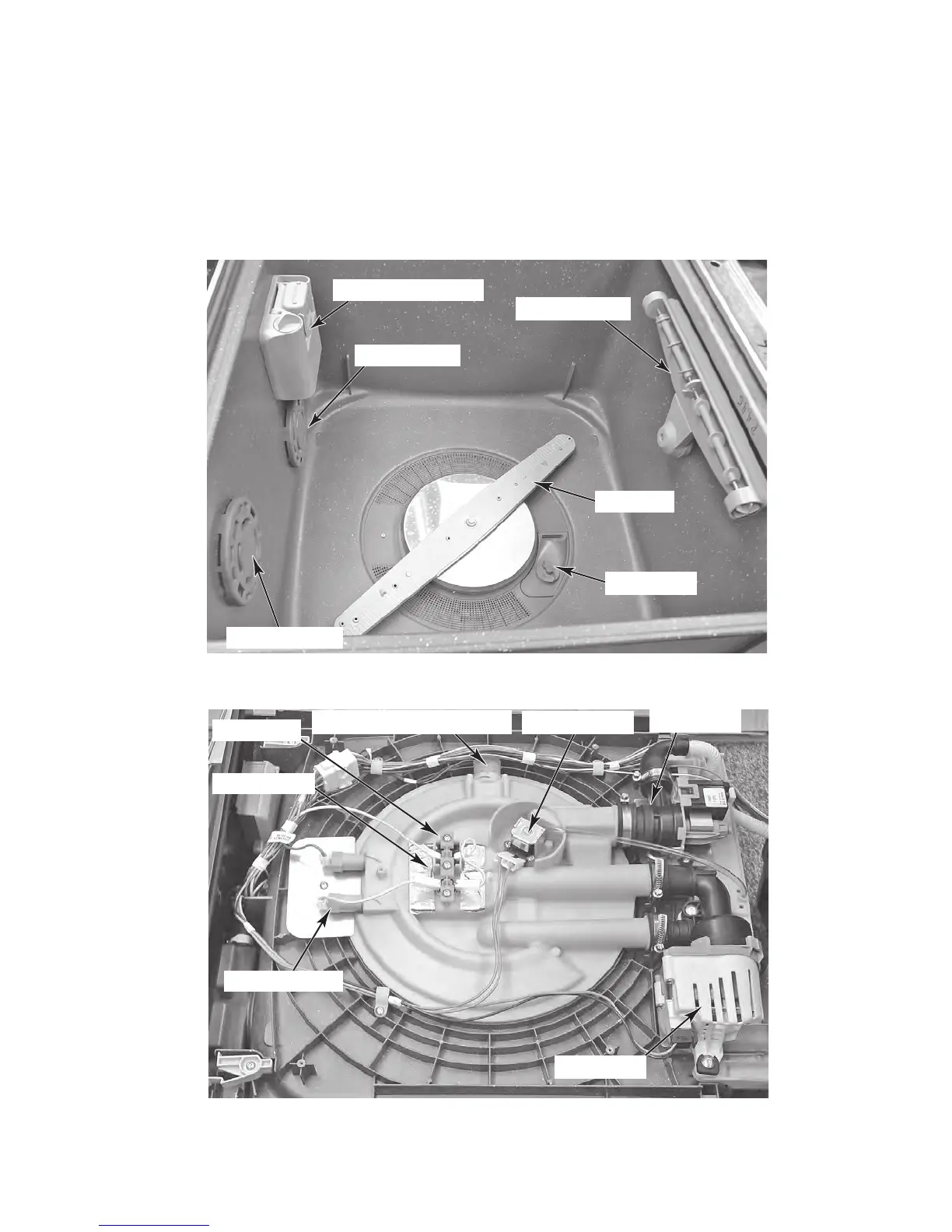

COMPONENT LOCATIONS
COMPONENT ACCESS
This section instructs you on how to service each component inside the KitchenAid 2008 Drawer
Dishwasher.
IN-TUB COMPONENTS
TUB BOTTOM COMPONENTS
Upper Manifold
Air Inlet Bezel
Coarse Cup
Dispenser Assembly
Wash Arm
Air Outlet Bezel
Thermostat
Thermal Fuse
Heater Element
Turbidity Sensor/Thermistor
Drain Pump
Fine Drain Coil
Wash Pump
Continued on the next page.
