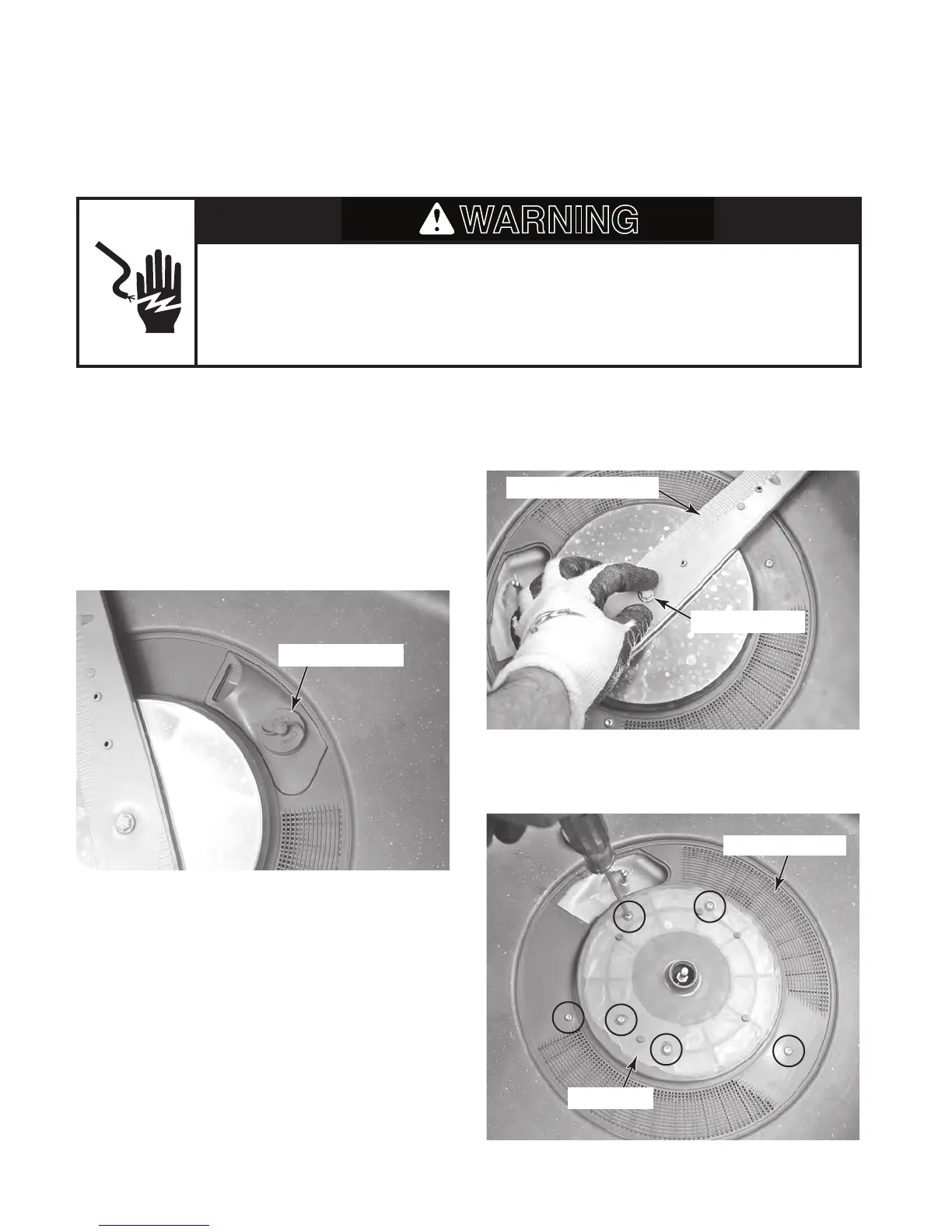

IN-TUB COMPONENTS
REMOVING THE COARSE CUP, WASH ARM,
AND FILTER FLOW PLATE
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug dishwasher or disconnect power.
2. Turn off the water supply to the dish-
washer.
3. Remove the silverware basket and dish
racks.
4. To remove the coarse cup:
a) Unscrew and remove the coarse cup
cap.
b) Lift out the coarse cup. NOTE: The
coarse cup is comprised of two “slot-
ted” pieces that can be separated for
cleaning.
5. To remove the wash arm:
a) Unscrew and remove the wash arm cap.
b) Lift out the wash arm.
6. To remove the Filter Flow plate, remove
the retaining screws and lift the plate out
of the tub.
Coarse Cup Cap
Wash Arm Cap
Wash Arm Assembly
Filter Flow Plate
Mesh Filter
