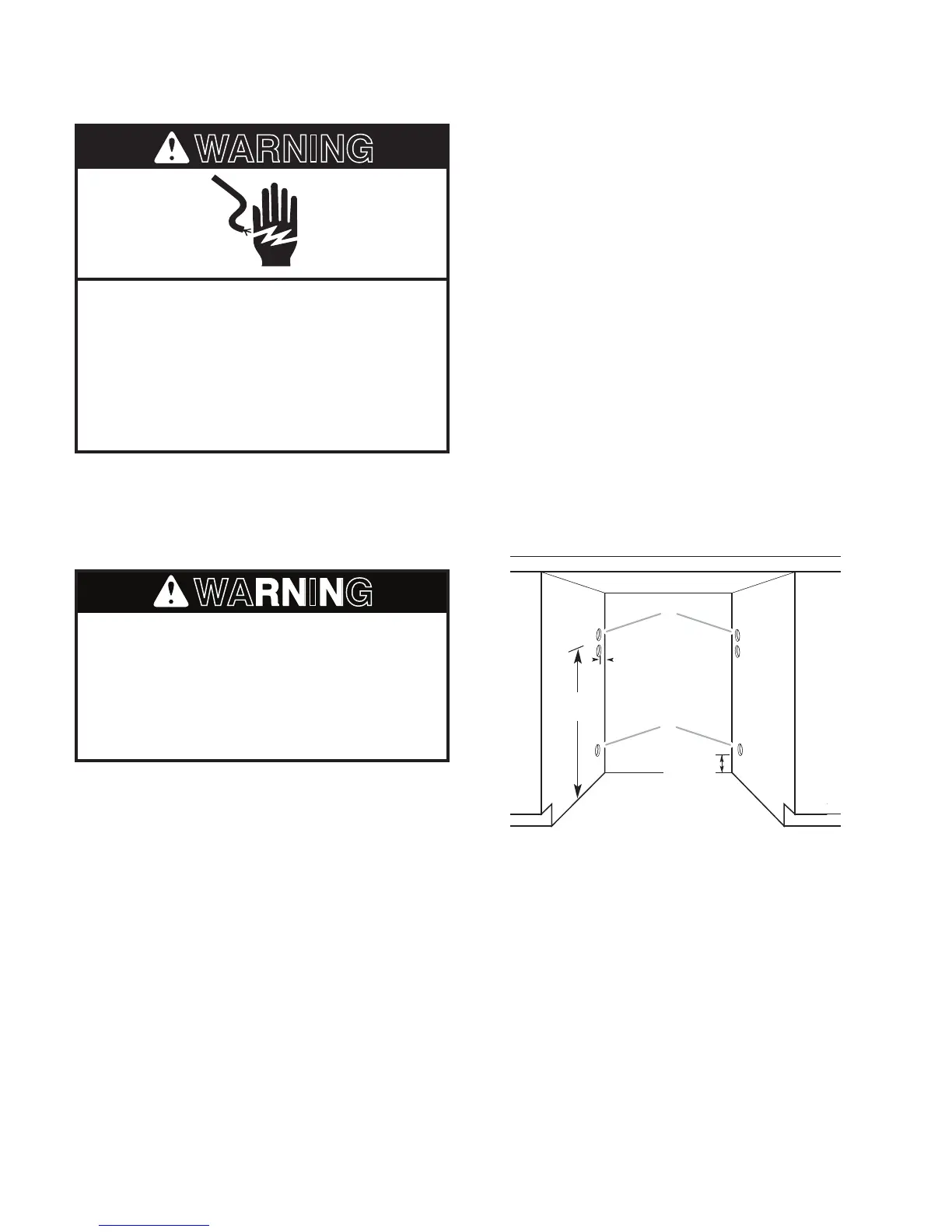

INSTALLATION INSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse
box or circuit breaker box before in-
stalling dishwasher.
Failure to do so can result in death or
electrical shock.
1. Disconnect power.
2. Turn off water supply.
Excessive Weight Hazard
Use two or more people to move and
install oven.
Failure to do so can result in back or
other injury.
1. Read valuable information on exterior of
shipping box before opening.
2. Remove shipping materials, tape and
protective film from the dishwasher.
Remove parts package from inside the
dishwasher.
Unpack Dish Drawer
Prepare Cabinet Opening
1. To ensure minimum clearance dimensions
exist:
Measure the distance from the cabinet •
countertoptotheoorandensure33
3/4" (85.7 cm) minimum height.
Measure the distance from the front of •
the cabinet to the back wall and ensure
24" (61 cm) minimum depth.
Measure the distance from the left-hand •
side to the righthand side of opening
and ensure 23 1/2" (59.7 cm) minimum
width.
2. Drill 1 1/2" (3.8 cm) diameter holes for drain
and water hoses and electrical wiring as
shown. Holes should be placed 1/2" (1.3
cm) from back wall.
A. Choose left-hand or right-hand drain and water hose route.
B. Choose left-hand or right-hand electric wire route.
A
B
25"
(63.5 cm)
1/2"
(1.3 cm)
8"
(20.3 cm)
