Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

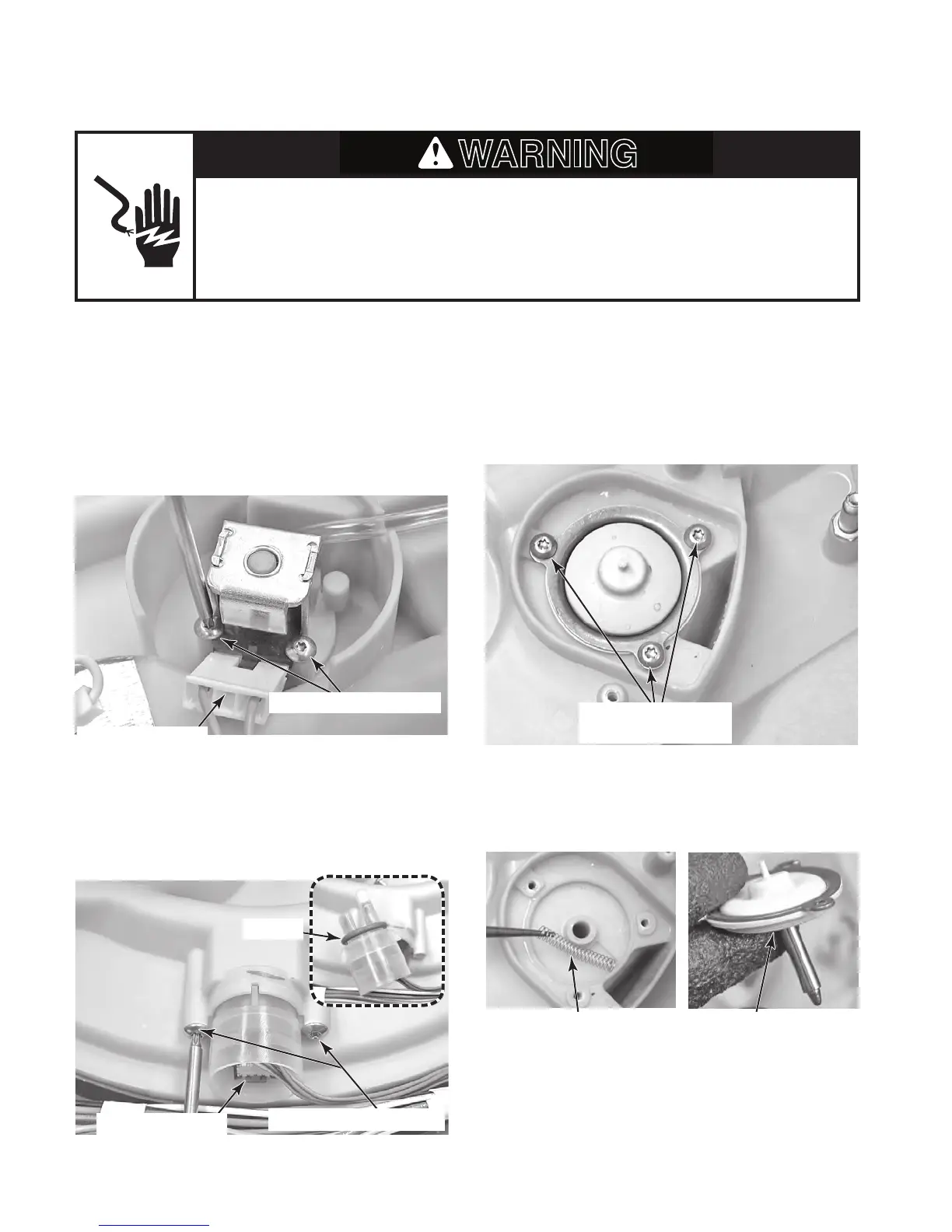

REMOVING THE FINE DRAIN COIL AND TURBIDITY SENSOR / THERMISTOR
1. Unplug dishwasher or disconnect power.
2. Turn off the water supply to the dishwasher.
3. Remove the tub and bottom cover (see
pages 4-6 & 4-7).
4. Disconnect the wiring connector from the
fine drain coil, remove the screws, and
remove the coil.
6. Access and remove the coarse cup and
filter flow plate (see “Removing The
Coarse Cup, Wash Arm, And Filter Flow
Plate,” page 4-4).
7. Remove the screws from the compres-
sion ring and fine drain.
8. Remove the fine drain seal and plunger,
and the plunger spring. You may need to
use a small screwdriver to remove the fine
drain spring.
Fine Drain Coil Screws
Wiring Connector
O-Ring
Compression Ring
& Fine Drain Screws
Fine Drain Seal
& Plunger
Plunger Spring
Turbidity Sensor Screws
5. Disconnect the wiring connector from the
turbidity sensor/thermistor, remove the
screws, and remove the sensor. NOTE:
There is an O-ring on the turbidity sensor
housing.
Wiring Connector
