5-2
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
WARNING
DETERGENT AND RINSE AID
DISPENSER
Refer to page 4-12 for procedure for servicing
the detergent and Rinse Aid dispenser.
1. Unplug dishwasher or disconnect power.
2. Disconnect the wire connectors from the
DISPENSER on dispenser.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to detergent
dispenser solenoid terminals. The meter
should indicate approximately 2.84 kΩ.
Note: There is no test for Rinse Aid
Dispenser.

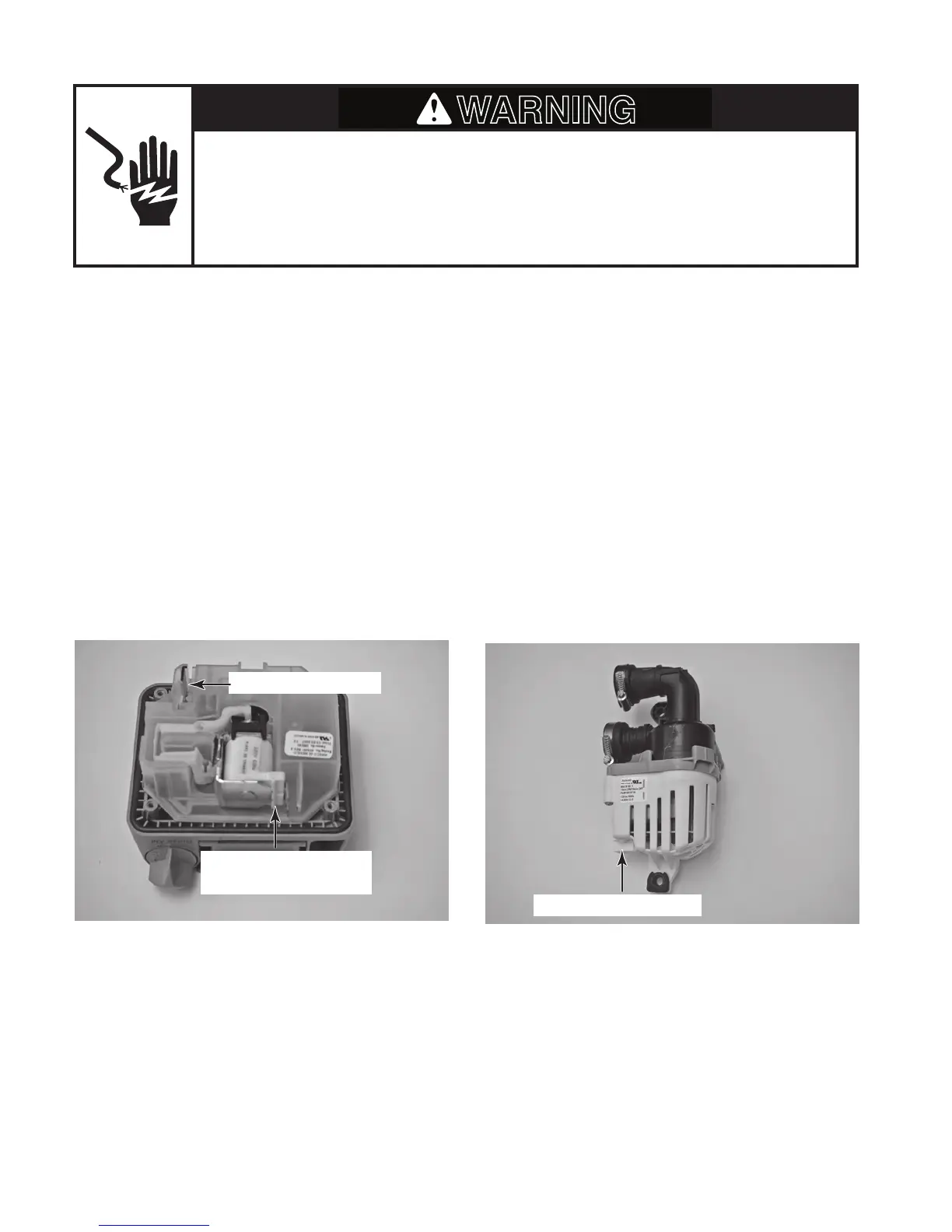

Detergent Dispenser
Solenoid Terminals
WASH PUMP MOTOR
Refer to page 4-7 for procedure for servicing
the wash pump motor.
1. Unplug dishwasher or disconnect power.
2. Disconnect the wire connectors from the
WASH PUMP MOTOR terminals on wash
pump motor.
3. Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to detergent
wash pump motor terminals. The meter
should indicate open circuit because of
the control board on motor.
Wash Motor Terminals
Rinse Aid Terminals
