4-9

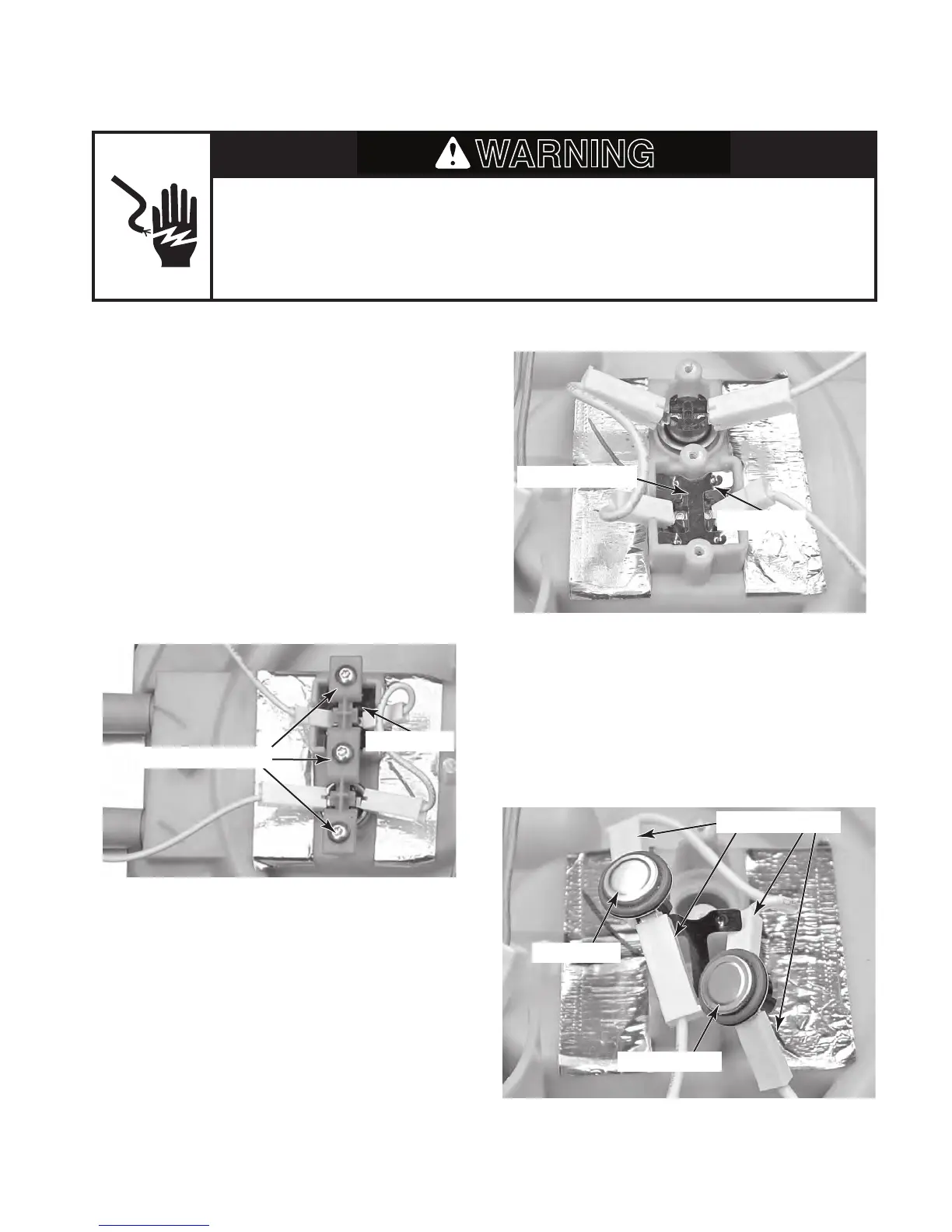

REMOVING THE THERMOSTAT, THERMAL FUSE, AND HEATER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug dishwasher or disconnect power.
2. Turn off the water supply to the dishwasher.
3. Access and remove the coarse cup and
filter flow plate (see “Removing The
Coarse Cup, Wash Arm, And Filter Flow
Plate,” page 4-4).
4. Remove the tub and bottom cover (see
pages 4-6 & 4-7).
5. To remove the thermostat and thermal
fuse:
a) Remove the three retainer screws from
the thermostat bracket to remove the
thermal fuse and thermostat.
Retainer Screws
b) Remove the spring retainer.
Spring Retainer
c) Lift the thermostat and thermal fuse
out of the holder, and disconnect the
wire connectors from the terminals.
NOTE: There are O-rings on the ther-
mostat and thermal fuse.
Wire Connectors
Thermostat
Thermal Fuse
Continued on the next page.
NOTE: The thermostat is in a walled re-
ciever and has an extra spring pressure
clip.
Thermostat
Thermostat
To Next Page
