4-15
CABINET - MOUNTED COMPONENTS

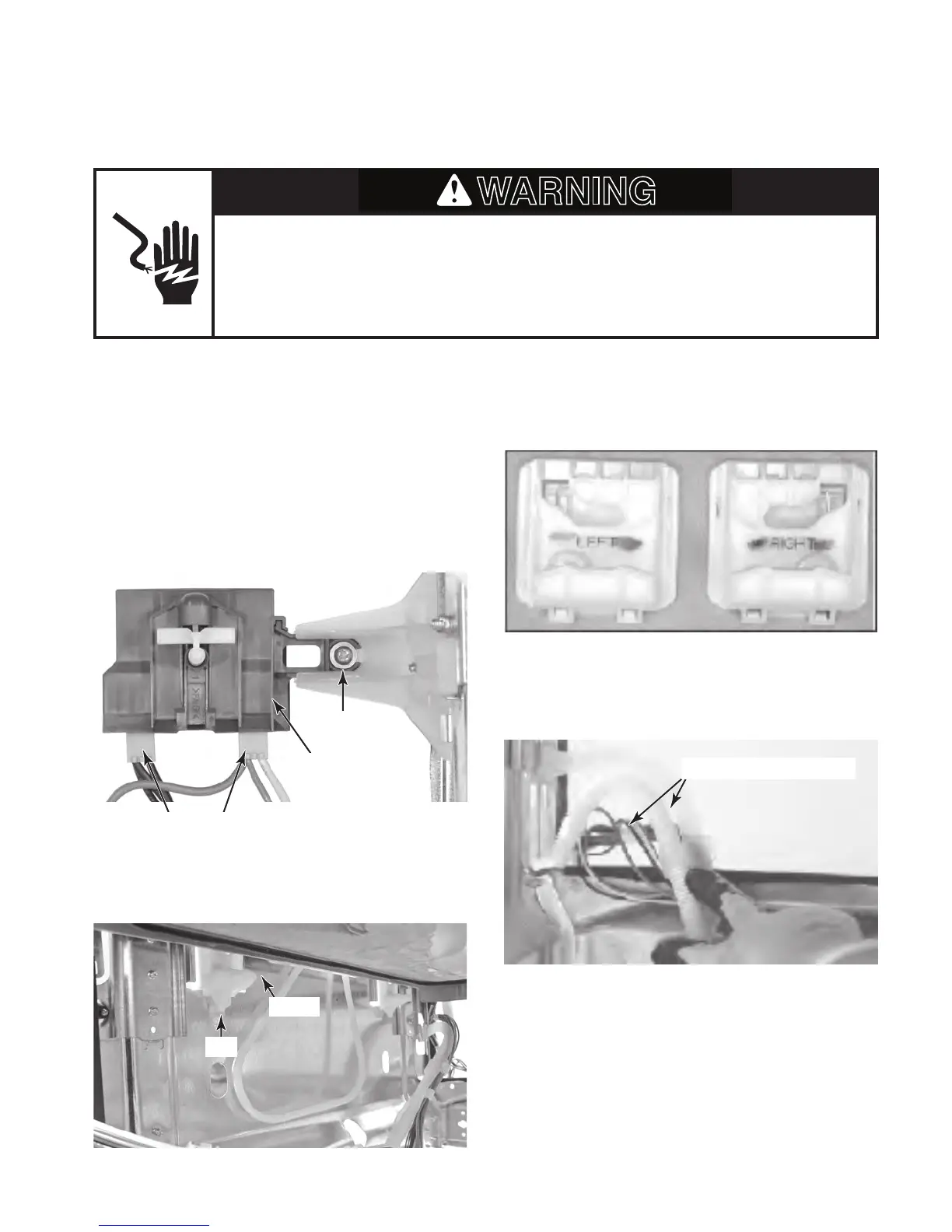

REMOVING THE LINE BREAK, TUB LID, AND SLIDER ASSEMBLIES
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
1. Unplug dishwasher or disconnect power.
2. Turn off the water supply to the dishwasher.
3. To remove the line break:
a) Remove the drawer from the unit.
b) Disconnect the wiring connectors from
the line break terminals.
c) Loosen the screw and slide the line
break out of the holder.
4. To remove the tub lid and slider as-
semblies:
a) Lift the tab at the bottom of each slider.
Wiring Connectors
Line Break
Tab
Slider
Screw
b) Pull the sliders down to release them and
remove the sliders from the cabinet.
NOTE: The left and right lid slider assem-
blies are marked “LEFT” and “RIGHT.”
c) Push the wiring harness and hose as-
sembly back out of the way so that
you can lower the left side of the lid
assembly.
Wiring Harness & Hose
Continued on the next page.
